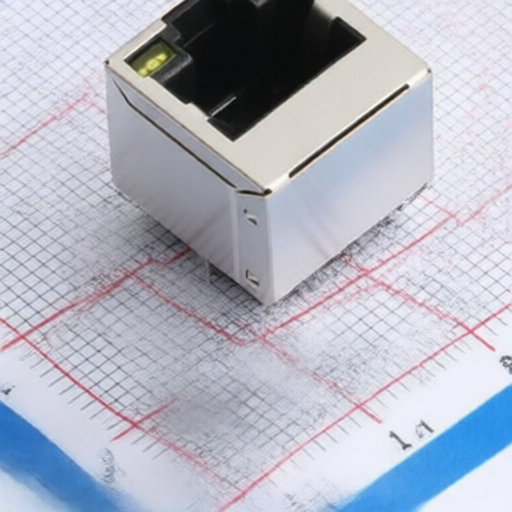

NETWORK CONNECTOR RCH RC00124 Featuring RJ45 RJ11 Socket PA46 Black Housing and Phosphor Copper Pins
NETWORK CONNECTOR RCH RC00124 Featuring RJ45 RJ11 Socket PA46 Black Housing and Phosphor Copper Pins
Specifications
Description :
Through Hole Modular/Ethernet Connector Jacks RoHS
Mfr. Part # :
RC00124
Package :
Through Hole
Model Number :
RC00124
Description

Product Overview

This specification applies to NETWORK CONNECTORS used in electronic products. The connector series includes RJ45/RJ11 socket types. It is designed for reliable electrical connections with specific performance ratings for voltage, current, and resistance. The product is manufactured by Wenzhou Ruichuan Electronics Co., Ltd.

Product Attributes

  • Brand: Wenzhou Ruichuan Electronics Co., Ltd.
  • Product Series: RJ45/RJ11 Socket
  • Model Type: NETWORK CONNECTOR
  • Version: AO
  • Material (Housing): PA46 (Black)
  • Material (Pin): Phosphor Copper (=0.46mm, Au=FU")
  • Material (LED): Green-Yellow (Resin/FE)
  • Material (Shield Shell): Brass (Nickel Plated 30-50U", Salt Spray 24H)

Technical Specifications

Parameter Requirement Value Manufacturer Specification Value Manufacturer Test Value
Basic Specification
Hole Count 1 1 -
Angle 180 180 -
Material Specification
Housing PA46 (Black) Recycled Material 15% PA46 (Black) Recycled Material 15% -
Round Pin Phosphor Copper =0.46mm (Au=FU") Salt Spray 8H Phosphor Copper =0.46mm (Au=FU") Salt Spray 8H -
LED (Light) Green-Yellow (Resin/FE) Salt Spray 8H Green-Yellow (Resin/FE) Salt Spray 8H -
Shield Shell Brass (Nickel Plated 30-50U" Salt Spray 24H) Brass (Nickel Plated 30-50U" Salt Spray 24H) -
Structural Dimensions
Key Dimension 1 16.650.15mm 16.650.15mm 16.61
Key Dimension 2 15.90.15mm 15.90.15mm 15.91
Key Dimension 3 11.430.15mm 11.430.15mm 11.34
Key Dimension 4 16.450.15mm 16.450.15mm 16.45
Key Dimension 5 3.20.20mm 3.20.20mm 3.25
Normal Dimension 6 2.540.15mm 2.540.15mm 2.57
Normal Dimension 7 8.890.15mm 8.890.15mm 8.87
Normal Dimension 8 3.050.15mm 3.050.15mm 3.06
Normal Dimension 9 4.060.15mm 4.060.15mm 4.05
Normal Dimension 10 15.70.15mm 15.70.15mm 15.71
Normal Dimension 11 1.60.1mm 1.60.1mm 1.61
Electrical Performance
Rated Voltage 125V 125V -
Rated Current 1.5A 1.5A -
Contact Resistance <0.03 <0.03 -
Insulation Resistance >100 M (DC500V, 1min) >100 M (DC500V, 1min) -
Withstand Voltage AC500V (1min) AC500V (1min) -
Reliability
Insertion Force 330N 330N Average: 12.5N
Extraction Force 330N 330N Average: 10.2N
Insertion/Extraction Cycles 750 cycles (8-10 times/min, no load) 750 cycles (8-10 times/min, no load) -
Heat Resistance Test after 48h at 852, then 30min in normal environment Test after 48h at 852, then 30min in normal environment -
Solder Heat Resistance 230, 5S 230, 5S -
Salt Spray 8 hours (35, 5%, PH6.57.2) 8 hours (35, 5%, PH6.57.2) -
Operating Temperature -4070 -4070 -
Storage Temperature & Humidity Temp: -5~30; Humidity: 20%~75% Temp: -5~30; Humidity: 20%~75% -
Storage Period 0.8 years (Clean, ventilated, no corrosive gas, off ground) 0.8 years (Clean, ventilated, no corrosive gas, off ground) -
General Specification (from Network Connector)
Current Rating 1.5A DC / Contact, 20mA DC for LED signals - -
Voltage Rating 125V AC / Contact, 2.0 volts DC for LED signals - -
Operating Environment Standard Temp -20+70 - -
Operating Environment Industrial Temp -40+85 (According to customer request) - -
Operating Environment Humidity 20%70% - -
Storage Environment Temperature -40 to +85 - -
Storage Environment Humidity 20%70% - -
Test Environment Temperature +20+30 - -
Test Environment Humidity 25%65% - -
Test Environment Atmospheric Pressure 86-106KPA - -
Electrical Efficiency
Withstand Voltage 500V (AC 50/60Hz RMS) for 1 min, Leakage current 0.5mA MAX - -
Insulation Resistance 100 M MIN (Using a 500 volts DC insulation resistance meter) - -
Contact Resistance 30 M MIN (across a pair of mated contacts, 20mV, 100mA max) - -
Mechanical Efficiency
Insertion Force Below 20N - -
Extraction Force Below 20N - -
Insertion/Extraction Rate 20-30 times/minute (average) - -
Terminal Strength Withstand a force of 1-4N for 10 seconds (deformation accepted) - -
Durability
Life Test 750 cycles (20 to 30 cycles per minutes) - -
Solderability
Resistance to Soldering Heat Test Temperature of solder: 2603, Dip time: 51 seconds - -
Environment Test
Cold Test Subjected to -252 for 96 hours, then 30 minutes in ambient conditions - -
Heat Test Subjected to 702 for 96 hours, then 30 minutes in ambient conditions - -
Humidity Test Subjected to 402 and 90% to 95% RH for 96 hours, then 30 minutes in ambient conditions - -
Soldering Test Temperature of solder: 2453N, Time of dip: 30.5 seconds, Length of dip: 2.0 mm - -
Salt Mist Test 352, 5%1% salt water, 8 hours - -
