Specifications
Description :
Wire Splice Connectors RoHS
Mfr. Part # :
MU14BCHTX-BOTTLE
Model Number :
MU14BCHTX-BOTTLE
Description

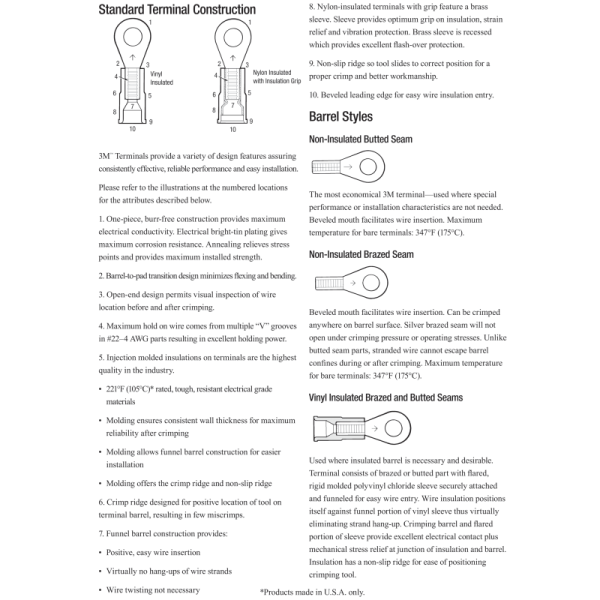

3M Scotchlok Terminals

3M Scotchlok terminals are a premier line designed for reliable performance and ease of installation. They accommodate various insulation types, including heat shrink, nylon, vinyl, and non-insulated options, with a range of barrel styles such as butted, brazed, seamless, or interlocking. Available in bottle or bulk packaging, these terminals are engineered to simplify the installer's job by ensuring positive and easy wire insertion, preventing strand hang-ups and wire twisting, and facilitating insulation entry. They are suitable for a broad application range, meeting demands for temperature and weather resistance.

Product Attributes

  • Brand: 3M Scotchlok
  • Product Line: Terminals
  • Insulation Materials: Heat Shrink, Nylon, Vinyl, Non-Insulated
  • Barrel Styles: Butted, Brazed, Seamless, Interlocking
  • Packaging Options: Bottle, Bulk
  • Certifications: RoHS 2011/65/EU

Technical Specifications

Product Number Conductor Size (AWG) Stud Size Insulation Material Barrel Style Terminals per Carton Terminals per Case Max. Insul. Dia.
MH18-6R/LK 22 - 18 6 Heat Shrink Brazed Seam - 250 -
MH18-6R/LX 22 - 18 6 Heat Shrink Brazed Seam 25 125 -
MNG18-4R/SK 22 - 18 4 Nylon with Insulation Grip Butted - 1000 0.145"
MNG18-4R/SX 22 - 18 4 Nylon with Insulation Grip Butted 100 500 0.145"
MN18BCK-A 22 - 18 - Nylon Seamless - 10000 0.125"
MN18BCX 22 - 18 - Nylon Seamless 100 500 0.125"
MNG18BCK 22 - 18 - Nylon with Insulation Grip Butted - 1000 0.145"
MNG18BCX 22 - 18 - Nylon with Insulation Grip Butted 100 500 0.145"
MNHU18-250DFIX 22 - 18 0.250" Heat Shrink Butted Seam 25 125 -
MNGI18-250DFIX 22 - 18 0.250" Nylon with Insulation Grip Interlock Barrel 100 500 0.145"
MNU18-187DFX 22 - 18 0.187" Nylon Butted Seam 100 500 0.145"
MNU18-250DFK 22 - 18 0.250" Nylon Butted Seam - 1000 0.145"
MNG18-187DMIX 22 - 18 0.187" Nylon with Insulation Grip Butted Seam 100 500 -
MNG18-250DMIX 22 - 18 0.250" Nylon with Insulation Grip Butted Seam 50 500 -
MNU18-187DMIX 22 - 18 0.187" Nylon Butted Seam 100 500 0.145"
MNU18-250DMIX 22 - 18 0.250" Nylon Butted Seam 50 500 0.145"
MNG18-47PX-A 22 - 18 - Nylon with Insulation Grip Insulation Grip 100 500 0.170"
MU18-47PX-A 22 - 18 - Non-Insulated Butted Seam 100 500 -
S-11-A (BULK) 22 - 16 - Nylon Butted Seam - 10000 -
S-31-A (BOXED) 18 - 10 - Nylon Butted Seam 50 500 -
MVU18PCK 22 - 18 - Vinyl Butted Seam 1000 - 0.145"

2411191048_3M-MU14BCHTX-BOTTLE_C20978905.pdf
