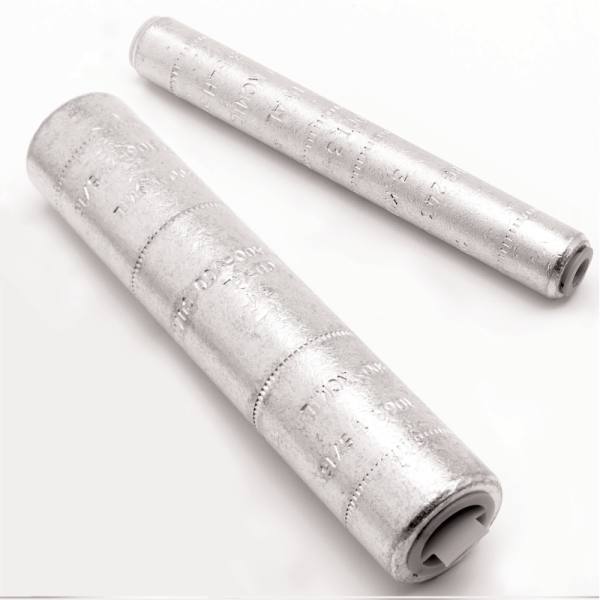

High Conductivity 3M QCI 4/0-600 Cable Lugs Providing Secure Termination for Power Cable Conductors
High Conductivity 3M QCI 4/0-600 Cable Lugs Providing Secure Termination for Power Cable Conductors
High Conductivity 3M QCI 4/0-600 Cable Lugs Providing Secure Termination for Power Cable Conductors
High Conductivity 3M QCI 4/0-600 Cable Lugs Providing Secure Termination for Power Cable Conductors
High Conductivity 3M QCI 4/0-600 Cable Lugs Providing Secure Termination for Power Cable Conductors
High Conductivity 3M QCI 4/0-600 Cable Lugs Providing Secure Termination for Power Cable Conductors
Specifications
Description :
Wire Splice Connectors RoHS
Mfr. Part # :
QCI 4/0-600
Model Number :
QCI 4/0-600
Description

3M Scotchlok Lugs and Connectors

Product Overview
3M Scotchlok Lugs and Connectors are designed for reliable splicing and terminating of power cable conductors. These products offer solutions for both copper and aluminum conductors, catering to a wide range of applications including general power cable termination, aerial connections, and specialized repairs. Engineered for durability and ease of use, they ensure secure connections in demanding electrical environments.

Product Attributes

  • Brand: 3M Scotchlok
  • Material: High-conductivity copper, High-conductivity aluminum
  • Plating: Electro-tin plated
  • Certifications: UL 486A Listed, UL 486B Listed, ANSI C119.4
  • Features: Seamless construction, One-piece design, Color-coded end caps (on aluminum connectors), Solid center oil stop (on some series), Chamfered ends for ease of insertion

Technical Specifications

Product Series Type Base Metal Conductor Type Barrel Style Voltage Rating Key Features Order No. (Example) Wire & Stud Size (Example) Min/Case Qty. (Example)
Scotchlok 10000 Series Connector Copper Copper Only Standard Barrel Up to 35 kV Tin plated, seamless 10001 6 AWG 50
Scotchlok 11000 Series Connector Copper Copper Only Long Barrel Up to 35 kV Tin plated, seamless 11006 2/0 AWG 10
Scotchlok 20000 Series (AL9CU) Connector Aluminum Aluminum or Copper Standard Barrel Up to 35 kV Color-coded end caps, contact aid, solid center stop 20001 6 AWG 50
Connectors CI Series Connector Aluminum Aluminum or Copper Standard Barrel Up to 35 kV Designed for 3M QS, QS-II and QS-III pre-molded splice bodies, meets ANSI C119.4 CI-1 1 AWG 10
Aerial Stem Connectors SC Series Stem Connector Aluminum Barrel, Copper Stem Aluminum or Copper Standard Barrel Up to 35 kV Factory crimped and sealed copper stem, tin plated barrel and stem SC0001 2 AWG 10
Lugs OS Series Lug Copper Copper Only Standard Barrel Up to 35 kV Solid oil stop, for use with 3M Terminations 5800-Pb Series OS0001 2 AWG 10
Connectors CIR Series Repair Splice Connector Aluminum Aluminum or Copper Standard Barrel Up to 35 kV For use with 3M QS-II Repair Splice Kits, allows removal of up to 6" damaged conductor, meets ANSI C119.4 CIR-2 2 AWG 10
Scotchlok Connectors 2000T Series Inline Sleeve Copper (2000T-CU), Aluminum (Reducer Series) Copper PILC (2000T-CU), Aluminum or Copper PILC (Reducer Series) Standard Barrel Up to 35 kV Solid center oil stop, meets ANSI C119.4 2000T-2-CU 2 AWG 9
Scotchlok Reducer Series Connectors 2000T-CU/AL Reducer Inline Sleeve Aluminum Aluminum or Copper PILC Standard Barrel Up to 35 kV Connects different size conductors, solid center oil stop, meets ANSI C119.4 2000T 2-1/0 CU/AL 21/0 AWG 9
Scotchlok Copper Lugs 30000 Series Lug Copper Copper Only Standard Barrel Up to 35 kV Tin plated, chamfered ends 30014 6 AWG #10 50
Scotchlok Copper Lugs 31000 Series Lug Copper Copper Only Long Barrel Up to 35 kV Tin plated, chamfered ends 31036 2/0 AWG 3/8" 10
Scotchlok Aluminum Lugs 40000 Series (AL9CU) Lug Aluminum Aluminum or Copper Standard Barrel Up to 35 kV Electro-tin plated, chamfered ends 40016 6 AWG 5/16" 50
Scotchlok Copper Lugs 31100 Series Lug Copper Copper Only Long Barrel Up to 35 kV Tin plated, chamfered ends 31122 4 AWG 1/2" 25
Scotchlok Aluminum Lugs 40100 Series (AL9CU) Lug Aluminum Aluminum or Copper Standard Barrel Up to 35 kV Electro-tin plated, chamfered ends 40132 1/0 AWG, 3/8" 10
Oil Seal Lugs OS Series Lug Copper Copper Only Standard Barrel Up to 35 kV Solid oil stop, for PILC cables OS0001 2 AWG (1 AWG) 10
Parallel Clamp CP-1 Clamp Aluminum Aluminum or Copper N/A Up to 35 kV For aerial connections with SC series stem connectors CP-1 6 AWG (Solid) 2/0 AWG (Stranded) 10
Aluminum One Hole Lugs ML Series Lug Aluminum Aluminum or Copper Standard Barrel Up to 35 kV For use with 3M 600 Amp T-Bodies 5815 Series ML-1AL 1 AWG 10
Aluminum Connectors CI-A Series Connector Aluminum Aluminum or Copper Standard Barrel Up to 35 kV For use with 3M Molded Rubber QS-II Inline Cable Splice 5420, 5450, 5461 CI-22A N/A 10
Shearbolt Connector QCI Series Shearbolt Connector Aluminum Copper or Aluminum Shearbolt Up to 46 kV No crimp tools/dies needed, bolts shear off, meets ANSI C119.4 Class 2 QCI 2-250 2 AWG250 kcmil 3
