3M Boardmount Socket 1502 Series

Product Overview

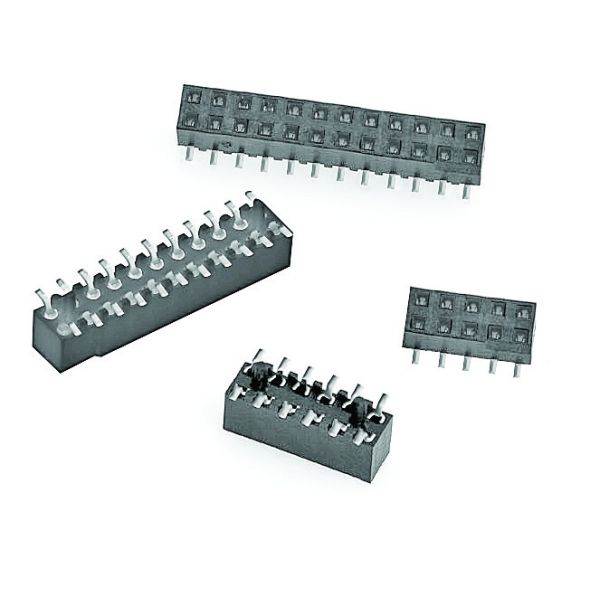

The 3M Boardmount Socket 1502 Series offers versatile interconnect solutions for surface mount and plated through-hole applications. Designed with a high-temperature insulator and reflow solder compatibility, these sockets minimize PCB stack height and are end stackable (straight versions) or side stackable (thru-hole versions). SMT parts are available in tape and reel packaging with a vacuum cap for automated placement, facilitating efficient manufacturing processes.

Product Attributes

• Brand: 3M
• Series: 1502 Series
• Connector Type: Boardmount Socket
• Pitch: 2 mm x 2 mm
• Orientation: Straight Surface Mount, Straight and Right Angle Plated Through-Hole
• Insulator Material: Glass Filled LCP (Surface Mount), Glass filled PCT (Vertical Thru-Hole), Glass filled PCT (Right Angle Thru-Hole)
• Contact Material: Copper alloy
• Plating (Wiping Area): 0.76 m [30 ] Gold
• Plating (Underplating): 1.27-3.81 m [50-150 ] Nickel overall
• Plating (Solder Tails): 5.1 m [200 ] Matte tin or tin-lead (refer to ordering information)
• Marking: Orientation delta and 3M Logo (except surface mount)
• Certifications: UL File No.: E68080
• Regulatory Information: See Regulatory Information Appendix (RIA) in the RoHS compliance section of www.3mconnector.com for compliance information (RIA E1 & C1 apply)

Technical Specifications

Ordering Information Structure:

• 1502XX-20X0-XX-XX (for Surface Mount with Board Location Post option)
• 1502XX-600X-XX (for Plated Through-Hole with Solder Tail Length option)
• 1502XX-5XX2-XX (for Plated Through-Hole with Standoff Height Code option)

Note: Refer to Table 1 in the provided document for detailed contact quantity and corresponding Dimension A values.
