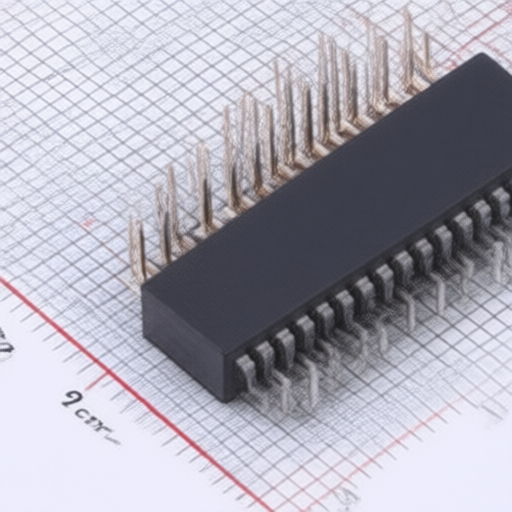

Double Row Female Header Connector Bent Pins Plastic Height 635mm HCTL PM200-2-12-W-6.35-G0 Component
Double Row Female Header Connector Bent Pins Plastic Height 635mm HCTL PM200-2-12-W-6.35-G0 Component
Specifications
Pitch :
2mm
Row Spacing :
2mm
Number of Rows :
双排
Number of Pins :
24P
Contact Material :
黄铜
Operating Temperature :
-40℃~+105℃
Holes Structure :
2x12P
Holes Direction :
侧面
Current Rating :
1.5A
Circular Hole / Square Hole :
方孔
Mounting Type :
弯插
Description :
Female Header 24 Position 2mm Pitch Dual Row Through Hole, Right Angle -40℃~+105℃
Mfr. Part # :
PM200-2-12-W-6.35-G0
Package :
Through Hole,Right Angle,P=2mm
Model Number :
PM200-2-12-W-6.35-G0
Description

Product Overview

This product is a double-row female header connector with bent pins, featuring a plastic height of 6.35mm. It is designed for various electronic applications and is manufactured by Shenzhen Huacantianlu Electronics Co., Ltd.

Product Attributes

  • Brand: PM200
  • Origin: Shenzhen, China
  • Type: Female Header Connector
  • Pin Configuration: Double Row
  • Pin Type: Bent Pins
  • Plastic Height: 6.35mm
  • Manufacturer: Shenzhen Huacantianlu Electronics Co., Ltd.

Technical Specifications

Model Description Material Part Number Plastic Height (mm)
PM200-2-N-W-6.35-G0 Double Row Female Header Connector, Bent Pin N/A PM200-2-N-W-6.35-G0 6.35

General Tolerances

Dimension Tolerance
X.X 0.30
X.XX 0.20
X.XXX 0.10
Angle 3.0

2311271019_HCTL-PM200-2-12-W-6-35-G0_C19270565.pdf
