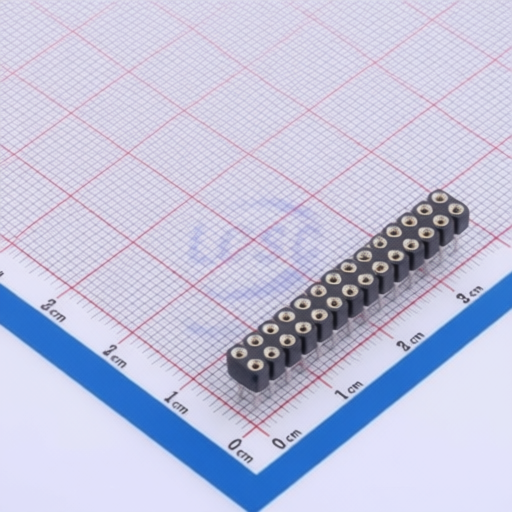

Double Row Round Pin Female Connector Plastic Height 3.0mm HCTL PM254-2-14-3.0-C Electrical Connector
Double Row Round Pin Female Connector Plastic Height 3.0mm HCTL PM254-2-14-3.0-C Electrical Connector
Specifications
Pitch :
2.54mm
Row Spacing :
2.54mm
Number of Rows :
双排
Number of Pins :
28P
Contact Material :
黄铜
Holes Structure :
2x14P
Holes Direction :
顶部
Current Rating :
3A
Circular Hole / Square Hole :
圆孔
Mounting Type :
直插
Description :
Female Header 28 Position 2.54mm Pitch Dual Row Through Hole
Mfr. Part # :
PM254-2-14-3.0-C
Package :
Through Hole,P=2.54mm
Model Number :
PM254-2-14-3.0-C
Description

Product Overview

This product is a double-row, round pin female connector with a plastic height of 3.0mm. It is designed for applications requiring reliable electrical connections.

Product Attributes

  • Brand: PM254
  • Type: Double Row, Round Pin, Female Connector
  • Material: Plastic ()
  • Origin: Shenzhen Huacantianlu Electronics Co., Ltd.

Technical Specifications

Part Number Description Plastic Height (mm) Pin Type Pin Spacing (mm) Length (mm)
PM254-2-N-3.0-XX-C Double Row Round Pin Female Connector 3.0 Round Pin () 2.54 7.43

General Tolerances

Dimension Tolerance
X.X 0.30
X.XX 0.20
X.XXX 0.10
Angle 3.0

2504241423_HCTL-PM254-2-14-3-0-C_C5159928.pdf
