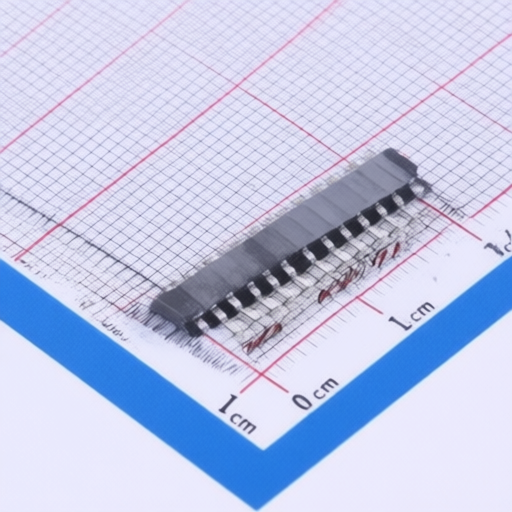

Single Row Straight Pin Female Header Connector HCTL PM200-1-11-Z-3.0-C Electronic Component
Single Row Straight Pin Female Header Connector HCTL PM200-1-11-Z-3.0-C Electronic Component
Specifications
Pitch :
2mm
Row Spacing :
-
Number of Rows :
单排
Number of Pins :
11P
Contact Plating :
锡
Contact Material :
黄铜
Holes Structure :
1x11P
Operating Temperature :
-40℃~+105℃
Holes Direction :
顶部
Current Rating :
3A
Circular Hole / Square Hole :
圆孔
Mounting Type :
直插
Description :
Female Header 11 Position 2mm Pitch Single Row Through Hole -40℃~+105℃
Mfr. Part # :
PM200-1-11-Z-3.0-C
Package :
Through Hole,P=2mm
Model Number :
PM200-1-11-Z-3.0-C
Description

Product Overview

The PM200 series single-row straight pin female header connector is designed for various electronic applications. It features a straight pin configuration and is manufactured by Shenzhen Huacantianlu Electronics Co., Ltd. This connector is available in different heights and pin configurations, indicated by the model number structure.

Product Attributes

  • Brand: PM200 Series
  • Origin: Shenzhen Huacantianlu Electronics Co., Ltd.
  • Type: Single Row Female Header
  • Pin Type: Straight Pin ()

Technical Specifications

Product Name Model Structure Description Material Part Number General Tolerance (mm)
Female Header PM200-1-N-Z-3.0-XX-C Single Row, Straight Pin (Z=), Plastic Height () N/A PM200-1-N-Z-3.0-XX-C X.X 0.30
X.XX 0.20
X.XXX 0.10
Angle 3.0
PM 200 - * - N - Z - * - ** - C () Z= (Straight Pin), W= (Right Angle Pin), S= (Vertical Surface Mount), WS= (Horizontal Surface Mount) (=Round Pin)

2509281015_HCTL-PM200-1-11-Z-3-0-C_C5159840.pdf
