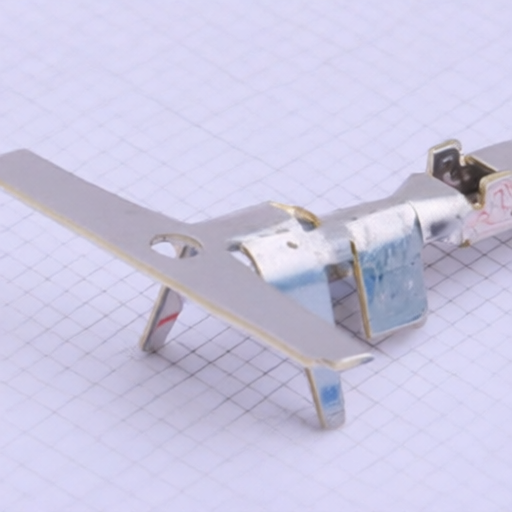

wire sealing connector KUM TP161-00300 made from brass with Sn plated and Au plated plating options
wire sealing connector KUM TP161-00300 made from brass with Sn plated and Au plated plating options
Specifications
Contact Plating :
锡
Contact Material :
黄铜
Wire Gauge - mm2 :
-
Description :
Rectangular Connector Contacts RoHS
Mfr. Part # :
TP161-00300
Model Number :
TP161-00300
Description

Product Overview

This product is an applicator connector from the NWP (Sealed) Series, designed for wire sealing applications. It offers various nominal diameters and plating options, including Sn-Plated and Au-Plated variants, to suit different wire sizes and performance requirements.

Product Attributes

  • Brand: TML
  • Series: NWP (Sealed)
  • Material: BRASS
  • Plating: Sn-Plated, Au-Plated (optional Au-Plated Case)
  • Origin: Korea (implied by Korean text and company name " ")

Technical Specifications

PART No.PART NAMENominal DiameterPlating SpecificationApplication Wire (SQ)NOTES
EM010-00050W/S NWP-1.4S(OR)1.4 ~ 1.8SnAVSS, AESSX(F), AEX(F) 0.3~0.5SQ6) Au-Plated Parts. (OPTIONAL Au-Plated CASE)
EM010-00100W/S NWP-1.9S(GN)1.9 ~ 2.2SnAVSS, AESSX(F), AEX(F) 0.75~1.25SQ6) Au-Plated Parts. (OPTIONAL Au-Plated CASE)
EM010-00120W/S NWP-2.3S(GY)2.3 ~ 2.7SnAVSSXF 1.5SQ6) Au-Plated Parts. (OPTIONAL Au-Plated CASE)
EM010-00140W/S NWP-2.8S(MB)2.8 ~ 3.3SnAVSS, AESSX(F), AVS, AEX(F) 2.0SQ6) Au-Plated Parts. (OPTIONAL Au-Plated CASE)
EM010-00060W/S NWP-3.6S(R)3.6 ~ 4.0SnAVS, AEX(F) 3.0SQ6) Au-Plated Parts. (OPTIONAL Au-Plated CASE)
TP161-00100TML NWP-M-S Sn-Sn PLATE MORE THAN 0.8 -7) PLATING SPECIFICATIONS. 1)Sn-Plated
TP161-00110TML NWP-M-S-Au Au-Ni UNDER PLATE MORE THAN 1.0 , Au PLATE MORE THAN 0.38 -7) PLATING SPECIFICATIONS. 2)Au-Plated
TP161-00200TML NWP-M-M Sn-Sn PLATE MORE THAN 0.8 -7) PLATING SPECIFICATIONS. 1)Sn-Plated
TP161-00210TML NWP-M-M-Au Au-Ni UNDER PLATE MORE THAN 1.0 , Au PLATE MORE THAN 0.38 -7) PLATING SPECIFICATIONS. 2)Au-Plated
TP161-00300TML NWP-M-L Sn-Sn PLATE MORE THAN 0.8 -7) PLATING SPECIFICATIONS. 1)Sn-Plated
TP161-00310TML NWP-M-L-Au Au-Ni UNDER PLATE MORE THAN 1.0 , Au PLATE MORE THAN 0.38 -7) PLATING SPECIFICATIONS. 2)Au-Plated

Notes:
1. Before using, check for harmful cracks, burrs, etc.
2. General tolerances: See below.
3. Marking & cavity No. by AS GENERAL RULE OF KUM.
4. Applicator Connector: NWP(110 SEALED) SERIES CONN.
5. Application: WIRE SEAL.


2410121856_KUM-TP161-00300_C310598.pdf
