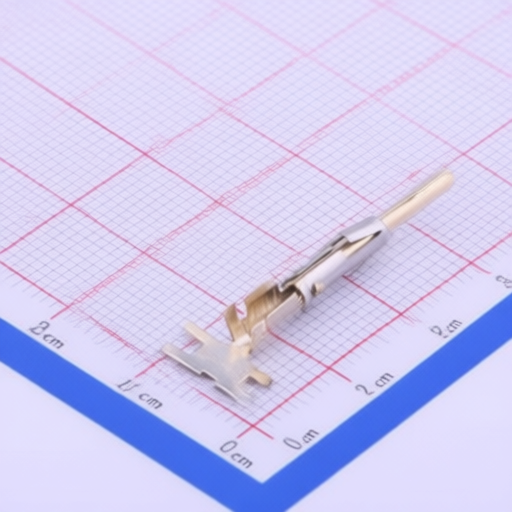

Tin plated stamped pin contact Amphenol SP16M1F compatible with 16 to 18 AWG wire and ECO-MATE series
Tin plated stamped pin contact Amphenol SP16M1F compatible with 16 to 18 AWG wire and ECO-MATE series
Specifications
Contact Plating :
金
Contact Material :
铜合金
Wire Gauge - mm2 :
0.75~1.5
Reference Series :
-
Description :
Connector Terminal Gold 16~18 AWG Crimp
Mfr. Part # :
SP16M1F
Model Number :
SP16M1F
Description

Product Overview

The ECO-MATE PIN CONTACT, STAMPED, 16-18AWG, SIZE 16 is a stamped pin contact designed for electrical applications. It is manufactured by Amphenol Sine Systems and is RoHS compliant. This product is suitable for use with wire insulation diameters up to 3.2mm.

Product Attributes

  • Brand: Amphenol Sine Systems
  • Product Line: ECO-MATE
  • Type: PIN CONTACT, STAMPED
  • Wire Gauge: 16-18AWG
  • Size: 16
  • Compliance: RoHS Compliant
  • Manufacturing: Stamped

Technical Specifications

Part Number Contact Plating (Mating Area) Wire Insulation Dia (Max) Revision Drawing No.
SP16M1G10 GOLD FLASH PLATING OVER NICKEL 3.2mm B1 C-
SP16M1G15 10" GOLD PLATING OVER NICKEL 3.2mm B1 C-
SP16M1G30 15" GOLD PLATING OVER NICKEL 3.2mm B1 C-
SP16M1T 30" GOLD PLATING OVER NICKEL 3.2mm B1 C-
SP16M1F TIN PLATING OVER NICKEL 3.2mm B1 C-
SP16M1XX (Referenced in Note 3) 3.2mm B1 C-

Note: All dimensions are for reference use only.

Note: Tolerances: 3 PL DEC 0.08, 2 PL DEC 0.15, 1 PL DEC 0.30, Fractions 1/64, Angles 1.

Note: All dimensions are in metric(mm).


2410122028_Amphenol-SP16M1F_C328002.pdf
