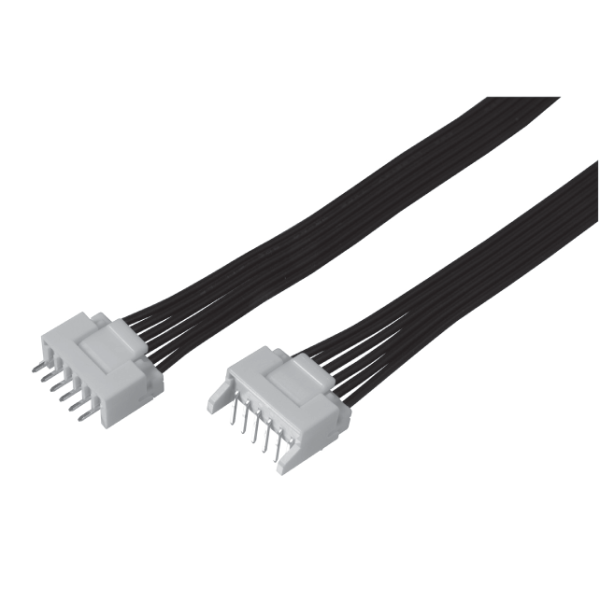

Electrical Connector JAMICON SJA20-07WSB with Multi Insertion Guide and Rectangular Wafer Silhouette
Electrical Connector JAMICON SJA20-07WSB with Multi Insertion Guide and Rectangular Wafer Silhouette
Specifications
Contact Plating :
锡
Contact Material :
黄铜
Number of Rows :
1
Operating Temperature :
-40℃~+85℃
Mounting Type :
直插
Description :
Tin Brass 1 -40℃~+85℃ Through Hole Through Hole Headers, Male Pins RoHS
Mfr. Part # :
SJA20-07WSB
Package :
Through Hole
Model Number :
SJA20-07WSB
Description

SJA Connector

The SJA connector series offers secure mating with a multi-insertion guide and backrest, a user-friendly multi-faceted design for gentle handling, and a simple rectangular silhouette wafer. Terminals are common with the SJH connector. Suitable for board-to-wire applications.

Product Attributes

  • Brand: SJH Connector
  • Material (Housing): Nylon66 (UL94 V-0)
  • Material (Wafer Base): Nylon66 GF (UL94 V-0)
  • Material (Wafer Square Pin): Brass, Pre-tin Plated
  • Material (Wafer Tab Contact): Brass, Sn-Cu Plating
  • Material (SMT Wafer Base): Nylon6T GF (UL94 V-0)
  • Material (SMT Wafer Cover): Nylon6T GF (UL94 V-0)
  • Certifications: UL94 V-0

Technical Specifications

Product NamePolesRated VoltageRated CurrentWithstand VoltageInsulation ResistanceTemperature RangeApplicable P.C.B. ThicknessPitch between polesWire SizeApplicable P.C.B. Hole dia.
SJA connector213PAC.DC250V3AAC1000V/11000M40850.81.6mm2.0mmAWG #22#300.8 0.05mm

2410311316_JAMICON-SJA20-07WSB_C17350831.pdf
