Industrial Soldering Parameters for CNC Tech 3110-40-003-11-00-TR Covering Lead Free Reflow Techniques
Industrial Soldering Parameters for CNC Tech 3110-40-003-11-00-TR Covering Lead Free Reflow Techniques
Industrial Soldering Parameters for CNC Tech 3110-40-003-11-00-TR Covering Lead Free Reflow Techniques
Industrial Soldering Parameters for CNC Tech 3110-40-003-11-00-TR Covering Lead Free Reflow Techniques
Specifications
Contact Material :
黄铜
Number of Rows :
2
Row Spacing :
2mm
Operating Temperature :
-40℃~+105℃
Mounting Type :
立贴
Description :
Brass 2 2mm -40℃~+105℃ Surface Mount,Vertical SMD Headers, Male Pins RoHS
Mfr. Part # :
3110-40-003-11-00-TR
Package :
SMD
Model Number :
3110-40-003-11-00-TR
Description

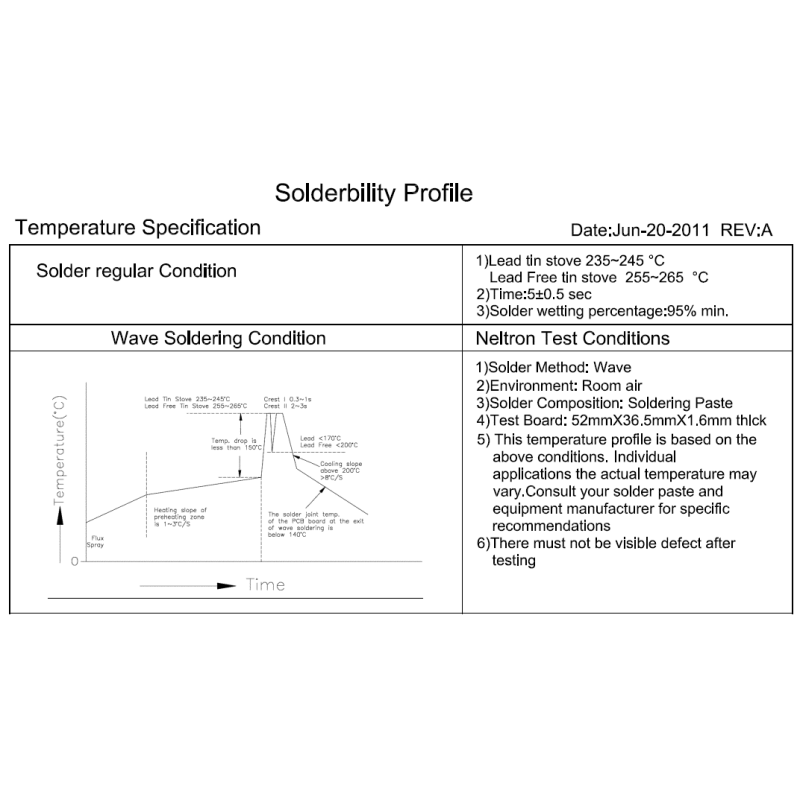

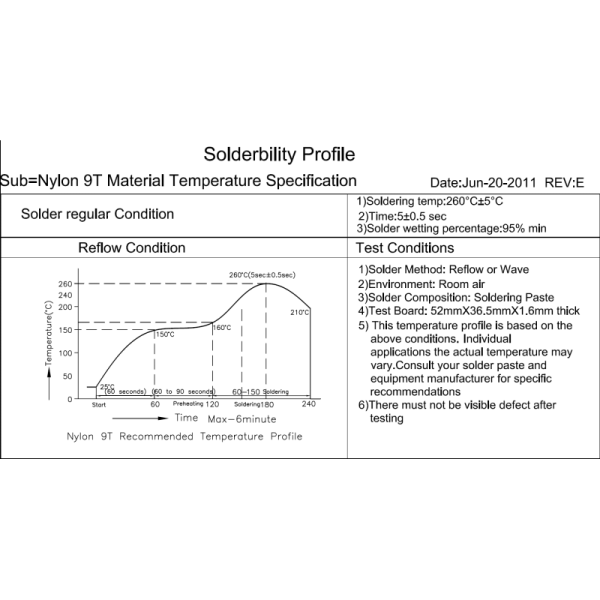

Soldering Recommendations for 3X10, 3X20, and 3221 Series

This document outlines the recommended temperature and time periods for the soldering process for the 3X10, 3X20, and 3221 series of products. It details parameters for both wave and reflow soldering methods.

Product Attributes

  • Brand: CnC Tech

Technical Specifications

SeriesSoldering MethodTemperature in the furnace (lead-free)PlasticFurnace timeSoldering time
3020-XX-0300-00reflow260C 5C9T4~6 mins.50.5 sec
3020-XX-0300-00-TRreflow260C 5C9T4~6 mins.50.5 sec
3020-XX-0300-00wave235C 5C9T4~6 mins.50.5 sec
3020-XX-0300-00reflow260C 5C9T4~6 mins.50.5 sec
3020-XX-0300-00wave235C 5C9T4~6 mins.50.5 sec
3020-XX-0300-00reflow260C 5C9T4~6 mins.50.5 sec
3220-XX-0300-00reflow260C 5C9T4~6 mins.50.5 sec
3220-XX-0300-00-TRreflow260C 5C9T4~6 mins.50.5 sec
3220-XX-0300-00wave235C 5C9T4~6 mins.50.5 sec
3220-XX-0300-00reflow260C 5C9T4~6 mins.50.5 sec
3220-XX-0300-00wave235C 5C9T4~6 mins.50.5 sec
3220-XX-0300-00reflow260C 5C9T4~6 mins.50.5 sec
3221-XX-0300-00reflow260C 5C9T4~6 mins.50.5 sec
3221-XX-0300-00-TRreflow260C 5C9T4~6 mins.50.5 sec
3010-XX-001-12-00wave235C 5CPBT4~6 mins.50.5 sec
3010-XX-001-13-00wave235C 5CPBT4~6 mins.50.5 sec
3010-XX-002-12-00wave235C 5CPBT4~6 mins.50.5 sec
3010-XX-002-13-00wave235C 5CPBT4~6 mins.50.5 sec
3010-XX-003-12-00reflow260C 5C9T4~6 mins.50.5 sec
3010-XX-003-13-00reflow260C 5C9T4~6 mins.50.5 sec
3210-XX-003-12-00reflow260C 5C9T4~6 mins.50.5 sec
3110-XX-003-11-00-TRreflow260C 5C9T4~6 mins.50.5 sec
3110-XX-003-12-00-TRreflow260C 5C9T4~6 mins.50.5 sec
3110-XX-003-13-00-TRreflow260C 5C9T4~6 mins.50.5 sec
3220-XX-0100-00Wave Soldering
3220-XX-0200-00Wave Soldering
3221-XX-0100-00Wave Soldering
3221-XX-0200-00Wave Soldering
3020-XX-0100-00Wave Soldering
3020-XX-0200-00Wave Soldering
3110-10-001-11-00Wave Soldering
3110-10-001-12-00Wave Soldering
3110-10-001-13-00Wave Soldering
3220-XX-0100-00Reflow Soldering
3220-XX-0200-00Reflow Soldering
3221-XX-0100-00Reflow Soldering
3221-XX-0200-00Reflow Soldering
3020-XX-0100-00Reflow Soldering
3020-XX-0200-00Reflow Soldering
3110-10-001-11-00Reflow Soldering
3110-10-001-12-00Reflow Soldering
3110-10-001-13-00Reflow Soldering

2411280018_CNC-Tech-3110-40-003-11-00-TR_C17210886.pdf
