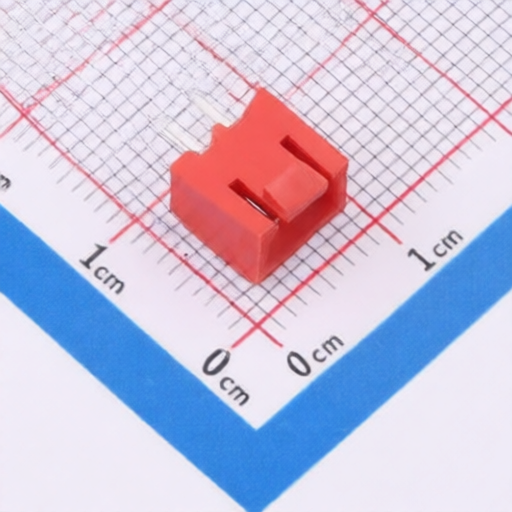

Versatile SHOU HAN 2.54-2P ZZDK-R 2.54mm Connector designed for various electrical connection needs
Versatile SHOU HAN 2.54-2P ZZDK-R 2.54mm Connector designed for various electrical connection needs
Specifications
Pins Structure :
1x2P
Reference Series :
XHB
Contact Material :
黄铜;PA66
Color :
红色
Flame Retardant Rating :
UL94V-0
Number of Rows :
1
Mounting Type :
直插
Supplementary Features :
-
Pitch :
2.54mm
Operating Temperature :
-25℃~+85℃
Number of PINs :
2P
Number of PINs Per Row :
2
Current Rating :
3A
Contact Plating :
锡
Voltage Rating (Max) :
250V
Description :
1x2P XHB 1 2.54mm -25℃~+85℃ 2P 2 3A 250V Through Hole,P=2.5mm Headers, Male Pins RoHS
Mfr. Part # :
2.54-2P ZZDK-R 2.54mm Connector
Package :
Through Hole,P=2.5mm
Model Number :
2.54-2P ZZDK-R 2.54mm Connector
Description

Product Overview

This specification covers the production and inspection of a 2.54mm Connector (Pin Header). It is designed for various applications requiring reliable electrical connections.

Product Attributes

  • Brand: (SHENZHEN SHOUHAN TECHNOLOGY CO., LTD)
  • Origin: China
  • Certifications: UL94V-0 (for Housing material)
  • RoHS Compliant: Yes

Technical Specifications

Part NameTypeMaterialFinishColorThicknessP/NDescription
Terminal (Contact)Phosphor bronzeTin Plating: 3~4m-0.15mm--
HousingNylon66-White---
Contact (Pin)Phosphor bronzeTin Plating: 3~4m-0.30mm--
Opening Wafer (Housing)Nylon46-Beige---
Contact (Pin)Phosphor bronzeGold Plating: 3~4m-0.30mm--
Lips Wafer (Housing)PBT-White---
Contact (Pin)Phosphor bronzeTin Plating: 3~4m-0.30mm--
Solder tabsPhosphor bronzeTin Plating: 3~4m-0.25mm--
Tiepian Wafer (Housing)Nylon46-Beige---

Electrical Performance

ItemRequirement
Rated Voltage250V AC/DC
Rated Current3A AC/DC
Contact Resistance0.01
Insulation Resistance1000M
Dielectric Strength1000V AC/minute

Mechanical Performance

ItemRequirement
Male contact Retention force10N per pin
Female contact Retention force10N per pin
Plug-in force3N per pin
Plug-out force0.5N per pin

Environmental Performance

ItemRequirement
Soldering rest (Time: 2.50.5S, Temperature: 2305, Area of Soldering: 95%)-
Resistance to soldering Heat (Time: 51S, Temperature: 2305, Appearance: No Damage)-
Heat test (Time: 96h, Temperature: +853, Appearance: No Damage, Contact resistance: 20 m)-
Cold test (Time: 48h, Temperature: -253, Appearance: No Damage, Contact resistance: 20 m)-
Temperature Cycling (Low temperature:-253, High temperature:853, 5 cycles)Appearance: No Damage, Contact resistance: 20 m
Humidity (Temperature: 602, Relative humidity: 90%-96% RH, Time: 96h)Appearance: No Damage, Contact resistance: 20 m, Insulation Resistance: 100M
Salt Spray (Salt concentration: 51%, Temperature: 352, Time: 162h)Appearance: No Damage, Contact resistance: 20 m

Usage Conditions

ItemRequirement
Ambient temperature Range-25+85
Applicable Wire SizesAWG#22#30
Applicable PC board thickness1.2~1.6 mm

2506041705_SHOU-HAN-2-54-2P-ZZDK-R-2-54mm-Connector_C49023793.pdf
