2.0mm pitch pluggable pin header connectors SHOU HAN 2.0mm-10P ZZ-MS with PA6T housing and tin plated terminals
2.0mm pitch pluggable pin header connectors SHOU HAN 2.0mm-10P ZZ-MS with PA6T housing and tin plated terminals
Specifications
Reference Series :
PH
Pins Structure :
1x10P
Contact Material :
黄铜;PA6T
Color :
米色
Flame Retardant Rating :
UL94V-0
Number of Rows :
1
Mounting Type :
直插
Pitch :
2mm
Number of PINs :
10P
Operating Temperature :
-25℃~+85℃
Number of PINs Per Row :
10
Contact Plating :
锡
Current Rating :
1A
Voltage Rating (Max) :
250V
Row Spacing :
-
Description :
Connector Header 10 position 2mm Pitch 1A Through Hole -25℃~+85℃
Mfr. Part # :
2.0mm-10P ZZ-MS
Package :
Through Hole,P=2mm
Model Number :
2.0mm-10P ZZ-MS
Description

Product Overview

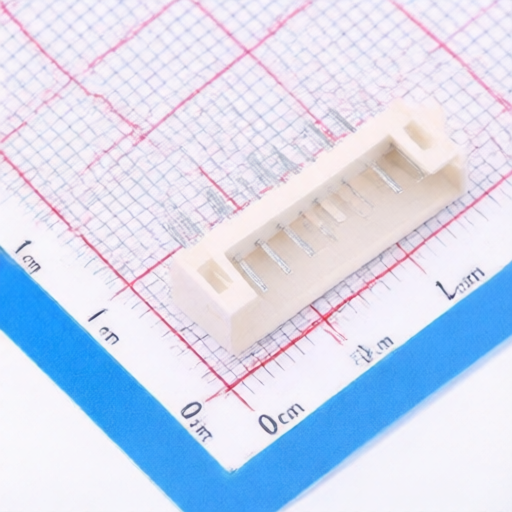

This specification covers the production and inspection of the 1501 Series 2.0mm pitch pluggable pin header connectors. Designed for reliable electrical connections, these connectors feature a durable PA6T housing and phosphor bronze terminals with tin plating. They are suitable for a wide range of applications requiring stable performance within specified environmental and electrical conditions.

Product Attributes

  • Brand: SHENZHEN SHOUHAN TECHNOLOGYCO.,LTD
  • Origin: Shenzhen, China
  • Product Name: 1501 Series 2.0mm-10P ZZ-MS Pluggable Pin Header
  • Housing Material: PA6T (UL94V-0), Beige
  • Terminal Material: Phosphor Bronze
  • Plating: Tin Plating (3-4m)
  • Certifications: UL94V-0

Technical Specifications

ItemSpecificationDetails
GeneralApplicable PC Board Thickness1.2mm~1.6mm
Temperature Range-25 ~ 85
Rated Voltage250V AC/DC
Rated Current2A
Insulation Resistance100M
Withstand Voltage800V AC/minute
Appearance & DimensionSurface ConditionFree from defects, dirt, cracks, mechanical damage. Contacts free from rust, plating not oxidized or peeled.
InterchangeabilityExchangeable with same specification products.
Material DetailsHousingPA6T (UL94V-0), Beige
TerminalPhosphor Bronze, 0.15mm thickness, Tin Plating: 3~4m
Electrical PerformanceMale Contact Retention Force10N per pin
Female Contact Retention Force10N per pin
Plug-in Force3N per pin
Plug-out Force0.5N per pin
Contact Resistance20m
Endurance CharacteristicsSoldering Rest (250, 2.50.5S)Soldering Area: 95%
Resistance to Soldering Heat (250, 51S)Appearance: No Damage
Heat Test (+853, 96h)Appearance: No Damage, Contact Resistance: 20m
Cold Test (-253, 48h)Appearance: No Damage, Contact Resistance: 20m
Temperature Cycling (-25 to 85, 5 cycles)Appearance: No Damage, Contact Resistance: 20m
Constant Humidity Heat (602, 90%-96% RH, 96h)Appearance: No Damage, Contact Resistance: 20m, Insulation Resistance: 100M
Salt Spray Test (352, 51% NaCl, 162h)Appearance: No Damage, Contact Resistance: 20m
