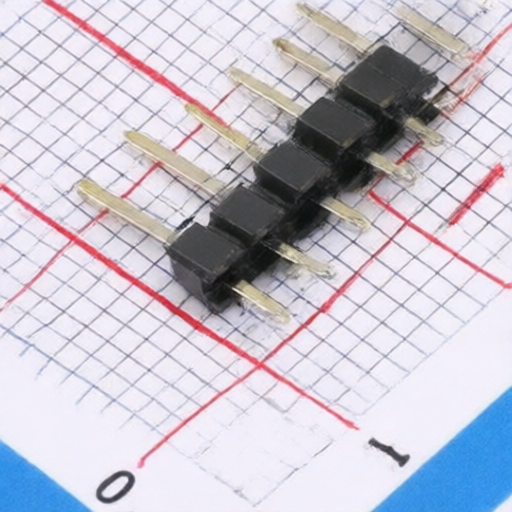

Various gold plating thicknesses and light tin finish Nextron Z-211-0611-0021-001 for electronic industry applications
Various gold plating thicknesses and light tin finish Nextron Z-211-0611-0021-001 for electronic industry applications
Specifications
Number of Pins :
6P
Pins Structure :
1x6P
Contact Plating :
-
Contact Material :
黄铜
Operating Temperature :
-25℃~+105℃
Color :
黑色
Circluar Pins/Square Pins :
方针
Pitch :
2.54mm
Insulation Height :
2.5mm
Length of Mating Pin :
6mm
Voltage Rating (Max) :
-
Length of End Connection Pin :
3mm
Number of Rows :
单排
Current Rating-Signal :
-
Mounting Type :
直插
Row Spacing :
-
Description :
Pin Header 6 Position 2.54mm Pitch Single Row Through Hole -25℃~+105℃
Mfr. Part # :
Z-211-0611-0021-001
Package :
Through Hole,P=2.54mm
Model Number :
Z-211-0611-0021-001
Description

Product Overview

This product offers various gold plating options with different thicknesses, including standard gold and gold with light tin finishes. It is designed for applications requiring specific plating characteristics, with options ranging from 1u" to 30u" in gold thickness, and combinations with light tin.

Product Attributes

  • Brand: Code A B C
  • Color/Finish: Gold, Light Tin

Technical Specifications

Model Plating Thickness
Code 1 Gold 1u"
Code 2 Gold 3u"
Code 3 Gold 5u"
Code 4 Gold 3u"
Code 5 Gold 5u"
Code 6 Gold 30u"
Code 1 Flash -
Code 2 Gold 10u"
Code 3 Gold 15u"
Code 5 Gold 15u"
Code 1 Gold 3u"
Code 2 Gold 5u"
Code 3 Gold 10u"
Code 5 Gold 3u"
Code 1 Gold/Light Tin 3u"
Code 2 Gold/Light Tin 5u"
Code 3 Gold/Light Tin 10u"
Code 5 Gold/Light Tin 15u"
Code 6 Gold/Light Tin 30u"
