Bel Fuse 105-0604-001 deluxe insulated tip jack with closed entry design preventing oversized probe insertion
Bel Fuse 105-0604-001 deluxe insulated tip jack with closed entry design preventing oversized probe insertion
Specifications
Description :
Jacks, Plugs RoHS
Mfr. Part # :
105-0604-001
Model Number :
105-0604-001
Description

Product Overview

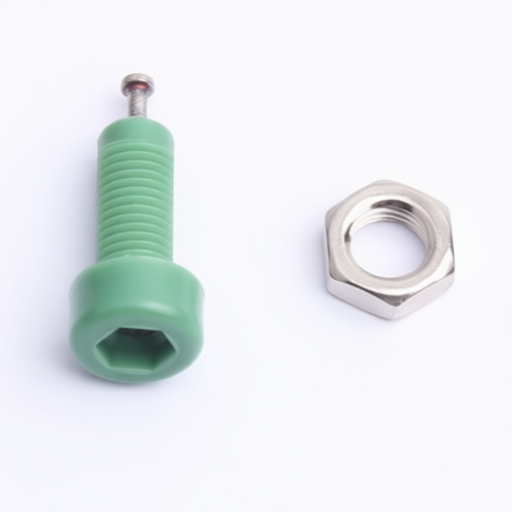

This deluxe insulated tip jack, designed for standard tip plugs with a .080" (2.00mm) diameter, features a machined contact with a turret terminal for secure connections. Its hex socket head allows for easy mounting, and the closed entry design prevents the insertion of probes larger than .085" (2.16mm). Constructed with a Nylon 6/6 body approved for self-extinguishing properties, this tip jack is suitable for applications requiring robust insulation and reliable electrical performance. Custom drawings are available upon request.

Product Attributes

  • Brand: Cinch Connectivity Solutions
  • Contact Material: Brass per QQ-B-626D with wrap around beryllium copper spring per QQ-C-533
  • Finish: Silver Plating
  • Body Material: Nylon 6/6 per ASTM D4066
  • Hardware Material: Nickel plated nut (unassembled)
  • Certifications: Nylon UL approved for self extinguishing
  • Custom Drawings: Available upon request

Technical Specifications

Specification Value
Model Part Number 105-0604-001
Color Green
Contact Resistance 0.010 ohms maximum
Contact-To-Panel Capacitance 2 pF nominal
Current Rating 10 amps
Breakdown Voltage 5700 Vrms minimum
Body Thread Stripping Torque 0.4 lb. in (4.5 kg. cm.)
Panel Thickness Capacity Up to .437" (11.10mm)
Tip Plug Diameter Compatibility .080" (2.00mm)
Probe Entry Blockage Size Blocks access of probes greater than .085" (2.16mm)
Mounting Feature Hex socket head .188" (4.77mm)
