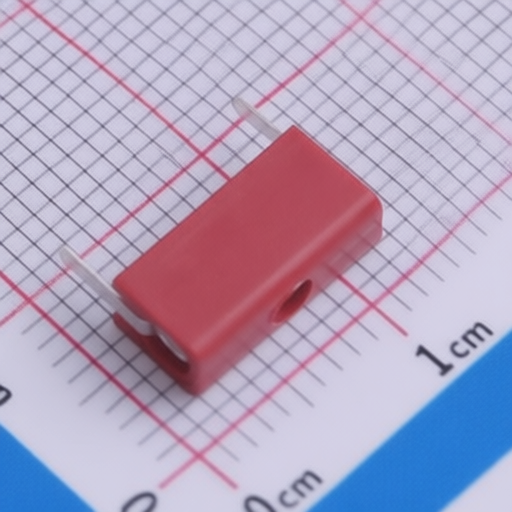

Horizontal test jack insulated Bel Fuse 105-0752-001 with 0.080 inch tip plug diameter and customizable options
Horizontal test jack insulated Bel Fuse 105-0752-001 with 0.080 inch tip plug diameter and customizable options
Specifications
Description :
Jacks, Plugs RoHS
Mfr. Part # :
105-0752-001
Model Number :
105-0752-001
Description

Product Overview

This horizontal test jack, designed for insulated applications, offers robust performance and convenient probe access from multiple points. Its construction prioritizes durability and electrical integrity, making it suitable for various testing environments where reliable connections are essential.

Product Attributes

  • Brand: Cinch Connectivity Solutions
  • Material: Copper aluminum alloy* (contact), Nylon 6/6 (body)
  • Finish Options: Gold, Silver
  • Certifications: Nylon UL approved for self-extinguishing
  • Customization: Customer drawings available upon request (inches/millimeters)

Technical Specifications

Specification Value
Model Number 105-0752-001 Red
Current Rating 5 amps
Breakdown Voltage 2100 Vrms minimum
Contact Resistance (Gold) 0.005 ohms maximum
Contact Resistance (Silver) 0.010 ohms maximum
Adjacent Jack Capacitance (C) 1 pF maximum at 1 MHz
Standard Tip Plug Diameter .080 inches (2.00 mm)
Nylon Material Standard ASTM D4066

* A new material development that, for this application, meets or exceeds beryllium copper.

Features:

  • Contact protected from flux and solder
  • Probe access from both ends or top
