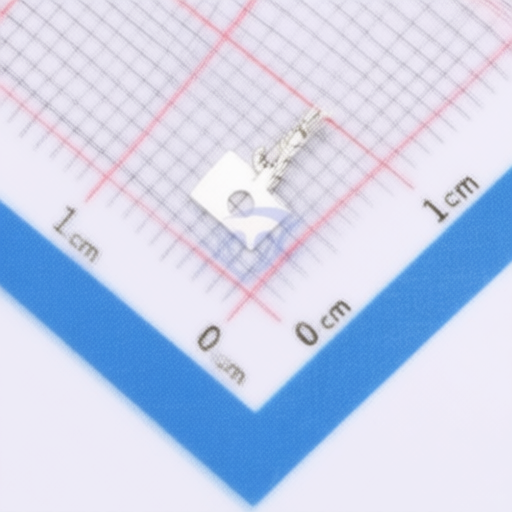

Jkun A1504T 10 SMT wire to board connector featuring 15mm pitch suitable for various electronic uses
Jkun A1504T 10 SMT wire to board connector featuring 15mm pitch suitable for various electronic uses
Specifications
Contact Plating :
锡
Contact Material :
磷青铜
Description :
Rectangular Connector Contacts RoHS
Mfr. Part # :
A1504T-10
Model Number :
A1504T-10
Description

Product Overview

This product series, including SD-A1504-A, SD-A1504-B, and SD-A1504-C, offers a range of wire-to-board (W/B) connectors with a 1.5mm pitch. They are designed for SMT (Surface Mount Technology) applications, with options for side-mount (SD-A1504-A) and top-mount (SD-A1504-B) configurations. The SD-A1504-C model is a housing component. These connectors are suitable for various electronic applications requiring reliable signal and power connections.

Product Attributes

  • Brand: JKUN
  • Series: A1504
  • Pitch: 1.5mm
  • Mounting Type: Wire-to-Board (W/B), SMT
  • Housing Material (SD-A1504-A, SD-A1504-B): LCP UL94V-0, Natural color
  • Housing Material (SD-A1504-C): PA66, White color
  • Contact Material: Phosphor Bronze, Tin over Nickel Plate (pre-tinned)
  • Certifications: RoHS compliant

Technical Specifications

Specification Value
Contact Resistance ≤ 20mΩ (SD-A1504-A, SD-A1504-B)
≥ 500MΩ (SD-A1504-C)
Insulation Resistance ≥ 1000MΩ (SD-A1504-A, SD-A1504-B)
Rated Voltage 350V AC/DC (SD-A1504-A, SD-A1504-B)
250V AC/DC (SD-A1504-C)
Rated Current 3A AC/DC
Withstand Voltage 500V AC/minute (SD-A1504-A, SD-A1504-B)
1000V AC/minute (SD-A1504-C)
Temperature Range -25°C to +85°C
Poles (Number of Circuits) Refer to list (2 to 15 circuits)
Wire Range (SD-A1504-C) AWG:#24~#28
Insulation Outer Diameter (SD-A1504-C) 0.95~1.2 mm
Packaging (SD-A1504-A) Reel/Carton (1000 PCS/Reel)
Packaging (SD-A1504-B) Reel/Carton (800 PCS/Reel)
Packaging (SD-A1504-C) 1,000 PCS/Bag (PE)
Mates With (SD-A1504-A, SD-A1504-B) Housing: A1504Y-**
Terminal: A1504T
Mates With (SD-A1504-C) Terminal: A1504T
Wafer: A1504AWV-**, A1504AWR-**
Optional Models (SD-A1504-A, SD-A1504-B) Wafer: A1504AWV-**, A1504AWR-**
Dimensions (mm) Refer to PCB Layout diagrams for DIM.A, DIM.B, DIM.C, DIM.D, DIM.E
