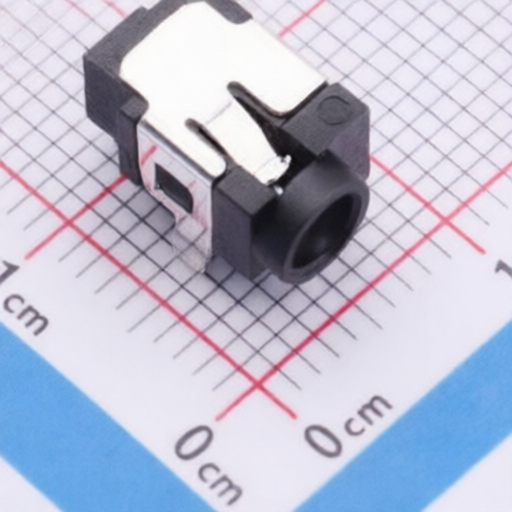

Electronic DC power jack HMTCONN DC031-B10 with PPA black housing and rated DC 12V 2A electrical load
Electronic DC power jack HMTCONN DC031-B10 with PPA black housing and rated DC 12V 2A electrical load
Specifications
Mounting Type :
弯插
Connector Type :
DC电源插座
Rated current :
1A
working temperature :
-20℃~+70℃
Inside Contact Diameter :
1mm
Outside Contact Diameter :
-
Description :
Right Angle DC Power Jack 1mm Through Hole Power Connectors RoHS
Mfr. Part # :
DC031-B10
Package :
Through Hole
Model Number :
DC031-B10
Description

Product Overview

This product is a DC power jack with a 3.5mm pin recommendation, designed for various electronic applications. It features a durable PPA black housing and phosphor bronze/brass plated internal components, ensuring reliable performance and a long service life of 5000 cycles.

Product Attributes

  • Brand: Huamingtong
  • Origin: Shenzhen Huamingtong Electronics Co., Ltd
  • Material: PPA Black (Housing), Phosphor Bronze MB:CuSn PLATED (Tip Spring), Brass MB:CuSn PLATED (Center Pin)
  • Color: Black
  • Certifications: RoHS

Technical Specifications

ModelPin DiameterRated Electrical LoadContact ResistanceInsulation ResistancePressure ResistanceInsertion ForceOperating Temperature RangeService Life
DC031-B101.00DC 12V 2A0.03 100MAC 500V 1min3-20N-20C~+70C5000 cycles
DC031-B131.30DC 12V 2A0.03 100MAC 500V 1min3-20N-20C~+70C5000 cycles

2509041415_HMTCONN-DC031-B10_C51822117.pdf
