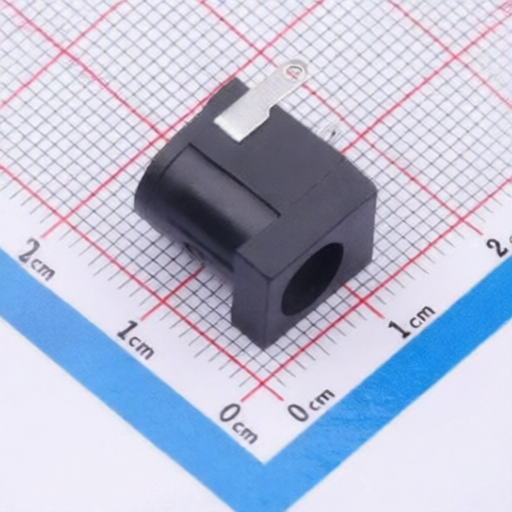

DC power connector HMTCONN DC005-B25 with 5000 cycles service life and wide operating temperature range
DC power connector HMTCONN DC005-B25 with 5000 cycles service life and wide operating temperature range
Specifications
Mounting Type :
弯插
Connector Type :
DC电源插座
Rated current :
5A
working temperature :
-20℃~+70℃
Inside Contact Diameter :
2.5mm
Outside Contact Diameter :
6.3mm
Description :
Right Angle DC Power Jack 2.5mm 6.3mm Through Hole Power Connectors RoHS
Mfr. Part # :
DC005-B25
Package :
Through Hole
Model Number :
DC005-B25
Description

Product Overview

This product is a DC power connector designed for various electronic applications. It offers reliable electrical connections with specified contact and insulation resistance, and a robust pressure resistance rating. The connector is built for durability with a significant service life and operates within a standard temperature range.

Product Attributes

  • Brand: Huamingtong
  • Origin: Shenzhen Huamingtong Electronics Co., Ltd
  • Certifications: RoHS

Technical Specifications

Part NameQuantityMaterialRemarksModelDiameter
Main technical performance
Rated electrical loadDC 24V 3A
Contact resistance30m
Insulation resistance100M
Pressure resistanceAC 500V 1min
Insertion force3-30N
Operating temperature range-20C~+70C
Service life5000cycles
PIN
1H62 D.Cu /Sn
1H65 D.Cu /Sn
1PA66
1H62 D.Cu /Sn
1
1PA66
DC005-B20DC005-B202.00
DC005-B25DC005-B252.50
