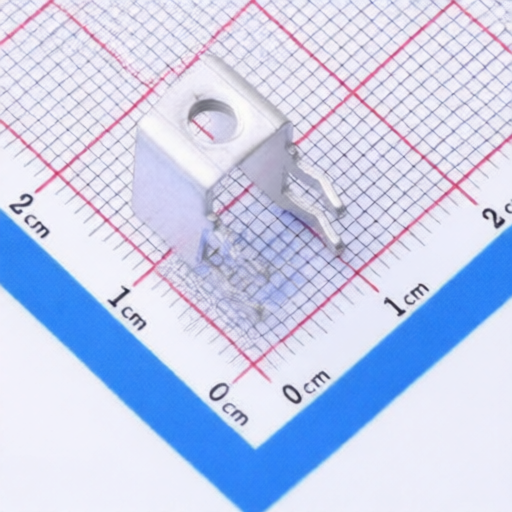

Screw type terminals Keystone 7792 providing practical alternative to traditional PC edge connectors
Screw type terminals Keystone 7792 providing practical alternative to traditional PC edge connectors
Specifications
Description :
Through Hole Screw Connectors RoHS
Mfr. Part # :
7792
Package :
Through Hole
Model Number :
7792
Description

Product Overview

These easy-to-mount, multipurpose screw type terminals offer a practical, low-cost alternative to PC screw type edge connectors, barrier blocks, terminal boards, and terminal strips. They are steadfast and easy to install, accommodating solid or stranded wire, crimp type terminals, or lugs. The multi-placement of these low-profile terminals makes them ideally suited for high-density packaging. They are supplied unassembled or with the screw installed and captivated.

Product Attributes

  • Brand: KEYELCO
  • Origin: USA (implied by address)
  • Certifications: RoHS COMPLIANT, ISO 9001 CERTIFIED
  • Color: Color coded screws available (add color screw suffix to Cat. No.)

Technical Specifications

CAT. NO.ThreadScrew SuppliedMounting TypeRatedTerminal MaterialScrew MaterialMounting Detail (mm)
7807M3 / M4No Screw SuppliedSNAP-IN PC MOUNT15 Amps.80 Brass, Matte Tin PlateBrass, Nickel Plate7.50 x 5.00, 1.85 DIA. HOLE (4) PLS
7808M3 / M4Screw SuppliedSNAP-IN PC MOUNT15 Amps.80 Brass, Matte Tin PlateBrass, Nickel Plate7.50 x 5.00, 1.85 DIA. HOLE (4) PLS
7798M3 / M4No Screw SuppliedPC MOUNT15 Amps.80 Brass, Matte Tin PlateBrass, Nickel Plate5.00 x 7.00, 1.85 DIA. HOLE (4) PLS
7799M3 / M4Screw SuppliedPC MOUNT15 Amps.80 Brass, Matte Tin PlateBrass, Nickel Plate5.00 x 7.00, 1.85 DIA. HOLE (4) PLS
7800M3 / M4Screw Installed & CaptivatedPC MOUNT15 Amps.80 Brass, Matte Tin PlateBrass, Nickel Plate5.00 x 7.00, 1.85 DIA. HOLE (4) PLS
7770M3 / M4No Screw SuppliedSNAP-IN PC MOUNT15 Amps.80 Brass, Matte Tin PlateBrass, Nickel Plate6.00 LONG SCREW, 5.00 x 11.50, 6.60 x 5.08, 5.10 x 7.90, 7.11
7767M3 / M4No Screw SuppliedSNAP-IN PC MOUNT15 Amps.80 Brass, Matte Tin PlateBrass, Nickel Plate6.00 LONG SCREW, 7.11 x 7.81, 5.00 x 5.08, 1.52, 5.10 x 7.90, 11.50
7771M3 / M4Screw SuppliedSNAP-IN PC MOUNT15 Amps.80 Brass, Matte Tin PlateBrass, Nickel Plate6.00 LONG SCREW, 5.00 x 11.50, 6.60 x 5.08, 5.10 x 7.90, 7.11
7768M3 / M4Screw SuppliedSNAP-IN PC MOUNT15 Amps.80 Brass, Matte Tin PlateBrass, Nickel Plate6.00 LONG SCREW, 7.11 x 7.81, 5.00 x 5.08, 1.52, 5.10 x 7.90, 11.50
7772M3 / M4Screw Installed & CaptivatedSNAP-IN PC MOUNT15 Amps.80 Brass, Matte Tin PlateBrass, Nickel Plate6.00 LONG SCREW, 5.00 x 11.50, 6.60 x 5.08, 5.10 x 7.90, 7.11
7769M3 / M4Screw Installed & CaptivatedSNAP-IN PC MOUNT15 Amps.80 Brass, Matte Tin PlateBrass, Nickel Plate6.00 LONG SCREW, 7.11 x 7.81, 5.00 x 5.08, 1.52, 5.10 x 7.90, 11.50
7788M3 / M4No Screw SuppliedPC MOUNT15 Amps.80 Brass, Matte Tin PlateBrass, Nickel Plate6.00 LONG SCREW, 8.00 x 5.00, 4.75 x 6.45, 7.00 x 8.00
7698M3 / M4No Screw SuppliedPC MOUNT15 Amps.80 Brass, Matte Tin PlateBrass, Nickel Plate6.00 LONG SCREW, 8.00 x 5.00, 5.00 x 6.45, 7.00 x 8.00
7795M3 / M4Screw SuppliedPC MOUNT15 Amps.80 Brass, Matte Tin PlateBrass, Nickel Plate6.00 LONG SCREW, 8.00 x 5.00, 4.75 x 6.45, 7.00 x 8.00
7696M3 / M4Screw SuppliedPC MOUNT15 Amps.80 Brass, Matte Tin PlateBrass, Nickel Plate6.00 LONG SCREW, 8.00 x 5.00, 5.00 x 6.45, 7.00 x 8.00
7796M3 / M4Screw Installed & CaptivatedPC MOUNT15 Amps.80 Brass, Matte Tin PlateBrass, Nickel Plate6.00 LONG SCREW, 8.00 x 5.00, 4.75 x 6.45, 7.00 x 8.00
7797M3 / M4Screw Installed & CaptivatedPC MOUNT15 Amps.80 Brass, Matte Tin PlateBrass, Nickel Plate6.00 LONG SCREW, 8.00 x 5.00, 5.00 x 6.45, 7.00 x 8.00
7760M3 / M4No Screw SuppliedSNAP-IN PC MOUNT30 Amps.80 Brass, Matte Tin PlateBrass, Nickel Plate1.93 DIA. HOLE (6) PLS, 10.00 x 7.00, 5.00
7764M3 / M4No Screw SuppliedSNAP-IN PC MOUNT30 Amps.80 Brass, Matte Tin PlateBrass, Nickel Plate1.93 DIA. HOLE (6) PLS, 10.00 x 7.00, 5.00
7761M3 / M4Screw SuppliedSNAP-IN PC MOUNT30 Amps.80 Brass, Matte Tin PlateBrass, Nickel Plate1.93 DIA. HOLE (6) PLS, 10.00 x 7.00, 5.00
7765M3 / M4Screw SuppliedSNAP-IN PC MOUNT30 Amps.80 Brass, Matte Tin PlateBrass, Nickel Plate1.93 DIA. HOLE (6) PLS, 10.00 x 7.00, 5.00
7762M3 / M4Screw Installed & CaptivatedSNAP-IN PC MOUNT30 Amps.80 Brass, Matte Tin PlateBrass, Nickel Plate1.93 DIA. HOLE (6) PLS, 10.00 x 7.00, 5.00
7766M3 / M4Screw Installed & CaptivatedSNAP-IN PC MOUNT30 Amps.80 Brass, Matte Tin PlateBrass, Nickel Plate1.93 DIA. HOLE (6) PLS, 10.00 x 7.00, 5.00
7790M4 / M5No Screw SuppliedHORIZONTAL TYPE SNAP-IN PC MOUNT30 Amps1.14 Brass, Matte Tin PlateBrass, Nickel Plate5.21 x 10.80, 2.57 DIA. HOLE (6) PLS, 10.41, M5 x 10.00 L. SCREW, 11.94 x 17.02, 1.52, 10.80, 11.94, 10.41, 11.51, 12.88, 6.35, 11.68, 1.52, 10.00 x 7.00, 7.87
7792M4 / M5No Screw SuppliedHORIZONTAL TYPE SNAP-IN PC MOUNT30 Amps1.14 Brass, Matte Tin PlateBrass, Nickel Plate5.21 x 10.80, 2.57 DIA. HOLE (6) PLS, 10.41, M4 x 6.00 L. SCREW, 11.94 x 17.02, 1.52, 10.80, 11.94, 10.41, 11.51, 12.88, 6.35, 11.68, 1.52, 10.00 x 7.00, 7.87
7689M4 / M5Screw SuppliedHORIZONTAL TYPE SNAP-IN PC MOUNT30 Amps1.14 Brass, Matte Tin PlateBrass, Nickel Plate5.21 x 10.80, 2.57 DIA. HOLE (6) PLS, 10.41, M5 x 10.00 L. SCREW, 11.94 x 17.02, 1.52, 10.80, 11.94, 10.41, 11.51, 12.88, 6.35, 11.68, 1.52, 10.00 x 7.00, 7.87
7793M4 / M5Screw SuppliedHORIZONTAL TYPE SNAP-IN PC MOUNT30 Amps1.14 Brass, Matte Tin PlateBrass, Nickel Plate5.21 x 10.80, 2.57 DIA. HOLE (6) PLS, 10.41, M4 x 6.00 L. SCREW, 11.94 x 17.02, 1.52, 10.80, 11.94, 10.41, 11.51, 12.88, 6.35, 11.68, 1.52, 10.00 x 7.00, 7.87
7695M4 / M5Screw Installed & CaptivatedHORIZONTAL TYPE SNAP-IN PC MOUNT30 Amps1.14 Brass, Matte Tin PlateBrass, Nickel Plate5.21 x 10.80, 2.57 DIA. HOLE (6) PLS, 10.41, M5 x 10.00 L. SCREW, 11.94 x 17.02, 1.52, 10.80, 11.94, 10.41, 11.51, 12.88, 6.35, 11.68, 1.52, 10.00 x 7.00, 7.87
7794M4 / M5Screw Installed & CaptivatedHORIZONTAL TYPE SNAP-IN PC MOUNT30 Amps1.14 Brass, Matte Tin PlateBrass, Nickel Plate5.21 x 10.80, 2.57 DIA. HOLE (6) PLS, 10.41, M4 x 6.00 L. SCREW, 11.94 x 17.02, 1.52, 10.80, 11.94, 10.41, 11.51, 12.88, 6.35, 11.68, 1.52, 10.00 x 7.00, 7.87
