Description

Product Overview

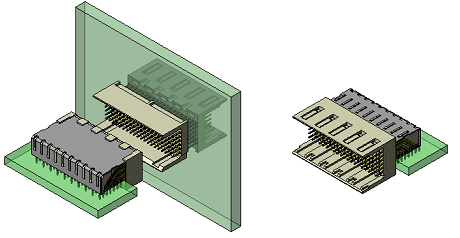

The MJ06 Series is a high-speed signal connector for differential transmission, compatible with backplane/midplane type devices. It offers superior high-speed transmission performance with a balanced transmission structure ideal for differential transmission, allowing for a simplified mounting pattern design. This series is compatible with IEC61076-4-101 mounting dimensions and can be used with the same standard connectors (HM connectors).

Product Attributes

  • Brand: JAE
  • Series: MJ06 Series
  • Origin: Japan Aviation Electronics Industry, Ltd.
  • Certifications: RoHS Compliant
  • Material (Insulator): Glass filled PBT (white)
  • Material (Contact): Copper alloy
  • Finish (Contact Area): Au plating over Ni
  • Finish (Terminal Area): Au flash plating over Ni
  • Finish (Ground Contact): Au plating over Ni

Technical Specifications

Part Number Description No. of Contacts Differential Impedance Crosstalk Rated Voltage Rated Current Operating Temperature Applicable Board Thickness Connection Method Connection Direction Insulator Shape Mating Lock
MJ06-120FRP Angle Socket 120 pos. 100 15(Tr=100ps [10-90%]) 5% max. (Tr=100ps [10-90%]) AC200 Vr.m.s 1A -35 to 85 Deg. C 1.4mm to 5.0mm Press-fit R=Right Angle A=for Angle socket N/A
MJ06-120MSP-A0-A Pin Header Short 120 pos. 100 15(Tr=100ps [10-90%]) 5% max. (Tr=100ps [10-90%]) AC200 Vr.m.s 1A -35 to 85 Deg. C 1.4mm min. (shroud attachment) Press-fit S=Straight A=for Angle socket N/A
MJ06-120MSP-A3-A Pin Header Long 120 pos. 100 15(Tr=100ps [10-90%]) 5% max. (Tr=100ps [10-90%]) AC200 Vr.m.s 1A -35 to 85 Deg. C t3.5 0.3 mm (shroud attachment) Press-fit S=Straight A=for Angle socket N/A
MJ06-120MSP-A5-A Pin Header Long 120 pos. 100 15(Tr=100ps [10-90%]) 5% max. (Tr=100ps [10-90%]) AC200 Vr.m.s 1A -35 to 85 Deg. C t5.0 0.4 mm Press-fit S=Straight A=for Angle socket N/A
MJ06-120MRP-1 Angle Pin Header 120 pos. 100 15(Tr=100ps [10-90%]) 5% max. (Tr=100ps [10-90%]) AC200 Vr.m.s 1A -35 to 85 Deg. C N/A Press-fit R=Right Angle N/A 1=One-action type
MJ06-120S Shroud 120 pos. N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Applications

Factory automation equipment, semiconductor manufacturing equipment, various inspection and measuring devices, server/storage devices, communication/network devices, broadcasting equipment, medical equipment, computers, office machines, measuring devices, telecommunication devices (terminals, mobile devices), AV devices, household applications, FA devices.
