Specifications
Description :
Backplane Connector Accessories RoHS
Mfr. Part # :
D253-50570
Model Number :
D253-50570
Description

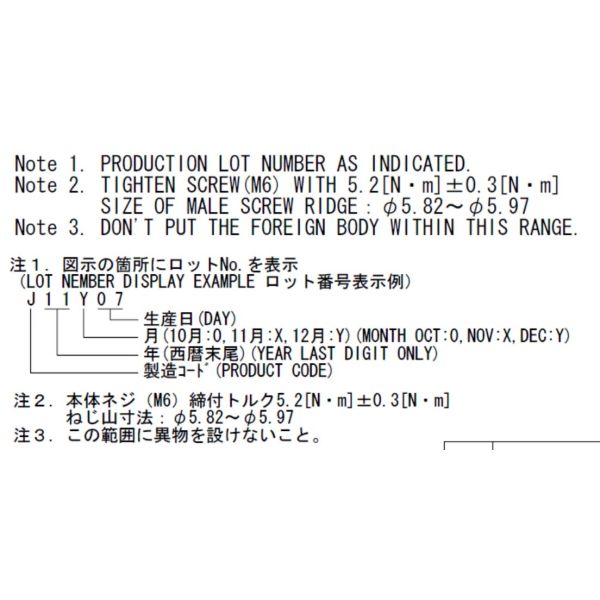

Product Overview

The DW2 Series is a high-current rack and panel connector designed for efficient power and signal connections. It features 2 contacts for high-current (200A) power supply and 20 contacts for signal transmission, enabling simultaneous connection of both. The DW2 Series is suitable for a wide range of applications including storage battery systems, power supply systems, UPS, and other power supply control equipment. It is a UL recognized product, offering electrical shock prevention and a robust housing that integrates power and signal areas.

Product Attributes

  • Brand: JAE
  • Series: DW2 Series
  • Origin: Japan Aviation Electronics Industry, Ltd.
  • Certifications: UL Recognized Product (File No.E67741)
  • Compliance: RoHS Compliant

Technical Specifications

ModelNo. of ContactsRated CurrentRated VoltageContact ResistanceDurabilityOperating TemperatureWire Size (Signal)Floating Amount
DW2 Series (General)2 pos. (power supply)
20 pos. (signal)		200A (power supply)
2A (signal)		600V (power supply)
100V (signal)		0.2mmax. (initial, power supply)
20mmax. (initial, signal)		100 times-25 Deg. C ~ +115 Deg. C22AWG, twisted wire with insulation cover outer diameter 1.5mm Dia.2.75mm
DW2R002ZH12 pos. (power supply)200A (power supply)600V (power supply)0.2mmax. (initial)100 times-25 Deg. C ~ +115 Deg. CN/A2.75mm
DW2P002ZH12 pos. (power supply)200A (power supply)600V (power supply)0.2mmax. (initial)100 times-25 Deg. C ~ +115 Deg. CN/A2.75mm
DW2P02020 pos. (signal)2A (signal)100V (signal)20mmax. (initial)100 times-25 Deg. C ~ +115 Deg. C22AWG, twisted wire with insulation cover outer diameter 1.5mm Dia.N/A
DW2R010110 pos. (signal)2A (signal)100V (signal)20mmax. (initial)100 times-25 Deg. C ~ +115 Deg. C22AWG, twisted wire with insulation cover outer diameter 1.5mm Dia.N/A
DW1S04K4F1 (Socket Contact for Signal)N/AN/AN/AN/AN/AN/A22AWGN/A
DW1P04K4F1 (Pin Contact Long for Signal)N/AN/AN/AN/AN/AN/A22AWGN/A
DW1P04K4F2 (Pin Contact Short for Signal)N/AN/AN/AN/AN/AN/A22AWGN/A
