Medium duty cable connectors CINCH S-2408H-CCT with cadmium plated contacts and UL recognized certifications
Medium duty cable connectors CINCH S-2408H-CCT with cadmium plated contacts and UL recognized certifications
Specifications
Contact Plating :
锡
Operating Temperature :
-
Contact Material :
磷青铜
Description :
Tin Phosphor Bronze Blade Type Power Connector Assemblies RoHS
Mfr. Part # :
S-2408H-CCT
Model Number :
S-2408H-CCT
Description

Product Overview

The Jones Plugs/Sockets Series 2400 are designed for medium-duty cable-to-cable and cable-to-panel applications. These connectors feature polarized housings to prevent incorrect insertion, with plugs offering projecting flat blades and sockets providing recessed twin bellows for robust contact. Strain relief is provided by zinc and clear iridite-plated steel cable clamps. The bifurcated bellows socket contact ensures maximum surface contact with the blade, and recessed pockets with barriers protect the contacts. A shoulder around the mating face of both plugs and sockets offers a finished appearance when mounted. These connectors intermate with existing 400 Series Products.

Product Attributes

  • Series: 2400
  • Plug Prong Dimensions: 0.250" (6.35mm) wide, 0.055" (1.40mm) thick
  • Socket Contact Diameter: 0.093"
  • Insulation Material: Molded monoblock, general purpose phenolic, black
  • Contact Material (Plug): Brass
  • Contact Material (Socket): Phosphor bronze
  • Contact Plating: Cadmium
  • Operating Temperature: Up to +105C
  • Hood Material: Formed metal with dielectric liner
  • Certifications: UL Recognized - file E17021B (UL1977), E130965 (1863); CSA - LR31996-2
  • Marketed exclusively through distribution.

Technical Specifications

Product Type No. of Contacts Catalog No. (Plug) Catalog No. (Socket) Dimensions (M) Dimensions (L) Dimensions (B) Dimensions (R. Max) Dimensions (C) Cable Opening
Series 2400 Less Angle Bracket 2 N/A S-2402-LAB 0.563" (14.29mm) 0.656" (16.67mm) - - - -
Series 2400 Less Angle Bracket 4 P-2404-LAB S-2404-LAB 1.000" (25.40mm) 1.094" (27.78mm) - - - -
Series 2400 Less Angle Bracket 6 P-2406-LAB S-2406-LAB 1.438" (36.51mm) 1.531" (38.89mm) - - - -
Series 2400 Less Angle Bracket 8 P-2408-LAB S-2408-LAB 1.875" (47.63mm) 1.969" (50.01mm) - - - -
Series 2400 Less Angle Bracket 10 P-2410-LAB S-2410-LAB 2.313" (58.74mm) 2.406" (61.12mm) - - - -
Series 2400 Less Angle Bracket 12 P-2412-LAB S-2412-LAB 2.750" (69.85mm) 1.844" (46.83mm) - - - -
Series 2400 With Angle Bracket 2 N/A S-2402-AB 0.563" (14.29mm) 0.656" (16.67mm) - - - -
Series 2400 With Angle Bracket 4 P-2404-AB S-2404-AB 1.000" (25.40mm) 1.094" (27.78mm) - - - -
Series 2400 With Angle Bracket 6 P-2406-AB S-2406-AB 1.438" (36.51mm) 1.531" (38.89mm) - - - -
Series 2400 With Angle Bracket 8 P-2408-AB S-2408-AB 1.875" (47.63mm) 1.969" (50.01mm) - - - -
Series 2400 With Angle Bracket 10 P-2410-AB S-2410-AB 2.313" (58.74mm) 2.406" (61.12mm) - - - -
Series 2400 With Angle Bracket 12 P-2412-AB S-2412-AB 2.750" (69.85mm) 2.844" (72.24mm) - - - -
Series 2400 Shallow Bracket 2 N/A S-2402-SB 1.062" (26.99mm) 1.500" (38.10mm) - 1.766" (19.45mm) - -
Series 2400 Shallow Bracket 4 P-2404-SB S-2404-SB 1.500" (38.10mm) 1.937" (49.21mm) - 1.234" (31.34mm) - -
Series 2400 Shallow Bracket 6 P-2406-SB S-2406-SB 1.938" (49.23mm) 2.375" (60.33mm) - 1.672" (42.47mm) - -
Series 2400 Shallow Bracket 8 P-2408-SB S-2408-SB 2.375" (60.33mm) 2.813" (71.45mm) - 2.109" (53.57mm) - -
Series 2400 Shallow Bracket 10 P-2410-SB S-2410-SB 2.813" (71.45mm) 3.250" (82.55mm) - 2.547" (64.69mm) - -
Series 2400 Shallow Bracket 12 P-2412-SB S-2412-SB 3.250" (82.55mm) 3.688" (93.68mm) - 2.984" (75.80mm) - -
Series 2400 Deep Bracket 2 N/A S-2402-DB 1.313" (33.35mm) 1.750" (44.45mm) 0.922" (23.42mm) - - -
Series 2400 Deep Bracket 4 P-2404-DB S-2404-DB 1.750" (44.45mm) 2.188" (55.58mm) 1.359" (34.53mm) - - -
Series 2400 Deep Bracket 6 P-2406-DB S-2406-DB 2.188" (55.58mm) 2.625" (57.53mm) 1.797" (45.64mm) - - -
Series 2400 Deep Bracket 8 P-2408-DB S-2408-DB 2.625" (66.68mm) 3.063" (77.79mm) 2.234" (56.74mm) - - -
Series 2400 Deep Bracket 10 P-2410-DB S-2410-DB 3.063" (77.80mm) 3.500" (88.90mm) 2.672" (67.87mm) - - -
Series 2400 Deep Bracket 12 P-2412-DB S-2412-DB 3.500" (88.90mm) 3.938" (100.03mm) 3.109" (78.97mm) - - -
Series 2400 With Hood & 90 Clamp 2 N/A S-2402-CCE 1.375" (34.93mm) 0.625" (15.88mm) - - - 0.375" (9.53mm)
Series 2400 With Hood & 90 Clamp 4 P-2404-CCE S-2404-CCE 1.375" (34.93mm) 1.062" (26.99mm) - - - 0.438" (11.11mm)
Series 2400 With Hood & 90 Clamp 6 P-2406-CCE S-2406-CCE 1.375" (34.93mm) 1.500" (38.10mm) - - - 0.438" (11.11mm)
Series 2400 With Hood & 90 Clamp 8 P-2408-CCE S-2408-CCE 1.344" (34.13mm) 1.937" (49.21mm) - - - 0.563" (14.29mm)
Series 2400 With Hood & 90 Clamp 10 P-2410-CCE S-2410-CCE 1.344" (34.13mm) 2.375" (60.33mm) - - - 0.563" (14.29mm)
Series 2400 With Hood & 90 Clamp 12 P-2412-CCE S-2412-CCE 1.312" (33.34mm) 2.813" (71.45mm) - - - 0.625" (15.88mm)

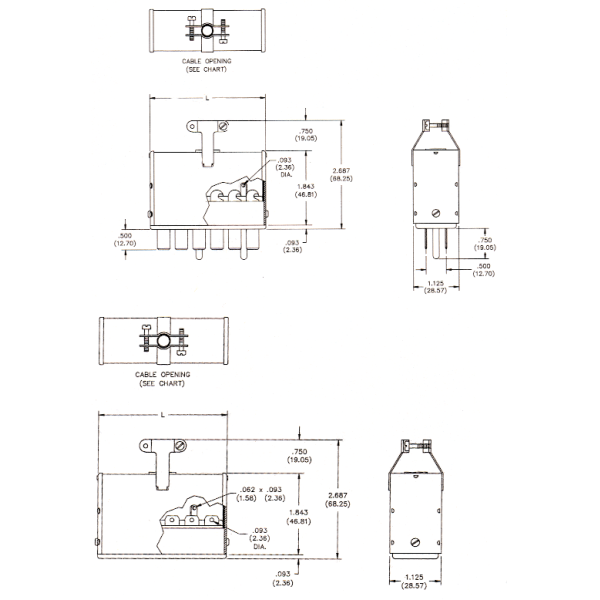

Series 2400 With Hood & 180 Clamp 2 N/A S-2402-CCT - 0.625" (15.88mm) - - - 0.313" (7.94mm)
Series 2400 With Hood & 180 Clamp 4 P-2404-CCT S-2404-CCT - 1.062" (26.99mm) - - - 0.438" (11.11mm)
Series 2400 With Hood & 180 Clamp 6 P-2406-CCT S-2406-CCT - 1.500" (38.10mm) - - - 0.438" (11.11mm)
Series 2400 With Hood & 180 Clamp 8 P-2408-CCT S-2408-CCT - 1.937" (49.21mm) - - - 0.563" (14.29mm)
Series 2400 With Hood & 180 Clamp 10 P-2410-CCT S-2410-CCT - 2.375" (60.33mm) - - - 0.563" (14.29mm)
Series 2400 With Hood & 180 Clamp 12 P-2412-CCT S-2412-CCT - 2.813" (71.45mm) - - - 0.625" (15.88mm)
Electrical Specifications Value
Operating Voltage 250 VAC RMS
Current Rating 15 Amps
Current Resistance 1.0 Milliohms maximum
Panel Cutout Dimensions (Angle Bracket) No. of Contacts A (in) A (mm) B (in) B (mm) C (in) C (mm) Reference
2 1.188 30.16 1.008 25.60 1.015 25.78 S-2402-AB
4 1.625 41.28 1.445 36.70 1.015 25.78 S-2404-AB
6 2.063 52.40 1.886 47.83 1.015 25.78 S-2406-AB
8 2.500 63.50 2.320 58.93 1.015 25.78 S-2408-AB
10 2.938 74.63 2.758 70.05 1.015 25.78 S-2410-AB
12 3.375 85.73 3.195 81.15 1.015 25.78 S-2412-AB
Panel Cutout Dimensions (Shallow Bracket) No. of Contacts A (in) A (mm) B (in) B (mm) C (in) C (mm) Reference
2 1.062 27.00 0.813 20.64 1.156 29.37 S-2402-SB
4 1.500 38.10 1.250 31.75 1.156 29.37 S-2404-SB
6 1.938 49.22 1.688 42.86 1.156 29.37 S-2406-SB
8 2.376 60.34 2.125 53.98 1.156 29.37 S-2408-SB
10 2.812 71.44 2.563 65.10 1.156 29.37 S-2410-SB
12 3.250 82.56 3.000 76.20 1.156 29.37 S-2412-SB
Panel Cutout Dimensions (Deep Bracket) No. of Contacts A (in) A (mm) B (in) B (mm) C (in) C (mm) Reference
2 1.312 33.34 0.938 23.81 1.438 36.51 S-2402-DB
4 1.750 44.46 1.375 34.93 1.438 36.51 S-2404-DB
6 2.188 55.56 1.813 46.04 1.438 36.51 S-2406-DB
8 2.624 66.68 2.250 57.15 1.438 36.51 S-2408-DB
10 3.062 77.80 2.688 68.28 1.438 36.51 S-2410-DB
12 3.500 88.90 3.125 79.38 1.438 36.51 S-2412-DB
