SMT Coin Cell Holder Harwin S8421-45R for CR2032 Battery Applications Tape Reeled 500 Units per Reel
SMT Coin Cell Holder Harwin S8421-45R for CR2032 Battery Applications Tape Reeled 500 Units per Reel
Specifications
Description :
SMD Blade Type Power Connector Assemblies RoHS
Mfr. Part # :
S8421-45R
Package :
SMD
Model Number :
S8421-45R
Description

Product Overview

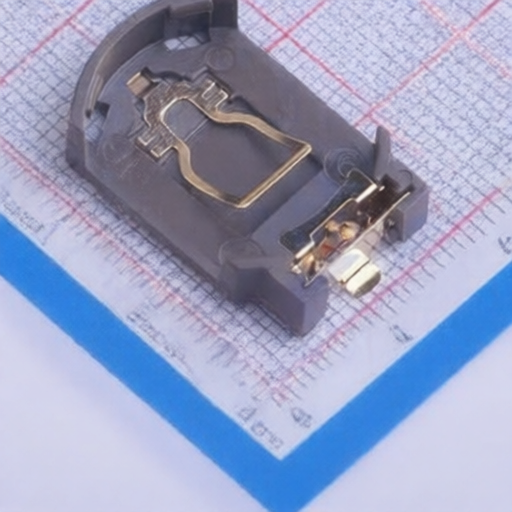

The S8421-45R is a SMT coin cell holder designed for CR2032 batteries. It is supplied on tape and reeled for automated assembly, with 500 units per reel, adhering to EIA-481 standards. This product is suitable for various electronic applications requiring a reliable and compact coin cell power source.

Product Attributes

  • Brand: Harwin
  • Model: S8421-45R
  • Type: SMT Coin Cell Holder
  • Battery Compatibility: CR2032
  • Packaging: Tape & Reeled (500 pcs/reel)
  • Reeling Standard: EIA-481
  • Moulding Material: PPS 30% G/F, UL94V-0, Brown
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold Flash
  • Certifications: UL94V-0

Technical Specifications

SpecificationValue
Contact Resistance30m MAX
Insulation Resistance1000M MIN
Dielectric Voltage220V AC for 1 Minute
Operating Temperature-55 C to +85 C
Tolerances (Linear)X. = 1mm, X.X = 0.50mm, X.XX = 0.20mm, X.XXX = 0.01mm
Tolerances (Angles)5 UNLESS STATED
General Tolerances0.30mm (unless otherwise stated)

2410122113_Harwin-S8421-45R_C5185176.pdf
