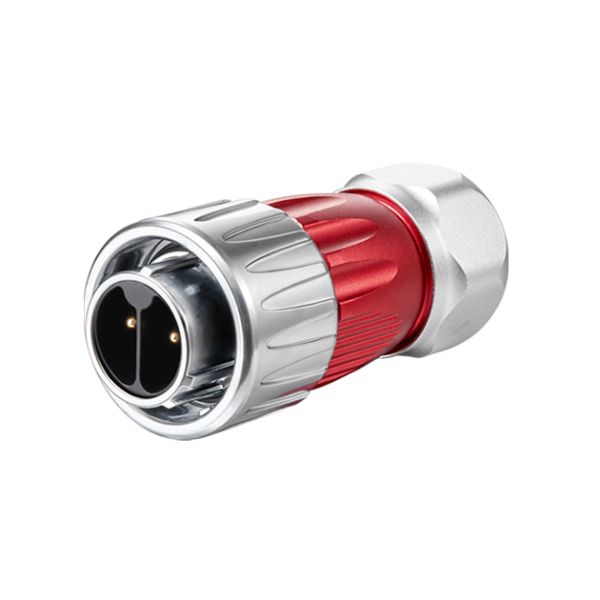

DH-20 2 Pin M20 Waterproof Aviation Power Connector

The DH-20 series industrial circular waterproof connector features a robust M20 metal housing with 2-pin configuration, delivering reliable power transmission in harsh environments. With IP68/IPX9K waterproof rating and 20A 300V electrical capacity, it is engineered for demanding outdoor and industrial applications.

Key Features

• IP68 / IPX9K Protection: Fully sealed against dust ingress and capable of withstanding high-pressure water jets and prolonged submersion.
• High Current Capacity: Rated 20A at 300V, suitable for power-hungry equipment and outdoor installations.
• Durable Metal Housing: One-piece molded zinc alloy and aluminum alloy shell with fashionable metallic texture and excellent corrosion resistance.
• 2-Pin Design: Compact M20 2-pin layout with soldering or crimping wiring options, ensuring secure and stable electrical connections.
• Long Service Life: ≥2000 mating cycles with gold-plated contacts for reliable performance over extended use.
• Wide Temperature Range: Operating from -40℃ to +85℃, suitable for extreme climate conditions.
• Multiple Certifications: UL, TUV, CQC, CE, RoHS, and REACH certified with IATF 16949 quality management system.

Exploded View: Full metal construction with precision-engineered components

Product Specifications

Product Advantage

Visible high-quality craftsmanship and rigorous design, all for an enhanced user experience

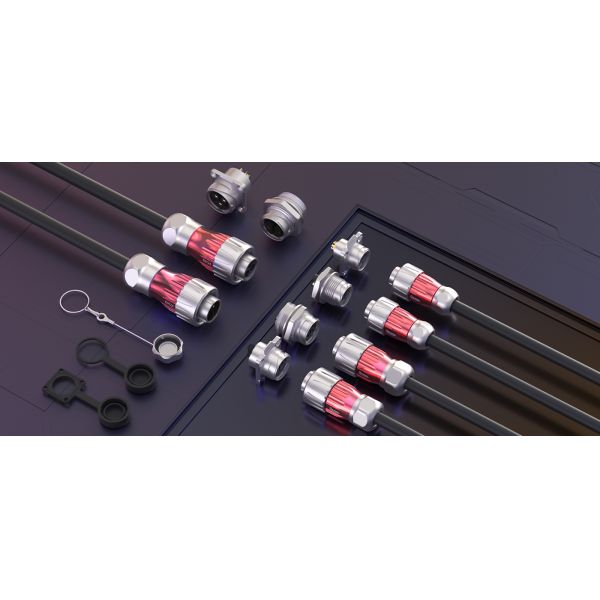

Available Configurations

Applications

The DH-20 waterproof power connector is widely used in:

• Outdoor LED lighting and display systems
• New energy vehicles and electric motorcycles
• Photovoltaic inverters and energy storage systems
• Industrial automation and robotics
• Marine electrical and shipbuilding equipment
• Outdoor monitoring and surveillance systems

Note: Custom cable assemblies with various lengths and connector configurations are available upon request. Contact us for OEM/ODM solutions tailored to your specific application needs.
