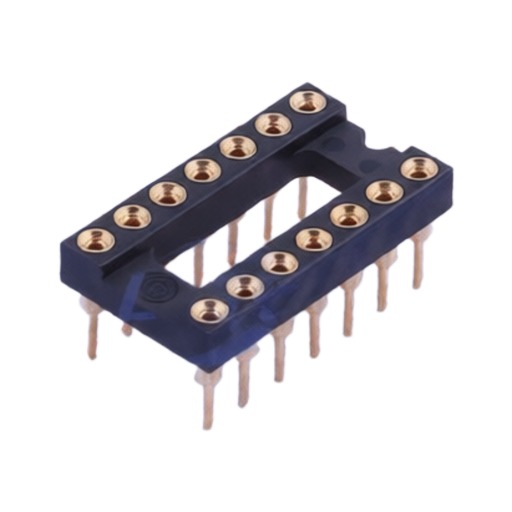

OMRON XR2A-1411-N
OMRON XR2A-1411-N
OMRON XR2A-1411-N
OMRON XR2A-1411-N
Specifications
Brand Name :
XR2A-1411-N
Model Number :
XR2A-1411-N
Packaging Details :
DIP-14
Delivery Time :
6-13 working days
MOQ :
34
Description :
7.62mm DIP-14 IC Sockets RoHS
Row Spacing :
7.62mm
Description

Tools and Accessories (Sold Separately)

IC Holder (XR2Z-11, XR2Z-13): Protects the IC from falling out due to shock (up to 980 m/s). Applicable IC height: 2.7 to 5.6 mm.

IC Removal Tool (XY2C-0101, XY2C-0103): Used for removing ICs. Do not use a screwdriver or testing rod to remove or check ICs to prevent damage to the circuit board or inner clips.

Precautions:

  • Soldering: Ensure the IC Socket outer sleeve does not protrude from the circuit board and prevent flux from entering the socket.
  • Automated Soldering Conditions (Jet Flow): Soldering temperature: 2505C, Continuous soldering time: Within 51 s.
  • Applicable IC Lead Dimensions: Use leads within the specified range (refer to page 2) and longer than 3 mm. Tapered leads are recommended for easier insertion and to minimize lead damage.
  • Contact Construction: Four-point contact for tolerance of momentary power interruptions. Gold-plated contacts are recommended for areas subject to vibration and shock.

Brand

OMRON

Material

Base: PBT resin (UL94 V-0)/black. Inner clip: Beryllium copper/nickel base, gold plated. Outer sleeve: Beryllium copper/nickel base, gold flash plating or Brass/nickel base, gold flash plating.

Ambient Operating Temperature

-55 to 125C (with no condensation or icing)

ModelNo. of IC Socket contactsIC Socket Width (mm)Applicable IC Lead Dimensions (Flat Lead)Applicable IC Lead Dimensions (Round Lead)
XR2Z-1114, 16, 18, 20, 24
XR2Z-1324, 28, 32, 40, 42, 48
XY2C-010114, 16, 18, 207.62
XY2C-010324, 28, 32, 4015.24
XR2A-011-N
XR2A-2463-N
XR2A-2473-N
XR2A-0JJ01-N
XR2A-2461-N
XR2A-2471-N
XR2A-0JJ21-N
XR2A-2467-N
XR2A-2477-N
XR2A-102
XR2A-0811-N80.25-0.46 mm0.41-0.53 mm dia.
XR2A-0801-N80.25-0.46 mm0.41-0.53 mm dia.
XR2A-0821-N80.25-0.46 mm0.41-0.53 mm dia.
XR2A-08028
XR2A-1411-N140.25-0.46 mm0.41-0.53 mm dia.
XR2A-1401-N140.25-0.46 mm0.41-0.53 mm dia.
XR2A-1421-N140.25-0.46 mm0.41-0.53 mm dia.
XR2A-140214
XR2A-1611-N160.25-0.46 mm0.41-0.53 mm dia.
XR2A-1601-N160.25-0.46 mm0.41-0.53 mm dia.
XR2A-1621-N160.25-0.46 mm0.41-0.53 mm dia.
XR2A-160216
XR2A-1811-N180.25-0.46 mm0.41-0.53 mm dia.
XR2A-1801-N180.25-0.46 mm0.41-0.53 mm dia.
XR2A-1821-N180.25-0.46 mm0.41-0.53 mm dia.
XR2A-180218
XR2A-2011-N200.25-0.46 mm0.41-0.53 mm dia.
XR2A-2001-N200.25-0.46 mm0.41-0.53 mm dia.
XR2A-2021-N200.25-0.46 mm0.41-0.53 mm dia.
XR2A-200220
XR2A-2211-N220.25-0.46 mm0.41-0.53 mm dia.
XR2A-2201-N220.25-0.46 mm0.41-0.53 mm dia.
XR2A-2221-N220.25-0.46 mm0.41-0.53 mm dia.
XR2A-220222
XR2A-2411-N240.25-0.46 mm0.41-0.53 mm dia.
XR2A-2401-N240.25-0.46 mm0.41-0.53 mm dia.
XR2A-2421-N240.25-0.46 mm0.41-0.53 mm dia.
XR2A-240224
XR2A-2463-N240.29 +0.09 x 0.46 +0.080.41-0.50 mm dia.
XR2A-2461-N240.29 +0.09 x 0.46 +0.080.41-0.50 mm dia.
XR2A-2467-N240.29 +0.09 x 0.46 +0.080.41-0.50 mm dia.
XR2A-2473-N240.29 +0.09 x 0.46 +0.080.41-0.50 mm dia.
XR2A-2471-N240.29 +0.09 x 0.46 +0.080.41-0.50 mm dia.
XR2A-2477-N240.29 +0.09 x 0.46 +0.080.41-0.50 mm dia.
XR2A-2811-N280.25-0.46 mm0.41-0.53 mm dia.
XR2A-2801-N280.25-0.46 mm0.41-0.53 mm dia.
XR2A-2821-N280.25-0.46 mm0.41-0.53 mm dia.
XR2A-280228
XR2A-3211-N320.25-0.46 mm0.41-0.53 mm dia.
XR2A-3201-N320.25-0.46 mm0.41-0.53 mm dia.
XR2A-3221-N320.25-0.46 mm0.41-0.53 mm dia.
XR2A-320232
XR2A-4011-N400.25-0.46 mm0.41-0.53 mm dia.
XR2A-4001-N400.25-0.46 mm0.41-0.53 mm dia.
XR2A-4021-N400.25-0.46 mm0.41-0.53 mm dia.
XR2A-400240
XR2A-4211-N420.25-0.46 mm0.41-0.53 mm dia.
XR2A-4201-N420.25-0.46 mm0.41-0.53 mm dia.
XR2A-4221-N420.25-0.46 mm0.41-0.53 mm dia.
XR2A-420242
XR2A-4811-N480.25-0.46 mm0.41-0.53 mm dia.
XR2A-4801-N480.25-0.46 mm0.41-0.53 mm dia.
XR2A-480248
XR2A-5011-N500.25-0.46 mm0.41-0.53 mm dia.
XR2A-5001-N500.25-0.46 mm0.41-0.53 mm dia.
XR2A-6411-N640.25-0.46 mm0.41-0.53 mm dia.
XR2A-6401-N640.25-0.46 mm0.41-0.53 mm dia.
XR2A-640264
ItemGold platedGold flash plated
Rated current1 A
Rated voltage300 VAC
Contact resistance20 m max. (at 20 mV, 100 mA max.)
Insulation resistance1,000 M min. (at 500 VDC)
Dielectric strength1,000 VAC for 1 min (leakage current: 1 mA max.)
Insertion force (See note)3.92 N max.
Removal force (See note)0.64 N min.
Insertion durability100 times (0.75-m gold plating), 50 times (0.25-m gold plating)20 times (gold flash plating)
Applicable Wrap Post Wire SizesWrap Post Length
AWG30, AWG28, AWG26, AWG24 (Solid wire: 0.25 to 0.51 mm dia.)3 wires
