Specifications
MOQ :
1872
Packaging Details :
Through Hole
Brand Name :
8420-11B1-RK-TP
Description :
Through Hole IC Sockets RoHS
Model Number :
8420-11B1-RK-TP
Stock :
1872000
Delivery Time :
33-37周
Description

Product Overview

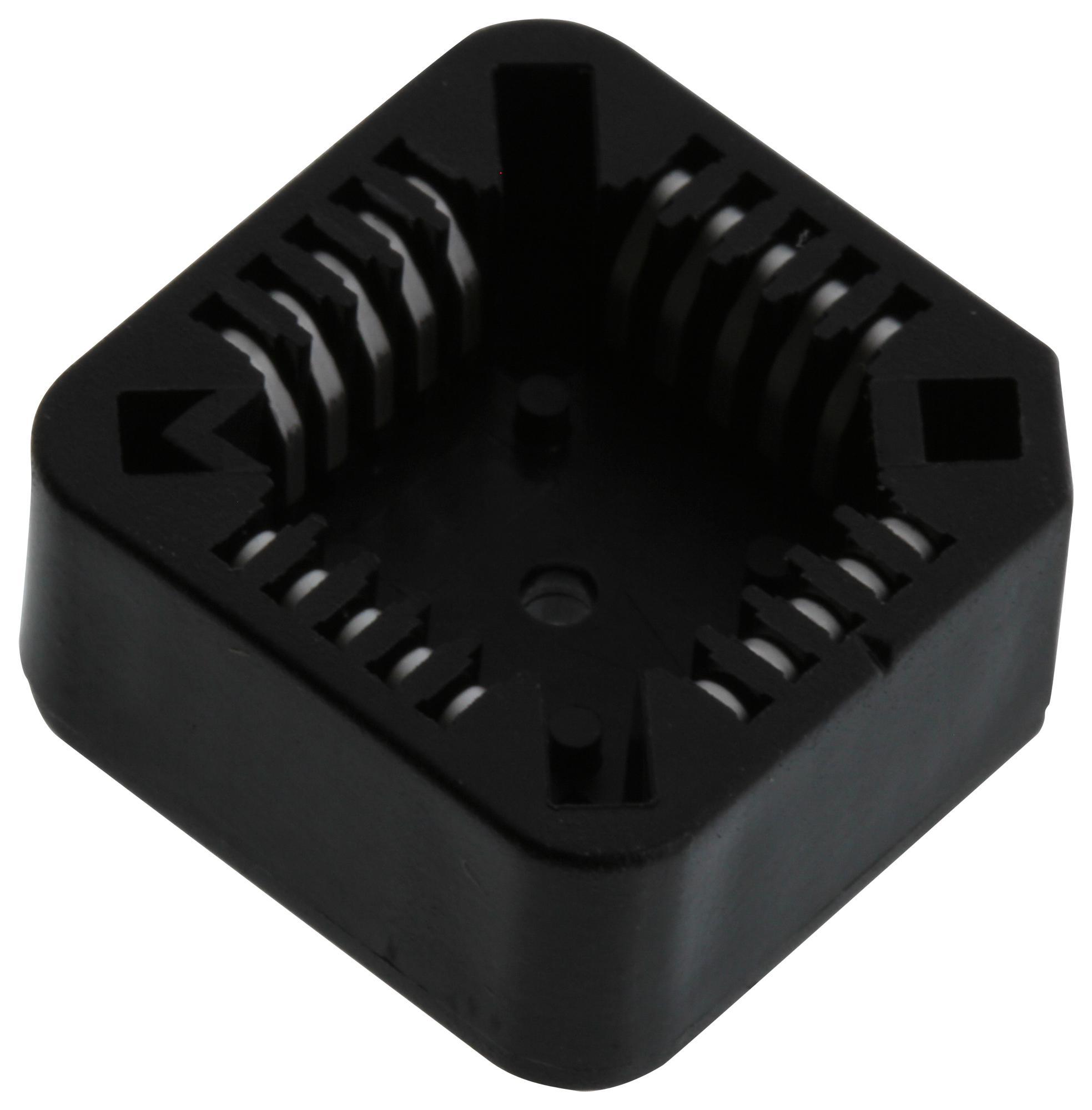

The 3M Chip Carrier Sockets, 8400 Series, are low-profile, four-row, through-hole sockets designed to accept chip carriers conforming to JEDEC outlines MO-047 for square and MO-052 for rectangular devices. These sockets are compatible with automated loading equipment and feature an open-top design for unrestricted airflow and molded slots for easy device extraction. They are suitable for wave soldering but not for reflow soldering. These sockets are RoHS Compliant.

Product Attributes

  • Brand: 3M
  • Product Line: 3M Chip Carrier Sockets
  • Series: 8400 Series
  • Type: Low Profile, Four-Row, Through Hole
  • Insulation Material: Glass Filled Polyester (PBT)
  • Flammability: UL 94V-0
  • Color: Black
  • Contact Material: Copper Alloy
  • Underplating: 50 " [ 1.27 m ] Nickel
  • Wiping Area Plating: 160 ", [ 4.06 m ] Matte Tin
  • RoHS Compliance: Yes (RIA E1 and C1 apply)
  • Packaging: Tubes

Technical Specifications

Specification Value
Accepts Chip Carriers JEDEC outline MO-047 (square) and MO-052 (rectangular)
Contact Resistance 15 m
Insulation Resistance >103 M minimum
Capacitance <1 pF at 1 MHz
Temperature Rating -40C to +105C
Process Rating Wave Solder Only

Ordering Information

Contact Quantity Part Number A (mm [inch]) B (mm [inch]) C (mm [inch]) D (mm [inch])
20 8420-11B1-RK-TP 15.50 [0.611] 15.50 [0.611] 5.08 [0.200] 5.08 [0.200]
28 8428-11B1-RK-TP 18.05 [0.711] 18.05 [0.711] 7.62 [0.300] 7.62 [0.300]
32 8432-11B1-RK-TP 18.05 [0.711] 20.60 [0.812] 7.62 [0.300] 10.16 [0.400]
44 8444-11B1-RK-TP 23.50 [0.926] 23.50 [0.926] 12.70 [0.500] 12.70 [0.500]
52 8452-11B1-RK-TP 25.88 [1.020] 25.88 [1.020] 15.24 [0.600] 15.24 [0.600]
68 8468-11B1-RK-TP 31.05 [1.223] 31.05 [1.223] 20.32 [0.801] 20.32 [0.801]
84 8484-11B1-RK-TP 36.05 [1.420] 36.05 [1.420] 25.40 [1.001] 25.40 [1.001]

Notice: 3M PLCC products have tin plating on the contact wiping surface. Tin whiskers are an inherent characteristic of tin, and mechanical stressing can drive whisker growth. It is possible for PLCC and PLCC sockets to exhibit tin whisker growth after mating. 3M utilizes iNEMI plating recommendations with whisker-mitigating tin plating chemistry to reduce the likelihood of tin whisker growth. Users should consider the suitability of a PLCC socket based on their specific product application's lifespan, environment, mechanical stresses, humidity, and thermal cycling.
