Samtec ZF1-16-02-T-WT-TR
Samtec ZF1-16-02-T-WT-TR
Samtec ZF1-16-02-T-WT-TR
Samtec ZF1-16-02-T-WT-TR
Specifications
Number of Contacts :
16P
Mounting Type :
Surface Mount, Right Angle
Contact Material :
Phosphor Bronze
Packaging Details :
SMD,P=1mm,Surface Mount,Right Angle
Contact Type :
Top Contact
Contact Plating :
Tin
FFC, FCB Thickness :
0.3mm
Operating Temperature :
-55℃~+105℃
Price :
850:$0.9077;1700:$0.8807
Brand Name :
ZF1-16-02-T-WT-TR
Delivery Time :
10-15工作日
Locking Feature :
Slide Lock
Pitch :
1mm
Model Number :
ZF1-16-02-T-WT-TR
MOQ :
850
Description

Product Overview

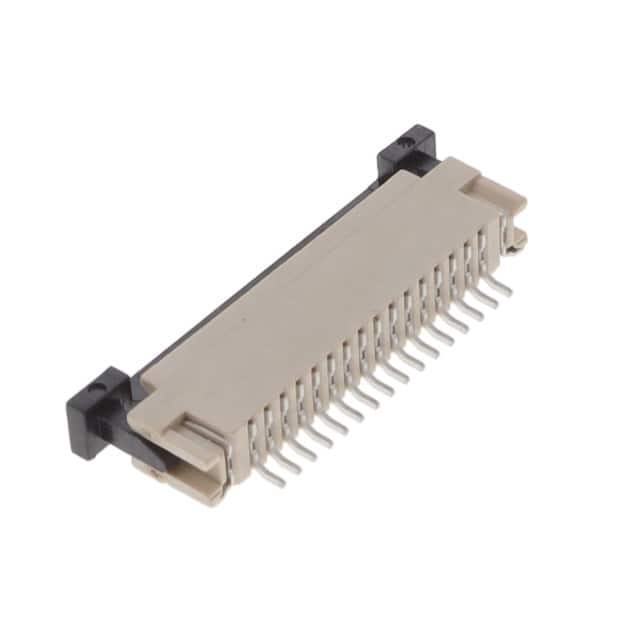

The ZF1 Series is a 1mm Zero Insertion Force (ZIF) assembly designed for reliable interconnectivity. It features a unique cam slider mechanism for easy mating and un-mating, making it ideal for applications requiring frequent connection cycles. The assembly is constructed with high-quality materials to ensure durability and performance.

Product Attributes

  • Brand: Samtec
  • Color (Housing): Natural
  • Color (Cam Slider): Black

Technical Specifications

Part Number SuffixDescriptionLead StylePlating SpecificationPackaging
ZF1-XX-XX-XX-WT-XXZero Insertion Force 1mm Assembly-01: Contact Bottom
-02: Contact Top
-03: Top Entry (See Sheet 3)		-T: Pure Tin, Matte Finish
-TM: Pure Tin, Matte Finish Weld Tab		BLANK: Tubes (See Note 7)
-TR: Tape & Reel (See Notes 8 & 9)
-FR: Full Reel Qty Tape & Reel (See Notes 8 & 9)
MaterialHousingCam SliderContact & Weld TabCertifications
LCP E130i 94-V2PPS D5 94-V2Phos Bronze
SpecificationValue (Imperial)Value (Metric)
Contact Pitch.03937"1.00 mm
Max Flash Allowed.002"
Max Gate Vestige.002"
Contact Minimum Pushout Force6 oz
Weld Tab Retention12 oz
Breakoff Burr.007" Max0.18 mm Max
Tolerances (Decimals).XX: .01"
.XXX: .010"
.XXXX: .XXXX[.XXX]		.XX: 0.4 mm
.XXX: 0.25 mm
Tolerances (Angles)2
