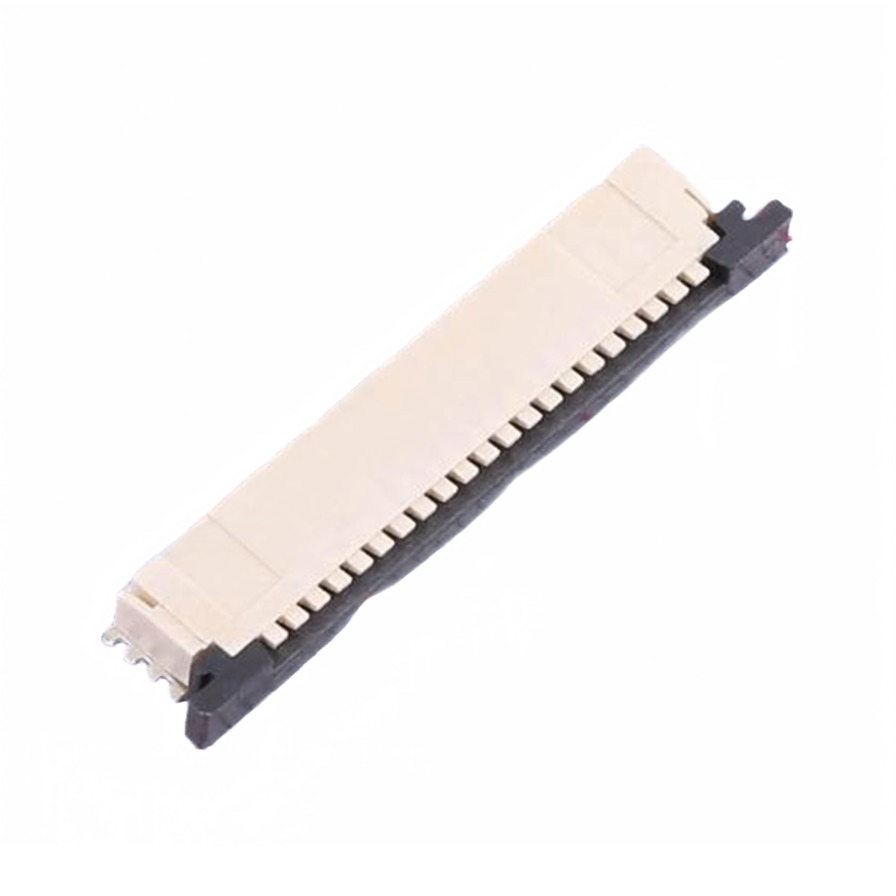

TE Connectivity 2-84953-0
TE Connectivity 2-84953-0
TE Connectivity 2-84953-0
TE Connectivity 2-84953-0
Specifications
Model Number :
2-84953-0
Description :
FFC/FPC Connector 20 Position 1mm Pitch Top Contact Surface Mount, Right Angle -40℃~+85℃
Stock :
4800
Voltage Rating (Max) :
200V
Contact Type :
Top Contact
Locking Feature :
Slide Lock
FFC, FCB Thickness :
0.3mm
Brand Name :
2-84953-0
Current Rating :
1A
Mounting Type :
Surface Mount, Right Angle
Packaging Details :
SMD,P=1mm,Surface Mount,Right Angle
Number of Contacts :
20P
Contact Plating :
Tin
Pitch :
1mm
MOQ :
2400
Contact Material :
Phosphor Bronze
Delivery Time :
13-18工作日
Operating Temperature :
-40℃~+85℃
Description

Product Overview

This 1 mm centerline FPC connector is designed for right-angle, surface mount applications. It features a stuffer actuator for Zero Insertion Force (ZIF) mating and accommodates flexible printed circuits (FPC) with a thickness of 0.3 mm. Ideal for signal applications, it offers a robust solution for flex-to-board connections.

Product Attributes

  • Brand: TE Connectivity
  • Primary Product Color: Natural
  • Housing Material: LCP (Liquid Crystal Polymer)
  • Contact Base Material: Phosphor Bronze
  • Contact Plating Material: Tin
  • Certifications: EU RoHS Directive 2011/65/EU Compliant, EU ELV Directive 2000/53/EC Compliant, UL Report

Technical Specifications

Part NumberDescriptionCenterline (Pitch)Number of PositionsTermination Method to PCBConnector Mounting TypeMating Retention TypeConnector HeightConnector WidthAccepts Flex Cable ThicknessOperating VoltageOperating Temperature RangeContact Current Rating (Max)Actuator Type
2-84953-0FPC Connector, Right Angle, Surface Mount, Stuffer Actuator, Tin, 20 Position1 mm [.039 in]20Surface MountBoard MountZero Insertion Force (ZIF)2.56 mm[.101 in]6.54 mm[.258 in].3 mm[.012 in]200 VAC-40 85 C[-40 185 F]1 AStuffer
