XFCN F0501-B-12-20T-R
XFCN F0501-B-12-20T-R
XFCN F0501-B-12-20T-R
XFCN F0501-B-12-20T-R
Specifications
Voltage Rating (Max) :
50V
Contact Material :
Phosphor Bronze
Contact Type :
Bottom Contact
Mounting Type :
Surface Mount, Right Angle
Contact Plating :
Tin
Brand Name :
F0501-B-12-20T-R
Packaging Details :
SMD,P=0.5mm
Number of Contacts :
12P
Model Number :
F0501-B-12-20T-R
Pitch :
0.5mm
Current Rating :
400mA
Delivery Time :
4-6 weeks
Operating Temperature :
-25℃~+85℃
Description :

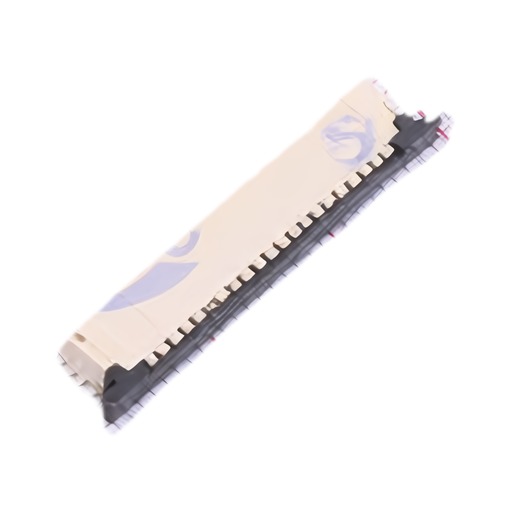

FFC/FPC Connector 12 Position 0.5mm Pitch Bottom Contact
MOQ :
1
Locking Feature :
Slide Lock
Description

Product Overview

This product is a connector designed for electronic applications. It features a specific pitch (0.50mm) and a housing designed for secure connections.

Key Features:

  • Compact design (DIM=C20.L 25)
  • Robust construction with thermoplastic housing (UL94V-0)
  • Reliable electrical characteristics for various applications

Applications:

Suitable for general electronic interconnections where space and reliability are crucial.

Brand

HRAEL

Origin

CHINA

Housing Material

Thermoplastic (UL94V-0)

Slider Material

Thermoplastic (UL94V-0)

Terminal Material

Phosphor Bronze Tin-Leadplated

Fitting Nail Material

Brass Tin-plated

Part Number Prefix

F0501-B-xx-20T

Manufacturer

XFCN CONNECTORS CO., LTD

Date of Manufacture

2010.4.12
Specification Value
Current Rating 0.4A AC/DC
Voltage Rating 50V AC/DC
Temperature Range -25C to +85C
Withstand Voltage 200V AC/Minute
Contact Resistance < 20m
Insulation Resistance 500m
Relative Humidity 93% at +40C
Pitch 0.50mm
Tolerance X Y Angle
0.30 0.08 0.05 0.5
0.20 0.05 0.05 0.3
0.08 0.03 0.03 0.1
