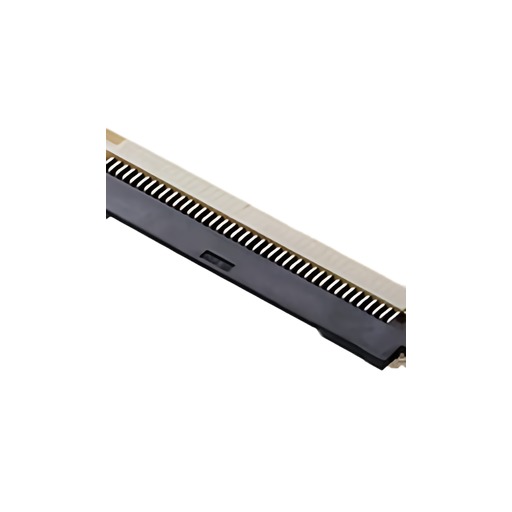

PANASONIC AYF530535A
PANASONIC AYF530535A
PANASONIC AYF530535A
PANASONIC AYF530535A
Specifications
Stock :
500
MOQ :
25
Mounting Type :
Surface Mount, Right Angle
Contact Plating :
Gold
Delivery Time :
6-13 working days
Description :
FFC/FPC Connector 5 Position 0.5mm Pitch Double-Sided Contacts, Top and Bottom Entry Surface Mount, Right Angle -55℃~+85℃
Model Number :
AYF530535A
Number of Contacts :
5P
Contact Type :
Double-Sided Contacts, Top and Bottom Entry
Brand Name :
AYF530535A
Locking Feature :
Hinged Lid
Contact Material :
Copper alloy
FFC, FCB Thickness :
0.3mm
Pitch :
0.5mm
Operating Temperature :
-55℃~+85℃
Packaging Details :
SMD,P=0.5mm,Surface Mount,Right Angle
Description

Product Overview

The AYF53 Series FPC/FFC connectors, featuring a 0.5mm pitch and a space-saving back lock design, offer enhanced lever operability and mechanical design freedom through top and bottom double contacts. These connectors are ideal for a wide range of digital equipment, including mobile phones, smartphones, PCs, digital still cameras, and digital video cameras, particularly for applications like touch panels and LCD backlights that require compact solutions. Available in Y5B and Y5BW models, they provide options for varying contact configurations and advanced FPC holding capabilities.

Product Attributes

  • Series: AYF53
  • Pitch: 0.5mm
  • Lock Type: Back lock
  • Contact Type: Top and bottom double contacts
  • RoHS Compliant: Yes
  • Surface Treatment (Contact/Terminal): Au plating / Au plating (Ni barrier)
  • Housing Material: LCP resin (UL94V-0)
  • Lever Material: LCP resin (UL94V-0)
  • Contact Material: Copper alloy
  • Holding Contact Material: Copper alloy
  • Soldering Terminals Material: Copper alloy

Technical Specifications

Model Number of Pins Part Number (Y5B) Part Number (Y5BW) Height Rated Current Rated Voltage Insulation Resistance Breakdown Voltage Contact Resistance FPC Holding Force (Y5B) FPC Holding Force (Y5BW) Ambient Temperature Storage Temperature Insertion and Removal Life Unit Weight (50 pin)
Y5B 4 AYF530435 - 1.0 mm 0.5A/pin contact (Except for holding contact) 50V AC/DC Min. 1,000M (initial) 250V AC for 1 min. (No short-circuiting or damage at 1 mA) Max. 100m Min. 0.2N/pin contacts pin contacts (initial) - 55C to +85C 55C to +85C (product only) / 40C to +50C (emboss packing) 20 times 0.16 g
Y5B 5 AYF530535 - 1.0 mm Min. 0.2N/pin contacts pin contacts (initial) -
Y5B 6 AYF530635 - 1.0 mm Min. 0.2N/pin contacts pin contacts (initial) -
Y5B 8 AYF530835 - 1.0 mm Min. 0.2N/pin contacts pin contacts (initial) -
Y5B 10 AYF531035 - 1.0 mm Min. 0.2N/pin contacts pin contacts (initial) -
Y5B 12 AYF531235 - 1.0 mm Min. 0.2N/pin contacts pin contacts (initial) -
Y5B 14 AYF531435 - 1.0 mm Min. 0.2N/pin contacts pin contacts (initial) -
Y5B 16 AYF531635 - 1.0 mm Min. 0.2N/pin contacts pin contacts (initial) -
Y5B 24 AYF532435 - 1.0 mm Min. 0.2N/pin contacts pin contacts (initial) -
Y5B 28 AYF532835 - 1.0 mm Min. 0.2N/pin contacts pin contacts (initial) -
Y5B 30 AYF533035 - 1.0 mm Min. 0.2N/pin contacts pin contacts (initial) -
Y5B 32 AYF533235 - 1.0 mm Min. 0.2N/pin contacts pin contacts (initial) -
Y5B 34 AYF533435 - 1.0 mm Min. 0.2N/pin contacts pin contacts (initial) -
Y5B 40 AYF534035 - 1.0 mm Min. 0.2N/pin contacts pin contacts (initial) -
Y5B 42 AYF534235 - 1.0 mm Min. 0.2N/pin contacts pin contacts (initial) -
Y5B 50 AYF535035 - 1.0 mm Min. 0.2N/pin contacts pin contacts (initial) -
Y5BW 2 - AYF530265 1.0 mm Min. 0.2N/pin contacts pin contacts + 2.0N (initial)
Y5BW 3 - AYF530365 1.0 mm Min. 0.2N/pin contacts pin contacts + 2.0N (initial)
Y5BW 4 - AYF530465 1.0 mm Min. 0.2N/pin contacts pin contacts + 2.0N (initial)
Y5BW 6 - AYF530665 1.0 mm Min. 0.2N/pin contacts pin contacts + 2.0N (initial)
Y5BW 8 - AYF530865 1.0 mm Min. 0.2N/pin contacts pin contacts + 2.0N (initial)
Y5BW 10 - AYF531065 1.0 mm Min. 0.2N/pin contacts pin contacts + 2.0N (initial)
Y5BW 12 - AYF531265 1.0 mm Min. 0.2N/pin contacts pin contacts + 2.0N (initial)
Y5BW 14 - AYF531465 1.0 mm Min. 0.2N/pin contacts pin contacts + 2.0N (initial)
Y5BW 22 - AYF532265 1.0 mm Min. 0.2N/pin contacts pin contacts + 2.0N (initial)
Y5BW 26 - AYF532665 1.0 mm Min. 0.2N/pin contacts pin contacts + 2.0N (initial)
Y5BW 28 - AYF532865 1.0 mm Min. 0.2N/pin contacts pin contacts + 2.0N (initial)
Y5BW 30 - AYF533065 1.0 mm Min. 0.2N/pin contacts pin contacts + 2.0N (initial)
Y5BW 32 - AYF533265 1.0 mm Min. 0.2N/pin contacts pin contacts + 2.0N (initial)
Y5BW 38 - AYF533865 1.0 mm Min. 0.2N/pin contacts pin contacts + 2.0N (initial)
Y5BW 40 - AYF534065 1.0 mm Min. 0.2N/pin contacts pin contacts + 2.0N (initial)
Y5BW 48 - AYF534865 1.0 mm Min. 0.2N/pin contacts pin contacts + 2.0N (initial)
Environmental Characteristic Condition Specification
Thermal Shock Resistance (with FPC mated) 5 cycles Insulation resistance min. 100M, contact resistance max. 100m
Humidity Resistance (with FPC mated) 120 hours (Bath temperature 402C, humidity 90 to 95% R.H.) Insulation resistance min. 100M, contact resistance max. 100m
Saltwater Spray Resistance (with FPC mated) 24 hours (Bath temperature 352C, saltwater concentration 51%) Insulation resistance min. 100M, contact resistance max. 100m
H2S Resistance (with FPC mated) 48 hours (Bath temperature 402C, gas concentration 31 ppm, humidity 75 to 80% R.H.) Contact resistance max. 100m
Soldering Heat Resistance Reflow soldering Peak temperature: 260C or less / 300C within 5 sec.
Soldering Heat Resistance Soldering iron 350C within 3 sec.

Dimensions

(Refer to attached diagrams for detailed dimensions and recommended FPC/FFC dimensions.)

  • Overall Height: 1.0 mm
  • Overall Depth: 3.20 mm (3.70 mm with lever)
  • Pitch: 0.50mm 0.10

Packaging

  • Order Unit: 1-inner carton (1-reel) units for volume production.
  • Samples: 50-connector units for mounting check. Small lot orders are possible.
  • Inner Carton: 5,000 pieces (e.g., 4-10 pins)
  • Outer Carton: 10,000 pieces (e.g., 4-10 pins)
