J30J 31-Pin Female Micro Rectangular Connector – Soldered Wire Type
J30J 31-Pin Female Micro Rectangular Connector – Soldered Wire Type
J30J 31-Pin Female Micro Rectangular Connector – Soldered Wire Type
J30J 31-Pin Female Micro Rectangular Connector – Soldered Wire Type
J30J 31-Pin Female Micro Rectangular Connector – Soldered Wire Type
J30J 31-Pin Female Micro Rectangular Connector – Soldered Wire Type
J30J 31-Pin Female Micro Rectangular Connector – Soldered Wire Type
J30J 31-Pin Female Micro Rectangular Connector – Soldered Wire Type
J30J 31-Pin Female Micro Rectangular Connector – Soldered Wire Type
J30J 31-Pin Female Micro Rectangular Connector – Soldered Wire Type
J30J 31-Pin Female Micro Rectangular Connector – Soldered Wire Type
J30J 31-Pin Female Micro Rectangular Connector – Soldered Wire Type
Specifications
Brand Name :
SIPU
Model Number :
J30J-31ZKS
Certification :
ISO9001, RoHS, CE
Place of Origin :
China
MOQ :
50
Price :
Discuss
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000000pcs/year
Delivery Time :
8-12work days
Packaging Details :
Carton
Product name :
J30J 31-Pin Female Micro Rectangular Connector – Soldered Wire Type
Gender :
FeMale
Working current :
3A MAX
insulation resistance :
≥5000MΩ
Dielectric Strength :
600V
ontact resistance :
≤8.0mΩ
Contact spacing :
1.27mm
Contact row spacing :
1.1mm
Number of cores of the same type :
9、15、21、25、31、37、51、66、74、100
Description

J30J 31-Pin Female Micro Rectangular Connector – Soldered Wire Type

Product Overview

The J30J series micro rectangular connectors are widely adopted for compact and high-reliability interconnection applications. Constructed with an aluminum alloy shell, the connectors feature a socket-style inner contact and a solder cup tail for wire termination. They conform to the standards of GJB2446A and MIL-DTL-83513.

Application Scope:
Ideal for electrical circuit systems where lightweight, high-density, and high-reliability connections are essential. Commonly used in aerospace, defense, and industrial control systems that require system miniaturization and weight reduction.

Key Features:

31-core socket configuration (other variants available: 9, 15, 21, 25, 37, 51, 66, 74, and 100 cores)

Socket-type inner contact with solder cup tail for easy wire soldering

Low insertion force for reliable mating and demating

Lightweight and compact design

Excellent electromagnetic shielding performance

Compatible with a wide range of high-density, mission-critical applications

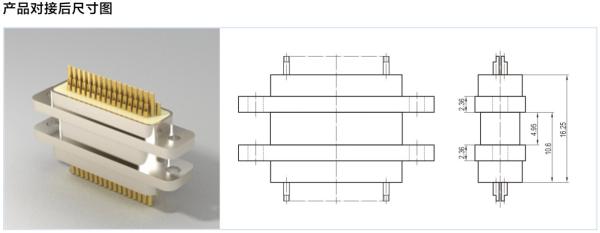

Product Specifications

J30J 31-Pin Female Micro Rectangular Connector – Soldered Wire Type

J30J 31-Pin Female Micro Rectangular Connector – Soldered Wire Type

J30J 31-Pin Female Micro Rectangular Connector – Soldered Wire Type

J30J 31-Pin Female Micro Rectangular Connector – Soldered Wire Type

Important Technical Parameters

Electrical property

Temperature range

 -55～+125℃

Working current

 3A MAX

Contact spacing

 1.27mm

Dielectric withstanding voltage

 600V

Contact row spacing

 1.1mm

Insulation resistance

 ≥5000MΩ

Adaptive wire cross-sectional area

 0.05～0.15mm²

Contact resistance

 ≤8.0mΩ

Number of cores of the same type

Mechanical life

 500 times 9,15,21,25,31,37,51,66,74,100

Materials and Surface Treatment

Center conductor

Beryllium bronze,gold plating

Insulating medium

PPS

Outer conductor

Aluminum alloy,nickel plating

 / /

Product Image Gallery

J30J 31-Pin Female Micro Rectangular Connector – Soldered Wire TypeJ30J 31-Pin Female Micro Rectangular Connector – Soldered Wire TypeJ30J 31-Pin Female Micro Rectangular Connector – Soldered Wire Type
