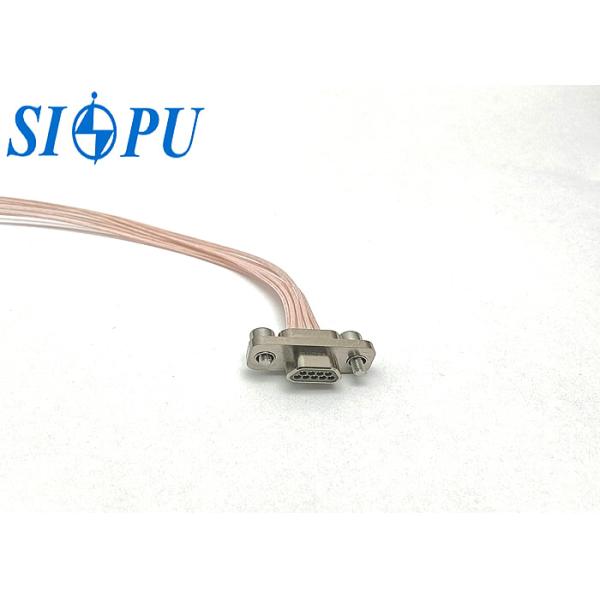

J30J Series 9-Core Micro Rectangular Plug Connector – Screw Crimp Wire Type
J30J Series 9-Core Micro Rectangular Plug Connector – Screw Crimp Wire Type
J30J Series 9-Core Micro Rectangular Plug Connector – Screw Crimp Wire Type
J30J Series 9-Core Micro Rectangular Plug Connector – Screw Crimp Wire Type
J30J Series 9-Core Micro Rectangular Plug Connector – Screw Crimp Wire Type
J30J Series 9-Core Micro Rectangular Plug Connector – Screw Crimp Wire Type
J30J Series 9-Core Micro Rectangular Plug Connector – Screw Crimp Wire Type
J30J Series 9-Core Micro Rectangular Plug Connector – Screw Crimp Wire Type
J30J Series 9-Core Micro Rectangular Plug Connector – Screw Crimp Wire Type
J30J Series 9-Core Micro Rectangular Plug Connector – Screw Crimp Wire Type
J30J Series 9-Core Micro Rectangular Plug Connector – Screw Crimp Wire Type
J30J Series 9-Core Micro Rectangular Plug Connector – Screw Crimp Wire Type
J30J Series 9-Core Micro Rectangular Plug Connector – Screw Crimp Wire Type
J30J Series 9-Core Micro Rectangular Plug Connector – Screw Crimp Wire Type
Specifications
Brand Name :
SIPU
Model Number :
J30J-9TJL
Place of Origin :
China
MOQ :
50
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Price :
Discuss
Supply Ability :
1000000pcs/year
Packaging Details :
Carton
Certification :
ISO9001, RoHS, CE
Delivery Time :
8-12work days
Product name :
J30J Series 9-Core Micro Rectangular Plug Connector – Screw Crimp Wire Type
Gender :
Male
Working current :
3A MAX
insulation resistance :
≥5000MΩ
Dielectric Strength :
600V
ontact resistance :
≤8.0mΩ
Contact spacing :
1.27mm
Contact row spacing :
1.1mm
Number of cores of the same type :
9、15、21、25、31、37、51、66、74、100
Description

J30J Series 9-Core Micro Rectangular Plug Connector – Screw Crimp Wire Type

Product Overview

The J30J series micro rectangular connector is a widely used solution for high-performance electronic systems. This 9-core plug features a lightweight aluminum alloy housing and twisted wire pin contacts, offering a highly reliable connection. The structure complies with the standards of GJB2446A-2001 and MIL-DTL-83513, ensuring compatibility and durability in demanding environments.

Applications
Designed for interconnection in electrical systems requiring high density, lightweight construction, and superior reliability. Commonly used in aerospace, defense, communication equipment, and industrial automation where system weight and stability are critical.

Key Features

9-core male plug with crimp wire terminations (wire length customizable per user requirements)

Screw-lock mounting mechanism for secure installation

Compact size and lightweight aluminum shell

Excellent electromagnetic shielding performance

Low insertion force and high mating reliability

Fully compliant with GJB2446A-2001 and MIL-DTL-83513 standards

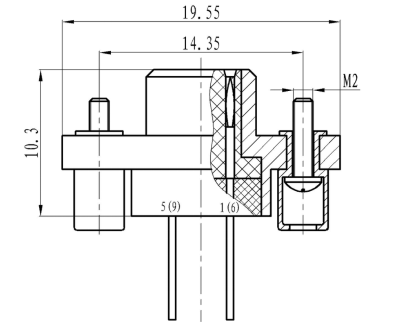

Product Specifications

J30J Series 9-Core Micro Rectangular Plug Connector – Screw Crimp Wire Type

J30J Series 9-Core Micro Rectangular Plug Connector – Screw Crimp Wire Type

Important Technical Parameters

Electrical property

Temperature range

 -55～+125℃

Working current

 3A MAX

Contact spacing

 1.27mm

Dielectric withstanding voltage

 600V

Contact row spacing

 1.1mm

Insulation resistance

 ≥5000MΩ

Adaptive wire cross-sectional area

 0.05～0.15mm²

Contact resistance

 ≤8.0mΩ

Number of cores of the same type

Mechanical life

 500 times 9,15,21,25,31,37,51,66,74,100

Materials and Surface Treatment

Center conductor

Beryllium bronze,gold plating

Insulating medium

PPS

Outer conductor

Aluminum alloy,nickel plating

 / /

Product Image Gallery

J30J Series 9-Core Micro Rectangular Plug Connector – Screw Crimp Wire TypeJ30J Series 9-Core Micro Rectangular Plug Connector – Screw Crimp Wire Type

J30J Series 9-Core Micro Rectangular Plug Connector – Screw Crimp Wire Type

J30J Series 9-Core Micro Rectangular Plug Connector – Screw Crimp Wire Type
