SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type)
SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type)
SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type)
SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type)
SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type)
SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type)
SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type)
SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type)
SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type)
SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type)
SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type)
SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type)
Specifications
Brand Name :
SIPU
Model Number :
SMA-JB2G/SMA-JB2G-SFT-50-2-1-L
Certification :
ISO9001, RoHS, CE
Place of Origin :
China
MOQ :
50
Price :
Provide a quotation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs/year
Delivery Time :
6-8work days
Packaging Details :
master carton
Product name :
SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type)
Characteristic impedance :
50Ω
Dielectric withstanding voltage :
≤±3°
Frequency range :
DC-610MHz
Description

SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type)

Product Overview

RF coaxial cables are critical components for high-efficiency, reliable transmission of electromagnetic signals. They feature two concentric conductors—a central inner conductor and an outer shield—designed to minimize signal loss and provide strong protection against external electromagnetic interference (EMI). Thanks to their excellent electrical and mechanical properties, these cables are widely used in local area networks (LANs), communication systems, and various RF applications.

Cable Classification

Depending on flexibility, RF coaxial cables are commonly categorized into:

Flexible cables

Semi-flexible cables

Semi-rigid (semi-steel) cables

Each cable typically consists of:

Inner conductor – Transmits the RF signal

Dielectric insulation layer – Electrically isolates the inner and outer conductors

Outer conductor (shield) – Prevents EMI and signal leakage

Application Areas

Military electronics, aerospace systems, communication terminals, RFID, mobile communications, and precision test instrumentation.

Product Features

This product is compatible with SFT-50-2-1 semi-rigid RF coaxial cable. It offers:

Low signal loss and excellent phase stability

Superior shielding effectiveness

Mechanical durability and shape retention for fixed routing

Standard cable length: 150 mm

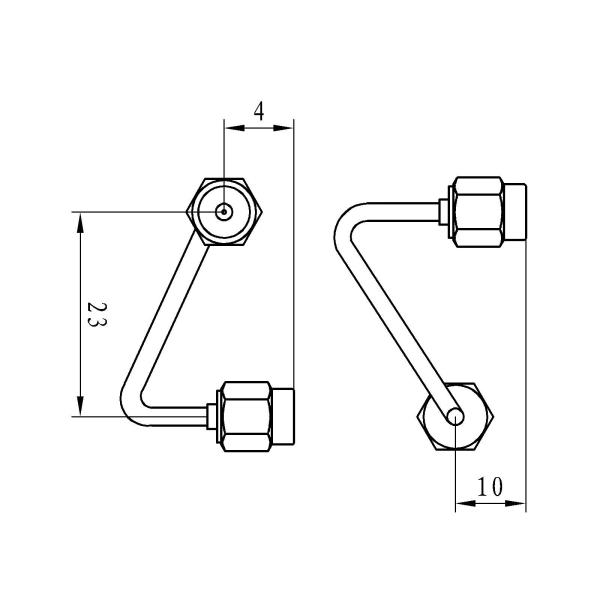

Product Specifications and Testing Standards

SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type)
SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type)
测试图(L=59.8mm)

Important Technical Parameters

Electrical property

Temperature range

 -65～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-610MHz

Dielectric withstanding voltage

 1000V

VSWR

 ≤1.3

Insulation resistance

 ≥5000MΩ

Insertion loss

 ≤0.5dB

Phase consistency

 ≤±3°

Mechanical property

Insertion loss consistency

 ≤±0.1dB

Durability

 500times

Product Image Gallery

SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type)SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type)SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type)

SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type)SMA Male Right-Angle RF Cable Assembly (SFT-50-2-1, Semi-Steel, Solder Type)
