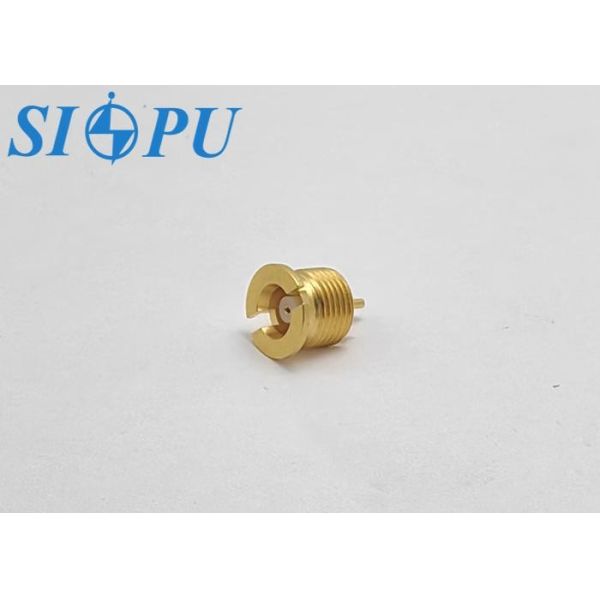

MCX Female RF Coaxial Connector – Microstrip, Threaded Mount
MCX Female RF Coaxial Connector – Microstrip, Threaded Mount
MCX Female RF Coaxial Connector – Microstrip, Threaded Mount
MCX Female RF Coaxial Connector – Microstrip, Threaded Mount
MCX Female RF Coaxial Connector – Microstrip, Threaded Mount
MCX Female RF Coaxial Connector – Microstrip, Threaded Mount
Specifications
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
100
Payment Terms :
L/C, T/T, Western Union
Model Number :
MCX-KYD2-2
Certification :
ISO9001-2017, RoHS, CE
Packaging Details :
Carton
Price :
Discuss
Delivery Time :
5-8Weeks
Product name :
MCX Female RF Coaxial Connector – Microstrip, Threaded Mount
Gender :
Female
Type :
Straight
Material :
Brass
Plating :
Gold
Durability :
500 times
Description

MCX Female RF Coaxial Connector – Microstrip, Threaded Mount

Product Overview

The MCX series RF coaxial connectors feature a compact plug-in interface design, offering small size, light weight, excellent electrical performance, and high reliability. These characteristics make them ideal for applications with strict space and weight constraints.

Applications

Antennas

Base station systems

Instrumentation

GPS modules

Transmission systems

Product Features

Threaded installation, typically mounted within a cavity

Compact and lightweight for space-limited designs

Easy and secure installation

Superior electrical performance and connection reliability

Product Specifications

MCX Female RF Coaxial Connector – Microstrip, Threaded Mount

Important Technical Parameters

Electrical property

Temperature range

 -55～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-6GHz

Dielectric withstanding voltage

 750V

VSWR

 ≤1.35

Insulation resistance

 ≥1000MΩ

Insertion loss

 ≤0.1√F(GHz)dB

Contact resistance

Center conductor

 ≤5.0mΩ

Mechanical property

Outer conductor

 ≤2.5mΩ

Durability

 500times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

 / /

Product Image Gallery

MCX Female RF Coaxial Connector – Microstrip, Threaded MountMCX Female RF Coaxial Connector – Microstrip, Threaded Mount
