Straight MCX Male RF Coaxial Connector – Solder Type for RG316/U Cable
Straight MCX Male RF Coaxial Connector – Solder Type for RG316/U Cable
Straight MCX Male RF Coaxial Connector – Solder Type for RG316/U Cable
Straight MCX Male RF Coaxial Connector – Solder Type for RG316/U Cable
Specifications
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
100
Payment Terms :
L/C, T/T, Western Union
Model Number :
MCX-J3Y
Certification :
ISO9001-2017, RoHS, CE
Packaging Details :
Carton
Price :
Discuss
Delivery Time :
5-8Weeks
Supply Ability :
100000pcs/year
Product name :
Straight MCX Male RF Coaxial Connector – Solder Type for RG316/U Cable
Gender :
Male
Type :
Straight
Durability :
500 times
Material :
Beryllium copper
Plating :
Gold
Insulating medium :
PTFE
Description

Straight MCX Male RF Coaxial Connector – Solder Type for RG316/U Cable

Product Overview

The MCX series is a plug-in self-locking RF connector known for its compact size, superior electrical performance, and reliable contact. It is widely used in applications where space is limited and secure, high-frequency signal transmission is required.

Applications

Transmission systems

GPS modules and antennas

Base station equipment

Instrumentation

Wireless communication systems

Product Features

Straight MCX male interface

Designed for RG316/U coaxial cable

Fixed inner conductor with solder termination

Lightweight, compact, and easy to install

Stable electrical performance with quick plug-in connection

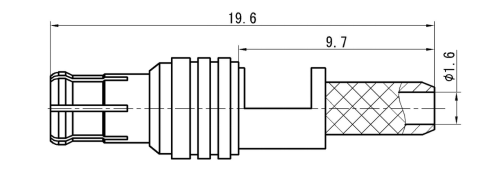

Product Specifications

Straight MCX Male RF Coaxial Connector – Solder Type for RG316/U Cable

Important Technical Parameters

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-6GHz

Dielectric withstanding voltage

 750V VSWR ≤1.3

Insulation resistance

 ≥1000MΩ Insertion loss

≤0.1√F(GHz)dB
Contact resistance Center conductor ≤5.0mΩ Mechanical property
Outer conductor ≤2.5mΩ Durability 500Times

Materials and Surface Treatment

Center conductor

 Brass, gold plating Insulating medium PTFE

Outer conductor

 Beryllium copper, gold plating / /

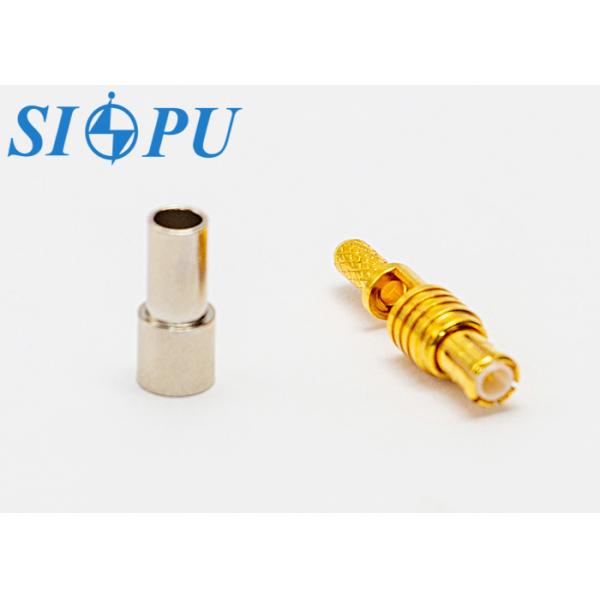

Product Image Gallery

Straight MCX Male RF Coaxial Connector – Solder Type for RG316/U CableStraight MCX Male RF Coaxial Connector – Solder Type for RG316/U Cable
