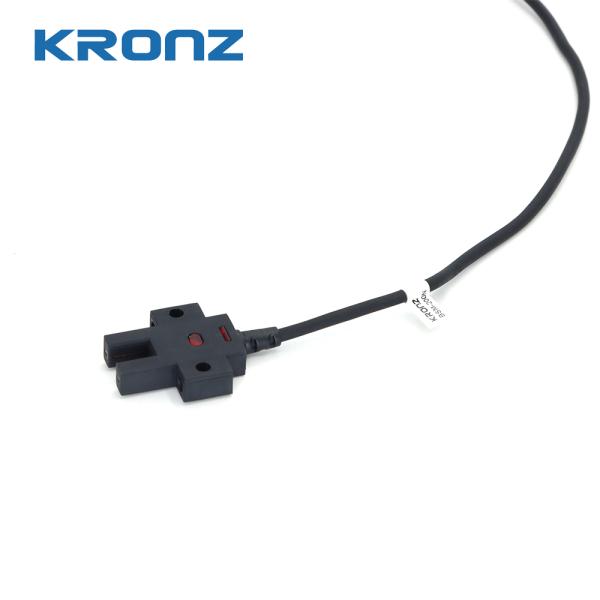

Slot-Type Photoelectric Sensor NPN BSM-200N IP65 Detected Object 1.2 x 0.8mm Opaque Detection Object
Slot-Type Photoelectric Sensor NPN BSM-200N IP65 Detected Object 1.2 x 0.8mm Opaque Detection Object
Slot-Type Photoelectric Sensor NPN BSM-200N IP65 Detected Object 1.2 x 0.8mm Opaque Detection Object
Slot-Type Photoelectric Sensor NPN BSM-200N IP65 Detected Object 1.2 x 0.8mm Opaque Detection Object
Specifications
Brand Name :
KRONZ
Model Number :
BSM-200N
Certification :
CE
Place of Origin :
Guangdong，China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Detection Mode :
Light ON during power-on, Light OFF during detection
Light Source :
GaAs IR LED（940nm）
Response Frequency :
5kHz
Repeatablity :
＜0.03mm below
Residual Voltage :
Below 3V (at load current 100mA, with 2m wire length)
Connection Method :
Connector type, customizable special drag chain cables
Protection Circuit :
Reverse Polarity Protection、Overcurrent Protection、Short-Circuit Protection
mbient Temperature :
Operating：-25~70°C（non-condensing、Ice-resistant）
Ambient Humidity :
Operating/Storage Humidity: 35~95% RH (non-condensing)
Vibration Resistance :
10-55Hz with 1.5mm amplitude, 2 hours each in X, Y, and Z directions
Shock Resistance :
500 m/s² shock applied 10 times each in X, Y, and Z directions
Description

The BSM-200N is a slot-type photoelectric sensor featuring NPN output and IP65 protection rating, designed for precision detection in industrial automation applications. Its U-shaped slot configuration enables reliable detection of object presence, position, and counting functions, meeting the demands of various challenging industrial environments.


Features:

  • Slot-type (U-shaped) design for precise object detection within the gap .

  • NPN output (open collector) with configurable NO/NC (Normally Open/Normally Closed) modes .

  • Slot width: Likely 5–30mm (exact spec to confirm; comparable to SL-305N’s 5mm or SLO30VB6YQ’s 30mm ).

  • Target size: Detects objects as small as 1.2×0.8×mm.

  • Response time: ≤0.3ms (industry standard for high-speed applications ).

  • Operating voltage: 12–24V DC.

  • Output current: ~100mA (typical for NPN sensors ).

  • Protection: Reverse polarity protection


Technical Parameters

Slot-Type Photoelectric Sensor NPN BSM-200N IP65 Detected Object 1.2 x 0.8mm Opaque Detection Object


Product Images

Slot-Type Photoelectric Sensor NPN BSM-200N IP65 Detected Object 1.2 x 0.8mm Opaque Detection Object

Slot-Type Photoelectric Sensor NPN BSM-200N IP65 Detected Object 1.2 x 0.8mm Opaque Detection Object

Slot-Type Photoelectric Sensor NPN BSM-200N IP65 Detected Object 1.2 x 0.8mm Opaque Detection Object


Product Dimension Drawing

Slot-Type Photoelectric Sensor NPN BSM-200N IP65 Detected Object 1.2 x 0.8mm Opaque Detection Object
