Square-Photoelectric Sensor NPN BQ26-H2000N Ditection Distance 10-2000mm
Square-Photoelectric Sensor NPN BQ26-H2000N Ditection Distance 10-2000mm
Square-Photoelectric Sensor NPN BQ26-H2000N Ditection Distance 10-2000mm
Square-Photoelectric Sensor NPN BQ26-H2000N Ditection Distance 10-2000mm
Specifications
Brand Name :
KRONZ
Model Number :
BQ26-H2000N
Certification :
CE
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Ditection Distance :
10-2000mm
Reaction Time :
＜1ms
Control Output :
NPN&PNP: open collector output 24V, Max.100mA(only for main unit) residual voltage:1V
Output Option :
LIGHT-ON/DARK-ON is controlled by white wire. Connecting the white wire to GND is DARK ON, connecting the brown wire or leaving it unconnected is LIGHT ON
Output Function :
1 output port,equipped with short circuit protection and auto. anti-interference function
Light Source :
Red 635NM，4-element LED
Indicator :
Green LED indicator indicates power indicator, red LED indicates output
Power Consumption :
Standard mode: Max. 300mW, Max. voltage: 24V
Description
Square-Photoelectric Sensor NPN BQ26-H2000N Detection Distance 10-2000mm
Product Attributes
Attribute Value
Detection Distance 10-2000mm
Reaction Time ＜1ms
Control Output NPN&PNP: open collector output 24V, Max.100mA(only for main unit) residual voltage:1V
Output Option LIGHT-ON/DARK-ON is controlled by white wire. Connecting the white wire to GND is DARK ON, connecting the brown wire or leaving it unconnected is LIGHT ON
Output Function 1 output port, equipped with short circuit protection and auto. anti-interference function
Light Source Red 635NM，4-element LED
Indicator Green LED indicator indicates power indicator, red LED indicates output
Power Consumption Standard mode: Max. 300mW, Max. voltage: 24V
Product Description
The BQ26-H2000N is a high-performance square-type photoelectric sensor engineered for medium- to long-range object detection. Featuring a detection distance of 10 to 2000mm, this sensor offers a wide sensing range in a compact housing, making it suitable for a variety of industrial automation applications. With NPN open collector output and robust ambient light immunity, the BQ26-H2000N ensures stable and reliable operation even in challenging environments. It is easy to install with standard mounting options and includes a visible status indicator for convenient alignment and status monitoring.
Key Features:
  • Detection Distance: 10mm to 2000mm (adjustable depending on target reflectivity)
  • Output Type: NPN open collector for sinking input control systems
  • Sensor Type: Diffuse reflective (no need for external reflector or receiver)
  • Compact Square Housing: Durable and space-efficient design
  • Fast Response Time: Ideal for high-speed object detection
  • Operation Indicator: LED for visual status confirmation
  • Ambient Light Immunity: Performs reliably in variable lighting conditions
  • Wide Voltage Range: Compatible with standard 12-24V DC control systems
  • Easy Installation: Standard mounting holes for brackets or panels
Technical Parameters
Square-Photoelectric Sensor NPN BQ26-H2000N Ditection Distance 10-2000mm

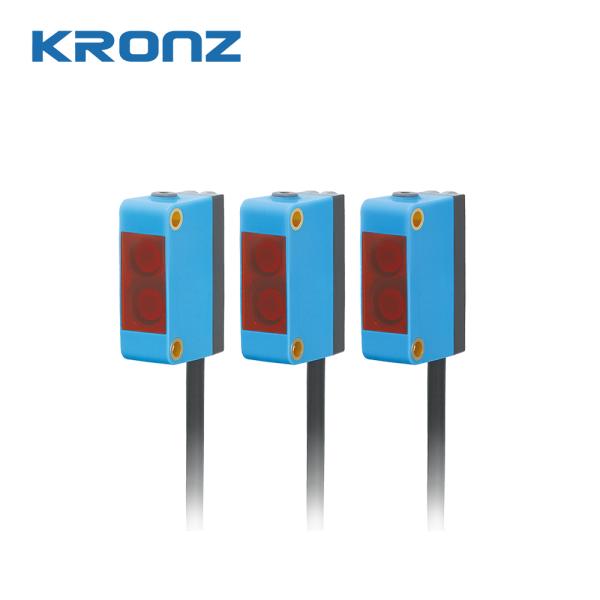

Product Images
Square-Photoelectric Sensor NPN BQ26-H2000N Ditection Distance 10-2000mm Square-Photoelectric Sensor NPN BQ26-H2000N Ditection Distance 10-2000mm
Product Dimension Drawing
Square-Photoelectric Sensor NPN BQ26-H2000N Ditection Distance 10-2000mm
