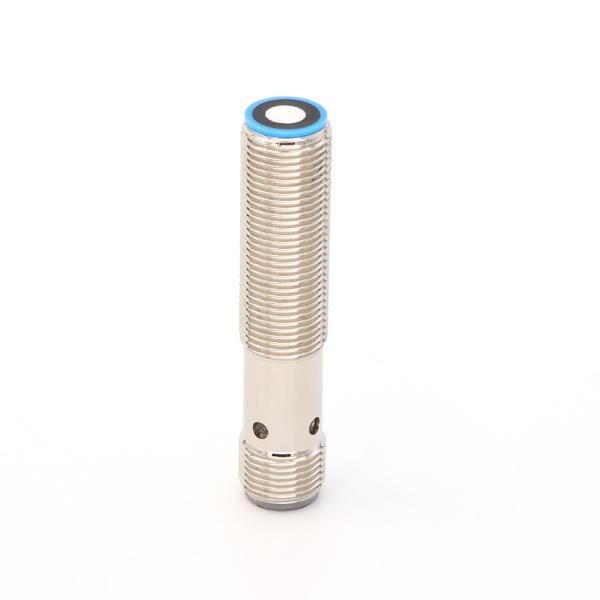

U12 Industrial Ultrasonic Sensor 4 Pin Detection Range 20-200mm M12 Connector IP67
U12 Industrial Ultrasonic Sensor 4 Pin Detection Range 20-200mm M12 Connector IP67
U12 Industrial Ultrasonic Sensor 4 Pin Detection Range 20-200mm M12 Connector IP67
U12 Industrial Ultrasonic Sensor 4 Pin Detection Range 20-200mm M12 Connector IP67
Specifications
Brand Name :
KRONZ
Model Number :
U12-D200IT-R00A
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
5 pieces
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Description :
U12 Ultrasonic Sensors 20-200mm
Detection Range :
20-200mm
Output :
Analog current output 4-20mA
Supply Voltage :
10-30V DC,reverse-polarity protection
Blind zone :
0-20mm
Repeatability :
±0.15% F.S.
Response Time :
22ms
No-load Current :
≤30mA
Description
U12 Industrial Ultrasonic Sensor 4 Pin Detection Range 20-200mm M12 Connector IP67
Key Specifications
Attribute Value
Description U12 Ultrasonic Sensors 20-200mm
Detection Range 20-200mm
Output Analog current output 4-20mA
Supply Voltage 10-30V DC, reverse-polarity protection
Blind zone 0-20mm
Repeatability ±0.15% F.S.
Response Time 22ms
No-load Current ≤30mA
Product Overview

The U12 Ultrasonic Sensor features a 20-200mm detection range with 4-pin M12 connector and IP67 enclosure rating, making it ideal for industrial applications requiring precise close-range detection.

Main Features
  • M12 installation threaded sleeve with compact 57mm length
  • Minimal blind zone and narrow sound cone for fine detection
  • Analog current output (4-20mA)
  • Distance learning function via white lines
  • Built-in temperature compensation
  • Standard operating voltage DC 10-30V
Technical Specifications
Model U12-D200IT-R00A
Detection range 20-200mm
Blind zone 0-20mm
Resolution 0.1mm
Repeatability ±0.15%F.S.
Accuracy ±1% (with temperature drift compensation)
Response time 22ms
Initialization time < 500ms
Supply voltage 10-30V DC, reverse-polarity protection
LED Indicators Red: No object detected (Lights up), Green: Object detected (Lights up)
Overcurrent protection 200mA (LEDs flash simultaneously)
Load impedance I/ < 300 Ohm, U/ > 1k Ohm
No-load current ≤30mA
Input type Teach-in and synchronization
Material Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating IP67
Connection type 4-pin M12 connector
Ambient temperature -25℃ to +70℃ (248~343K)
Storage temperature -40℃ to +85℃ (233~358K)
Weight 20g
Output type I: 1 analog current output 0-10V
Dimensional Drawing
U12 Industrial Ultrasonic Sensor 4 Pin Detection Range 20-200mm M12 Connector IP67
