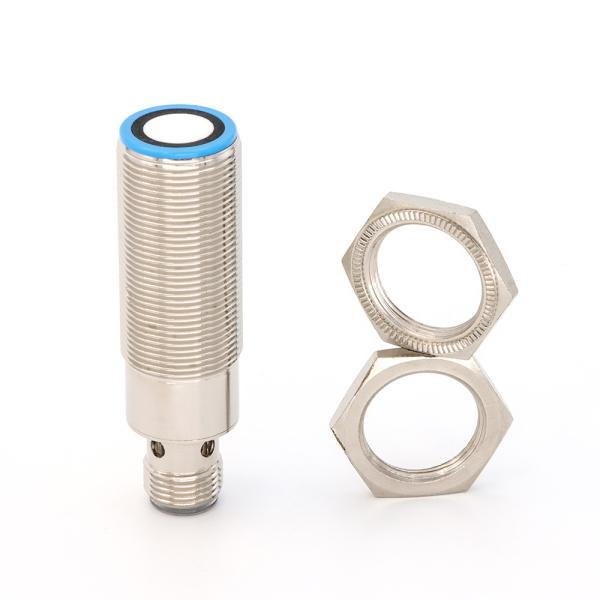

M12 Connector Ultrasonic Sensor U18 Analog Output 0-10V 4-20mA
M12 Connector Ultrasonic Sensor U18 Analog Output 0-10V 4-20mA
M12 Connector Ultrasonic Sensor U18 Analog Output 0-10V 4-20mA
M12 Connector Ultrasonic Sensor U18 Analog Output 0-10V 4-20mA
Specifications
Brand Name :
Kronz
Model Number :
U18-D500UIT-R00A
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
10 pieces
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Production Name :
U18 Ultrasonic Sensor
Sopply Voltage :
10-30VDC
Blind Zone :
0-50mm
Resolution :
0.15mm
Response Time :
32ms
No-load Current :
≤30mA
Input type :
Teach-in and synchronization
Weight :
35g
Description
M12 Connector Ultrasonic Sensor U18 Analog Output 0-10V 4-20mA
Product Specifications
Attribute Value
Production Name U18 Ultrasonic Sensor
Supply Voltage 10-30VDC
Blind Zone 0-50mm
Resolution 0.15mm
Response Time 32ms
No-load Current ≤30mA
Input type Teach-in and synchronization
Weight 35g
Ultrasonic Sensor U18 Analog Output 0-10V 4-20mA Detection 50-500mm M12 Connector

The U18-D500UIT-R00A ultrasonic sensor features a detection range of 50-500mm with 10-30VDC supply voltage and reverse-polarity protection. This sensor provides both analog voltage output (0-10V) and analog current output (4-20mA) with up/down capability, making it ideal for precise distance measurement and object detection applications.

Key Features
  • M18 mounting thread sleeve for easy installation
  • Dual output: 0-10V analog voltage and 4-20mA analog current
  • Detection distance learning function via gray lines
  • Built-in temperature compensation
  • Standard working voltage DC 10-30V
Technical Specifications
Model U18-D500UIT-R00A
Detection range 50-500mm
Blind zone 0-50mm
Resolution 0.15mm
Repeatability ±0.15%F.S.
Accuracy ±1% (with temperature compensation)
Response time 32ms
Initialization time < 500ms
Supply voltage 10-30V DC, reverse-polarity protected
LED indicators Red (no object detected), Green (object detected)
Overcurrent protection 200mA
Load impedance I/ < 300 Ohm, U/ > 1k Ohm
No-load current ≤30mA
Input type Teach-in and synchronization
Material Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating IP67
Connection type 5pin, M12 connector
Ambient temperature -25℃ ~ +70℃
Storage temperature -40℃ ~ +85℃
Weight 35g
Output type 1 analog voltage output 0-10V + 1 analog current output 4-20mA, up/down
Dimensional Drawing
M12 Connector Ultrasonic Sensor U18 Analog Output 0-10V 4-20mA
