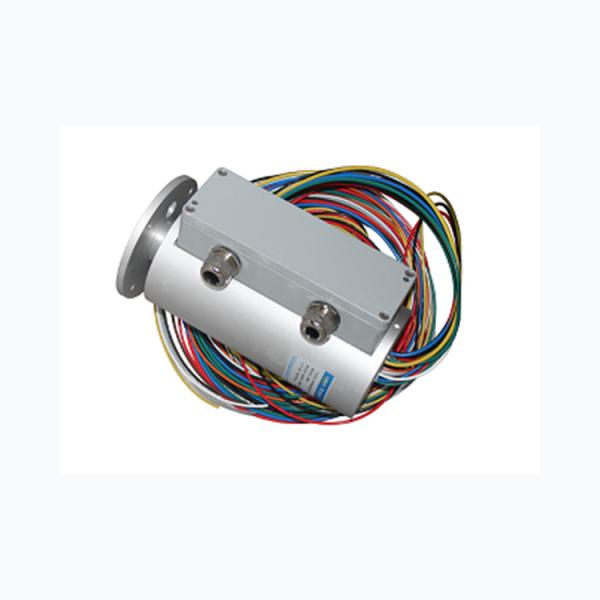

Haurem 1000A High Current Slip Rings For High Power Totary Equipments / Mine Equipments
Haurem 1000A High Current Slip Rings For High Power Totary Equipments / Mine Equipments
Haurem 1000A High Current Slip Rings For High Power Totary Equipments / Mine Equipments
Haurem 1000A High Current Slip Rings For High Power Totary Equipments / Mine Equipments
Specifications
Brand Name :
Haurem
Model Number :
HRI series
Certification :
CE RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500pieces/month
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Advatage :
High current, high lubricity,low friction, low contact wear, low noise
Channel :
1~24
Contact Resistance :
≤10mΩ ( 50rpm )
Electrical Noise :
Max 30mΩ
Operating Humidity :
60%RH or higher
Rotating Speed :
200RPM
Series :
High current slip ring
Temperature :
-40℃~+80℃
Voltage Rating :
400VAC/VDC
High light :
Anti-interference design and no noise in transimission
Description

We Haurem compnay's HRI series High current slip ring is specially designed for the high power totary equipments, rated current for each ring can be achieved to 1000A.
Low cost, high stability and reliability, can transmit signal and power together, low dynamic resistance fluctuation.

Electrical Spec. 　 Mechanical Spec
Rating voltage 380VAC Speed 500Rpm
Rating current 500~1000A/ring Lead Wire 12 color 1.0mm 2 wire
Insulation resistance 1000MΩ@500VDC Torque 60N.cm
Dielectric strength 1000VDC@50HZ Seal class IP54
Contact resistance <30 mΩ Contact material Precious Metal
Electrical noise 10mΩ@6VDC,50mA,5Rpm Life 50 millions revolution
　 　 　 　 　
Electrical Spec.
Working temperature -40℃~+280℃ Humidity 10% to 90% RH
Mechanical vibration MIL-SID-810E Environmental certification Lead Free,RoHS compliant
CE Certified YES 　 　

Optional

◆ Lead wire length;
◆ Flange for set up;
◆ Various radial exits are available;
◆ Can combine more circuits:1-72 rings;
◆ High protection class: IP65 is optional;
◆ Can custom high temperature up to 280 degrees;
◆ Aviation connector is optional;
◆ Screen cable;
◆ Transimission frequency is up to 500MHz;
◆ Can combine high speed data in same slip ring under Ethernet,USB and Profibus ;
◆ Available for Thermocouple signal ;
◆ Gas pressure and/or fluid pressure hyrid ;
◆ Signal,coaxial cable and/or power wire mixed;
◆ High voltage, large current(1000A,10000V);
◆ Military rank.

Haurem 1000A High Current Slip Rings For High Power Totary Equipments / Mine Equipments

As a precious slip ring manufacturer for more than 10 years,Hunan Haurem Technology Co. Ltd. (HRM) owns a skilled management team and excellent design team already developed more than then thousands slip ring solutions, this keeps our technology advanced always around the world.

According to your special application requirements, our technical team will customize the slip ring with economically,high quality and reliability for you, please contact us at anytime.
