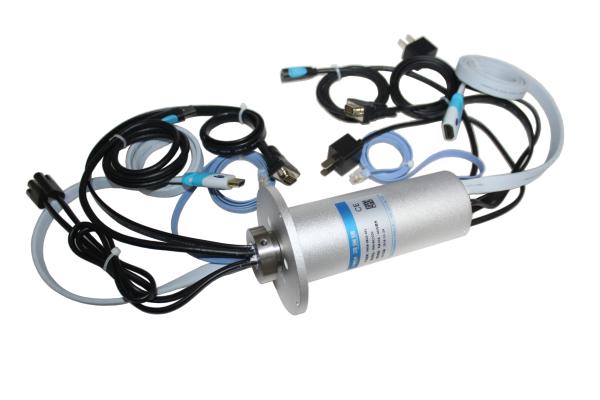

1000VAC/VDC High Current Slip Ring 2000A Low Dynamic Resistance Fluctuation
1000VAC/VDC High Current Slip Ring 2000A Low Dynamic Resistance Fluctuation
1000VAC/VDC High Current Slip Ring 2000A Low Dynamic Resistance Fluctuation
1000VAC/VDC High Current Slip Ring 2000A Low Dynamic Resistance Fluctuation
1000VAC/VDC High Current Slip Ring 2000A Low Dynamic Resistance Fluctuation
1000VAC/VDC High Current Slip Ring 2000A Low Dynamic Resistance Fluctuation
Specifications
Brand Name :
Haurem
Model Number :
HRI150
Certification :
CE RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pieces/month
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Advatage :
high current low cost high stability and reliability
Channel :
1~36
Contact Resistance :
≤10mΩ ( 50rpm )
Electrical Noise :
Max 30mΩ
Feature :
precious metals and multi contact points in each circuit
Operating Humidity :
60%RH or higher
Rotating Speed :
300RPM
Series :
Conductive Slip Ring
Temperature :
-40℃~+80℃
Voltage Rating :
1000VAC/VDC
Description

1000V high current conductiove slip ring rated current for each ring can be achieved to2000A

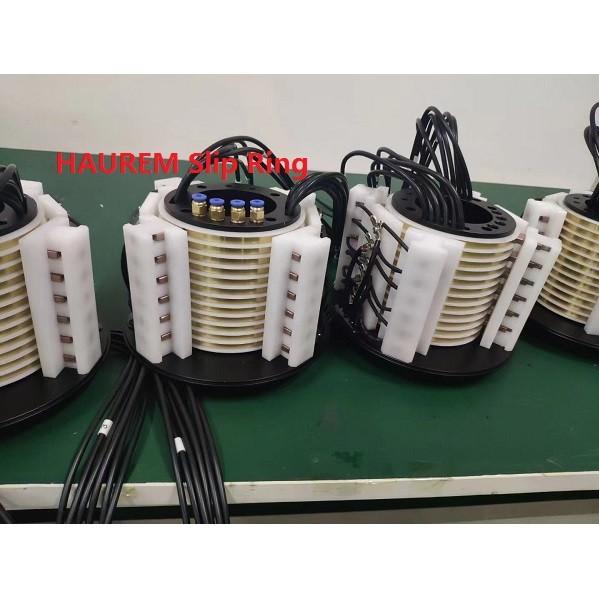

Haurem company's HRI conductive slip ring is specially designed for the high power totary equipments, rated current for each ring can be achieved to 10000A. Our advantages for high current slip ring are low cost, high stability and reliability, can transmit signal and power together, low dynamic resistance fluctuation.

Electrical Spec.
Circuit 2~12 Housing material Stainless
Rating voltage 1000 VDC/VAC Speed 100RPM
Rating current 25000A/ring Torque 60N.cm
Lifetime >80 millions Rotation Contact material Precious Materal
Electrical noise <30mΩ Contact resistance <10 mΩ
Dielectric strength 1000VDC@50Hz Lead Wire Screw
Insulation resistance 1000MΩ@600VDC Lead length 300mm
Working temperature -40°C to 80°C Seal class IP51~IP68
Mechanical vibration MIL-SID-810E Humidity 10% to 60% RH
Environmental certification Lead Free,RoHS compliant CE Certified Yes

1000VAC/VDC High Current Slip Ring 2000A Low Dynamic Resistance Fluctuation

Our Haurem conductive slip rings are widely adopted in Wind energy, Aerospace,Industrial automation,Intelligent robots,Engineering machinery,Measurement instruments,Medial equipments,Packaging machinery,Security etc. fields. They are specialized in continuous transmission for medium and pressure of power, signal,pneumatic,hydraulic under 360° unrestrained rotation to make sure the whole system will be steady rotating without any damage to the prone wires.

According to your special application requirements, our technical team will customize the slip ring with economically,high quality and reliability for you, please contact us at anytime.
