GK1256-12P series hollow conductive slip ring, its product inner diameter is 12.7 mm, outer diameter is 56 mm, with 12 circuit channels, rated voltage 0~440VDC/VAC. Working temperature -30℃~+80℃, can be upgraded to gold-plated contacts (life 50 million revolutions/D2 level), stainless steel shell or -40℃ low temperature material.

GK1256-12P series hollow conductive slip ring Product Features:
1. Supports 12 independent current transmissions, each channel is designed with overcurrent protection, and can be customized to solve the circuit + signal mixing problem.
2. The shell is CNC processed with a tolerance within ±0.3mm.
3. It can be upgraded to industrial or high-end styles, and the service life is doubled, realizing long-term disassembly and replacement of slip rings, saving worry and effort.
4. Equipped with a stopper, it is easy to install and maintain, and can be easily integrated into the compact rotary joint design.
5. Small torque, low friction, and smooth rotation. The design of the middle hole size caters to the general size of international machinery, making replacement more convenient.

GK1256-12P series hollow conductive slip ring Product Parameters

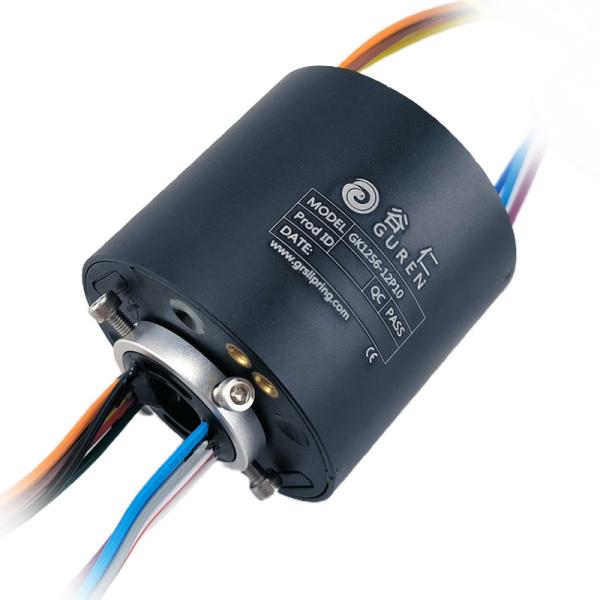

GK1256-12P series hollow conductive slip ring Product images

GK1256-12P series hollow conductive slip ring application

Wind power generation: connecting the rotating nacelle (generator, control system) with the fixed tower (grid, control system)
Industrial automation/robotics: rotating worktable/indexing plate, robot joints
Medical imaging equipment: CT scanner, X-ray machine (rotating C-arm)
Packaging machinery/filling equipment: power supply and signal control of filling head and labeling head
Testing equipment: such as turntable test, centrifugal test, etc.
Security monitoring: high-speed dome camera Ship/maritime: such as rotating radar mast, pod thruster, crane, etc.
