2 Wire Slip Ring 2A ID 5mm OD 22mm Through Hole Slip Ring 360 Degree Rotation
2 Wire Slip Ring 2A ID 5mm OD 22mm Through Hole Slip Ring 360 Degree Rotation
2 Wire Slip Ring 2A ID 5mm OD 22mm Through Hole Slip Ring 360 Degree Rotation
2 Wire Slip Ring 2A ID 5mm OD 22mm Through Hole Slip Ring 360 Degree Rotation
2 Wire Slip Ring 2A ID 5mm OD 22mm Through Hole Slip Ring 360 Degree Rotation
2 Wire Slip Ring 2A ID 5mm OD 22mm Through Hole Slip Ring 360 Degree Rotation
2 Wire Slip Ring 2A ID 5mm OD 22mm Through Hole Slip Ring 360 Degree Rotation
2 Wire Slip Ring 2A ID 5mm OD 22mm Through Hole Slip Ring 360 Degree Rotation
Specifications
Brand Name :
GUREN
Model Number :
GK0522-2PS
Certification :
ISO9001.CE.ROHS
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Outer Diameter :
22mm
Inner Diameter :
5mm
Contact material :
Gold-Gold
Single channel current :
2A
Circuit :
2-way
Speed :
150rpm
Description

GK0522-2PS is a through-hole slip ring with a very small center hole. Its inner diameter is 5mm and outer diameter is 22mm. It can pass 2A current and is mainly used in fields with extremely high requirements for spatial accuracy and rotation stability.



GK0522-2PS through-hole slip ring product features

1. Center through hole: Micro-medium hole design, the middle hole is only 5mm.
2. 360-degree unlimited rotation: While ensuring rotation, it can achieve stable transmission of current, control signals, network cable data, and servo motor signals.
3. Military-grade super-hard gold plating: The contact points are treated with military-grade super-hard gold plating to ensure extremely low resistance fluctuations and long working life.
4. It has the advantages of low torque, low loss, and low electrical noise.
5. Integrated design: One-piece injection molding, better product strength and toughness.



GK0522-2PS through-hole slip ring Performance parameters


Parameter name

Parameter Value

Dielectric strength

300VCA@50Hz,60s

Insulation resistance

≥500MΩ/300VDC

Dynamic resistance change value

＜10mΩ

Rated voltage

0～240VDC/VAC

Wire Specifications

26AWG Teflon wire

Wire length

Rotor 250mm; stator 250mm (reference value, specific size depends on the actual specifications)

Operating temperature

-20℃～+80℃

Operating humidity

0～85%RH

Protection level

IP51

Shell material

Engineering Plastics

Rotational torque

0.05N.m,+0.01N.m/6-way

Service life

2 million rpm



GK0522-2PS through-hole slip ring Product Dimensions

2 Wire Slip Ring 2A ID 5mm OD 22mm Through Hole Slip Ring 360 Degree Rotation

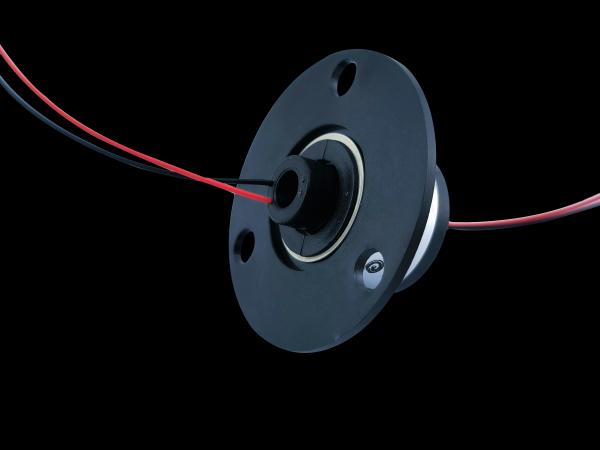

GK0522-2PS through-hole slip ring Product images

2 Wire Slip Ring 2A ID 5mm OD 22mm Through Hole Slip Ring 360 Degree Rotation

2 Wire Slip Ring 2A ID 5mm OD 22mm Through Hole Slip Ring 360 Degree Rotation



GK0522-2PS through-hole slip ring application

1. Wind power generation: connecting the rotating cabin (generator, control system) with the fixed tower (power grid, control system)
2. Industrial automation/robots: rotating worktable/indexing plate, robot joints
3. Medical imaging equipment: CT scanner, X-ray machine (rotating C-arm)
4. Packaging machinery/filling equipment: power supply and signal control of filling head and labeling head
5. Test equipment: such as turntable test, centrifugal test, etc.
6. Security monitoring: high-speed dome camera, etc.
