Specifications
Brand Name :
GUREN
Model Number :
FT30-1P10-A6464
Certification :
ISO9001.CE.ROHS
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Outer Diameter :
64mm
Inner Diameter :
30mm
Contact material :
Precious metals
Single channel current :
10A
Circuit :
1-way
Speed :
0-320rpm
Description
1-Channel 10A Single-Channel Slip Ring Electrical Connector
This single-channel, 1-way, 10A electrical slip ring features an independently separated rotor and stator structure that optimizes installation space. The product casing is constructed from PBT engineering plastic and integrates precious metal contact materials with AWG17# Teflon wires. With an overall height of only 20mm, it supports high-speed rotation up to 320 RPM, providing a stable and reliable rotating power supply solution for space-constrained equipment.
Key Features
  • 10A High-Current Transmission: Single channel supports continuous current of 10A, meeting the needs of high-power loads such as motors and heating elements
  • Independent and Separated Structure: Innovative split design allows for flexible installation and significantly saves space within equipment
  • Ultra-Thin and Compact Design: Overall height of 20mm is ideal for applications with strict limitations on axial dimensions
  • High-Speed and Stable Operation: Supports rotation up to 320 RPM, balancing high-current transmission with dynamic performance
Performance Parameters
Parameter Value
Dielectric strength 500VCA@50Hz,60s
Insulation resistance ≥1000MΩ/500VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～220VDC/VAC
Wire Specifications AWG17# Teflon wire
Wire length Rotor 200mm; stator 200mm (reference value)
Operating temperature -30℃～+70℃
Operating humidity 0～85%RH
Shell material Engineering Plastics
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 2 million rpm

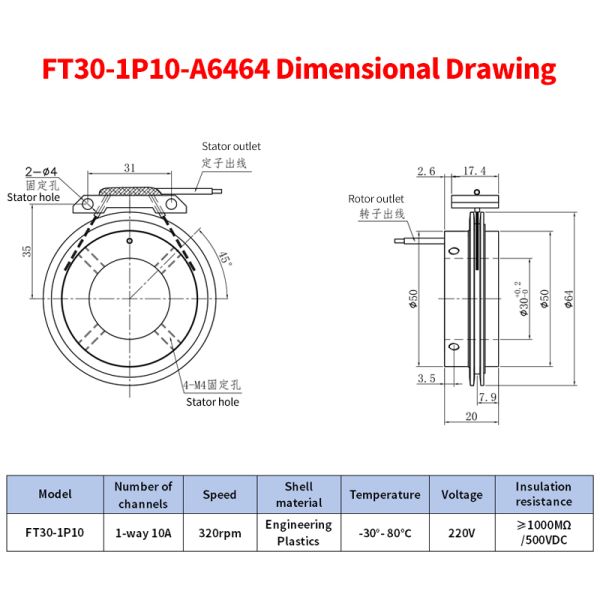

Product Dimensions
10A High-Current Through Bore Electrical Slip Ring with Independent Rotor and Stator Structure and Ultra-Thin 20mm Design
Applications
  • High-speed rotating equipment: Power transmission for centrifuges and mixer main shafts
  • Automated equipment: Power supply for high-power rotating lighting fixtures and industrial lens heating rings
  • Testing equipment: Rotating test fixtures requiring separate high-current power supply
  • Packaging and filling machinery: Power transmission for high-power capping heads and sealing machines
Frequently Asked Questions
Q1: What is the peak current capacity of this slip ring?
The product's rated continuous operating current is 10A. The peak current capacity can be evaluated based on the specific application scenario. We recommend consulting our technical support for more detailed data.
Q2: Does the independent, separate structure require high installation precision?
The product design has taken installation tolerances into account and provides a reasonable alignment allowance. We recommend referring to the provided installation guide and using simple tooling to ensure quick and accurate connection.
Q3: What are the advantages of a PBT housing compared to a metal housing?
PBT material offers excellent electrical insulation, heat resistance, and dimensional stability. It is also lighter in weight and effectively avoids the short-circuit risks that a metal housing might present, making it particularly suitable for compact applications requiring high insulation.
