35.2mm Length High Frequency Slip Ring DC-18GHz IP40 Protection
35.2mm Length High Frequency Slip Ring DC-18GHz IP40 Protection
Specifications
Brand Name :
GuRen
Model Number :
GPGR-101
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/A,T/T
Supply Ability :
1K units/week
Delivery Time :
4 weeks ARO
Packaging Details :
Standard/On Request
Interface Type :
SMA-F(50Ω)
Operating frequency :
DC-18GHz
Number of channels :
Single Channel
Rotation speed :
0~300rpm
Protection level :
IP40

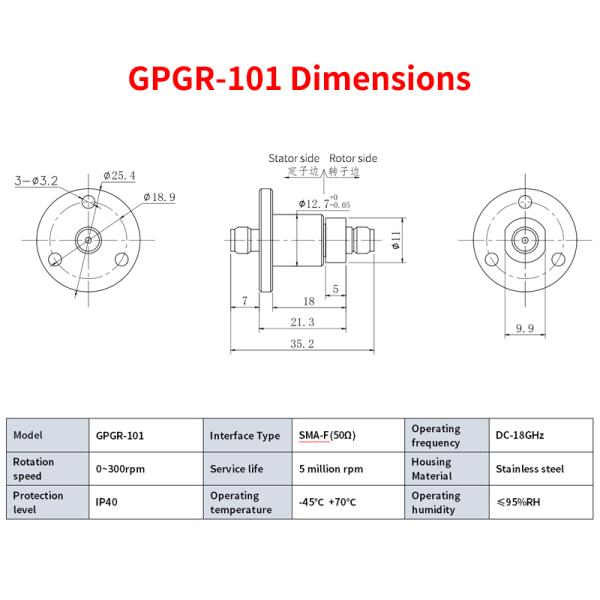

length :
35.2mm
Description

GPGR-101 high-definition microwave high-frequency slip ring has an operating frequency of up to DC-40GHz and has SMA and N-type interfaces. It has excellent electrical performance parameters and a compact structure, making it easy to integrate with electrical slip rings.

GPGR-101 high-definition microwave high-frequency slip ring Key Features

1. Efficient and stable transmission: Single module RF channel 18GHz, low technical loss.
2. Industrial-grade stability: Gold-on-gold contacts + stainless steel housing, maximum VSWR 0.05 at 300 rpm.
3. Fully compatible design: Standard SMA and N-type connectors, compatible with industrial robots and wind turbine pitch control systems.

GPGR-101 high-definition microwave high-frequency slip ring Technical Specifications

Parameter name

Parameter Value

Interface Type

SMA-F(50Ω)

Operating frequency

DC-18GHz

Maximum voltage standing wave ratio

1.3@DC-10GHz；

1.4@10-18GHz

Maximum fluctuation value of VSWR

0.05

Speed

300rpm

Maximum insertion loss

0.3dB@DC-10GHz；0.4dB@10-18GHz

Insertion loss maximum fluctuation value

0.05dB

Peak power maximum

300W

Average power maximum

200W@1GHz；30W@18GHz

Maximum phase change

1°

Service life

5 million rpm

GPGR-101 high-definition microwave high-frequency slip ring Applications
Essential for high-frequency dynamic transmission systems in:
  • Rotating radar antennas (military, meteorological, air traffic control)
  • Satellite communication tracking (ground stations, intersatellite links)
  • Medical imaging equipment (CT, MRI, semiconductor testing)
  • Scientific research (antenna/RCS measurement, electronic warfare simulation)
