300rpm High Frequency Slip Ring 360 Degree Rotation Microwave Signal Slip Ring
300rpm High Frequency Slip Ring 360 Degree Rotation Microwave Signal Slip Ring
Specifications
Brand Name :
GuRen
Model Number :
CP-1P18
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/A,T/T
Supply Ability :
1K units/week
Delivery Time :
4 weeks ARO
Packaging Details :
Standard/On Request
Interface Type :
SMA-F(50Ω)
Operating frequency :
DC-18GHz
Number of channels :
Single Channel
Rotation speed :
300rpm
Protection level :
IP40
length :
48mm
Description
High Frequency Slip Ring - 360° Rotation for HD Video, RF & Microwave Signals
GuRen Technology's high-definition microwave coaxial RF rotary joint (high-frequency slip ring) enables continuous 360° rotation transmission for radar systems, satellite antennas, and advanced equipment.
Key Features
  • High-definition signal transmission: Supports HD video, RF, microwave, and high-speed serial digital/analog signals
  • Flexible configuration: Single-channel or multi-channel high-frequency signal transmission options
  • Integrated transmission: Combines high-frequency signals with low-voltage control (24V), communication (RS485, CAN), power, and fluid media
  • RF coaxial design: 50Ω characteristic impedance structure maintains signal integrity
  • Custom connectors: Standard RF coaxial interfaces (SMA, BNC, TNC) or specified custom types
  • Cable options: Compatible with RG178, RG316, RG174 and other coaxial cable specifications
Technical Specifications
Parameter Value
Interface Type SMA-F(50Ω)
Operating Frequency DC-18GHz
Maximum VSWR 1.3@DC-10GHz
1.4@10-18GHz
VSWR Fluctuation 0.05
Rotation Speed 300rpm
Maximum Insertion Loss 0.3dB@DC-10GHz
0.4dB@10-18GHz
Insertion Loss Fluctuation 0.05dBm
Peak Power 3KW
Average Power 200W@1GHz
30W@18GHz
Maximum Phase Change 1°
Service Life 10 million rotations

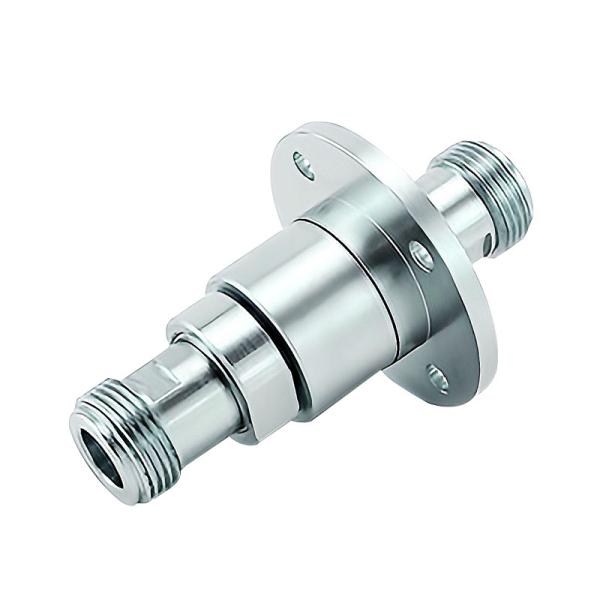

Product Image
300rpm High Frequency Slip Ring 360 Degree Rotation Microwave Signal Slip Ring
Applications
Essential for high-frequency dynamic transmission systems in:
  • Rotating radar antennas (military, meteorological, air traffic control)
  • Satellite communication tracking (ground stations, intersatellite links)
  • Medical imaging equipment (CT, MRI, semiconductor testing)
  • Scientific research (antenna/RCS measurement, electronic warfare simulation)
