56-way combined slip ring 2 Gigabit Ethernet channels IP41 protection
56-way combined slip ring 2 Gigabit Ethernet channels IP41 protection
56-way combined slip ring 2 Gigabit Ethernet channels IP41 protection
56-way combined slip ring 2 Gigabit Ethernet channels IP41 protection
56-way combined slip ring 2 Gigabit Ethernet channels IP41 protection
56-way combined slip ring 2 Gigabit Ethernet channels IP41 protection
56-way combined slip ring 2 Gigabit Ethernet channels IP41 protection
56-way combined slip ring 2 Gigabit Ethernet channels IP41 protection
Specifications
Brand Name :
GuRen
Model Number :
WX25-56P-GRA0389
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Rotation speed :
200rpm
Shell material :
Aluminum Alloy
Protection level :
IP41
Network Channel :
2 group
electrical pathways :
38-way power
Wire length :
500mm
Description
Product Description

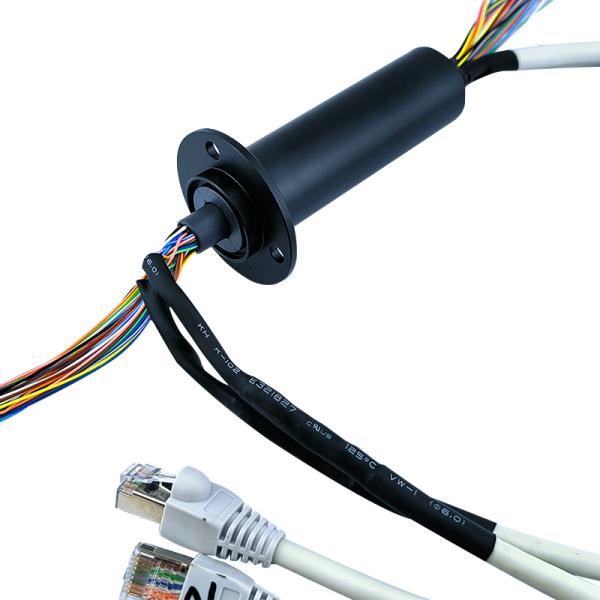

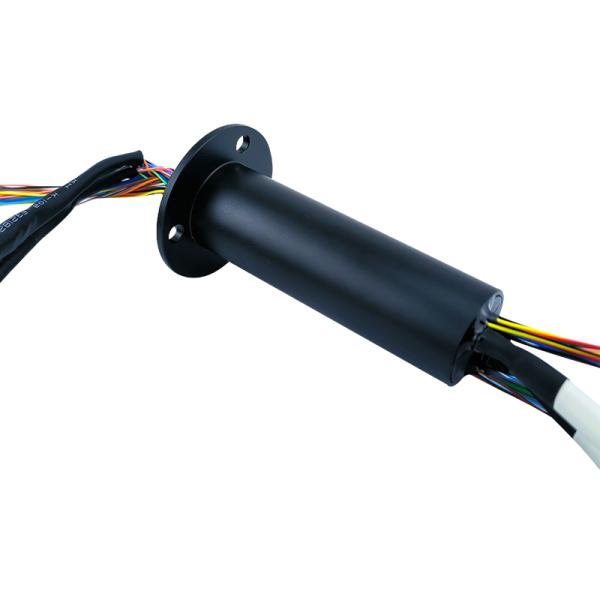

The 56-way network slip ring is designed with two Gigabit Ethernet channels and 38 2A electrical channels. The slip ring adopts a flange design and is injection molded in one piece. The outer diameter is 25mm. The slip ring is designed to rotate at 200 rpm and can be used at 240V voltage.
Key Features

1. Featuring an ultra-compact design with an outer diameter of only 25mm, it integrates 56 signal and power channels within a minimal footprint with exceptionally high internal integration.
2. It provides two Gigabit Ethernet channels, fully compliant with the IEEE 802.3 standard, supporting high-speed, lossless data transmission. Optimized shielding and contact design significantly enhance signal integrity, ensuring low latency, high stability, and strong interference resistance for Gigabit network transmission.
3. It provides 38 power channels, each supporting 2A current output, capable of providing stable and reliable low- to medium-power power to multiple devices simultaneously. All circuits support a maximum operating voltage of 240V, meeting the power requirements of most industrial equipment.
4. The product's housing is injection molded for excellent corrosion and vibration resistance, significantly enhancing long-term reliability in harsh environments.

Technical Specifications
Ethernet 2 (1000M) Connector Type RJ45 male connector at both ends (female connector optional)
Mechanical Specifications Electrical Specifications
Parameter Value Parameter Value
Speed 200rpm Voltage 240V AC/VDC
Working life 5 million rpm Insulation resistance ≥500MΩ/300VDC
Operating humidity 0～85%RH Wire Specifications AWG#28 tinned Teflon wire
Operating temperature -30°C to 70°C Dielectric strength 300VAC@50Hz,60S
Contact material Precious Metals Dynamic resistance <0.01Ω
Shell material Aluminum Alloy Electrical noise <10 milliohms
Rotation torque 0.01N.m+0.03N.m/6 channels Wire length Standard length 500mm
Application Scenarios
Ideal for Industry 4.0 automation (smart factories, CNC machining), security systems (panoramic monitoring), renewable energy (wind/solar power), and medical/scientific equipment requiring reliable high-speed data transmission during rotation.
