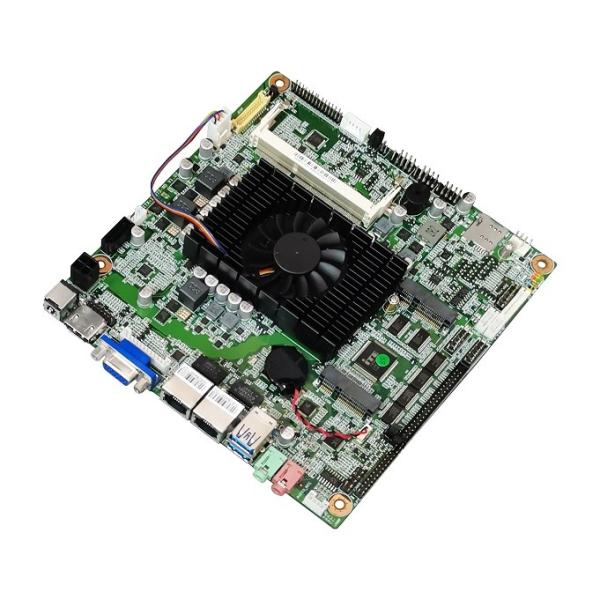

Model Name

TMITX-IU67S-WB VER:1.01

processor

Intel Skylake-U and Kabylake-U series processors.

cpu

I5-6360U

memory

technology

Single channel DDR3L 1600MHz

maximum capacity

8GB

Memory slot

1*204Pin DDR3 SO-DIMM(Non-ECC)

Post I/O

DC interface

1 standard 2.5mm DC power socket; 1 2x2 ATX power socket

HDMI

Standard D socket, supporting HDMI1.2, maximum resolution: 2560*1600@60Hz.

VGA

Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz.

Ethernet

1 or 2 gigabit network cards (LAN1 and USB2.0 are laid together), RTL8111F network card chip.

Audio

1 (Line-out, Mic-in)

USB port

2 USB 3.0

Internal connector

USB port

5 (one FUSB can transfer out two USB2.0 interfaces);

serial port

6 (serial ports all support RS232 mode, among which COM1 and COM2 support RS485 mode)

parallel port

1 2*13Pin pin

Audio

1 2*5Pin pin (Mic-in, Line-out)

power amplifier

1*4Pin 2.0mm white socket, which can support up to two 5W2 speakers.

JHDMI interface

2*8Pin pin, supporting the maximum resolution of 2560*1600@60H(HDMI and JHDMI can only be selected).

JVGA

1*12Pin pin, the maximum supported resolution is 2560 * 1600 @ 60hz (VGA and JVGA can only be selected).

LVDS interface

Support single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz(LVDS and EDP can only be selected).

EDP interface

The maximum resolution can reach 3840*2160@60Hz(LVDS and EDP can only be selected).

Mini-PCIe

1 full-length card MiniPCIe slot, supporting WIFI, 4G

MSATA

1 full-length card MiniPCIe slot, supporting SSD hard disk.

serial ata

1 7PIN SATA interface, supporting SATA 3.0

PWR interface

1 standard 2x2PIN power socket, also can support 2PIN Phoenix terminal.

Watchdog

output

system reset

space

Programmable for 1-255 seconds

power consumption

Maximum power

Standby power consumption: 12W Full load power consumption: 66W

environment

temperature range

working environment

Storage environment

Temperature: 10 ~ 60℃ Humidity: 5%~95%

Temperature: -40~85℃ Humidity: 5%~95%

Physical size

measure

170 mm x 170 mm
