Specifications
Model Number :
GW3-WB67D-V1.0
Packaging Details :
Carton box
Delivery Time :
5-8 working Days
Supply Ability :
10000pcs/Day
MQO :
20
Description

Industrial Motherboard for Robotics 3.5 mini itx motherboard Industrial IoT (IIoT) I5-7200U LVDS EDP Intel 6th 7th Core I3 I5 I7 Dual Processor Embossed Industrial Mini Itx Motherboard

Features (product features)

▲ Support Intel Skylake-U-R/Kabylake-U series processors.

▲ Support 1 SATA interface and 1 Mini SATA interface.

▲ Support single channel DDR4 memory, with a maximum support of 16GB 2133MHz.

▲ Support dual-channel ALC887 chip.

▲ Support 6 serial ports

▲ Support 2 USB3.0 and 4 USB2.0.

▲ Support Mini PCIE expansion slot.

▲ Support two RJ45 Gigabit network interfaces.

▲ Support VGA/HDMI/LVDS display interface, and support synchronous three displays.

▲ Support Windows10 32/64 bit operating system and Linux system.

▲ Support DC12V input.

Model Name

GW3-WB67D VER:1.0

processor

Intel Skylake-U-R /Kabylake-U series processors

CPU

For example: I5-6200U, I5-7200U, etc.

memory

technology

Single channel DDR4 2133MHz

maximum capacity

16GB

Memory slot

1*260Pin DDR4 SO-DIMM(Non-ECC)

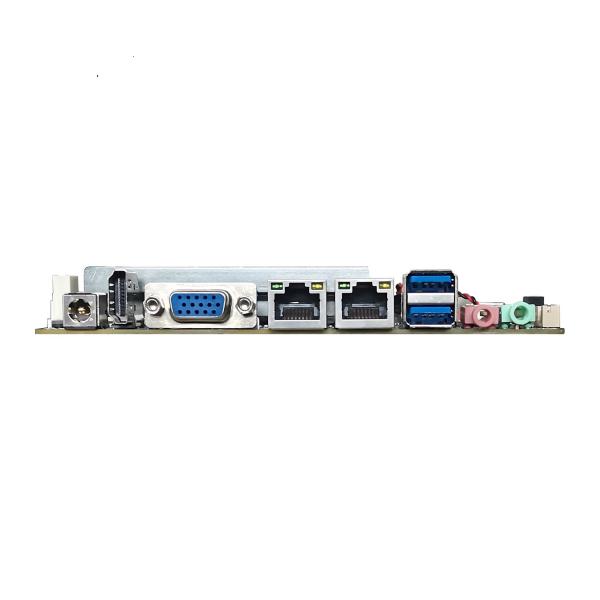

Post I/O

DC interface

1 standard 2.5mm DC12V power socket

HDMI

Standard D socket, supporting HDMI1.4, and the maximum supporting resolution is 4096*2304@24Hz.

VGA

Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz.

Ethernet

2 Gigabit network cards, I211AT network card chip

Audio

1 line-out (MIC)

USB port

2 USB3.0 interfaces

Internal connector

USB port

4 (one FUSB can switch out two USB2.0 interfaces)

serial port

6 (including COM2/COM3 supporting RS232/RS485 mode, COM1 and COM4-COM6 supporting RS232 mode)

Audio

1 2*5Pin pin (Mic-in, Line-out)

power amplifier

1*4Pin 2.0mm white socket, which can support up to two 5W2 speakers.

LVDS interface

Support single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz.

Mini-PCIe

1 MiniPCIe slot, supporting WIFI, 4G module.

MSATA

1 MSATA interface supporting SATA 3.0 speed.

serial ata

1 7PIN SATA interface supporting SATA 3.0 speed.

GPIO

8-way bidirectional 5V

Watchdog

output

system reset

space

Programmable for 1-255 seconds

power consumption

Maximum power

Standby power consumption: 7.9W Full load power consumption: 57.8W

environment

temperature range

working environment

Storage environment

Temperature:-40 ~ 70℃ Humidity: 5%~95%

Temperature: -40~85℃ Humidity: 5%~95%

Physical size

measure

145 mm x 102 mm
